Home >> Jeep >> 2003 >> TJ (CANADA) L6-4.0L >> Repair and Diagnosis >> Locations >> Splice Locations >> Figure 12

Figure 12

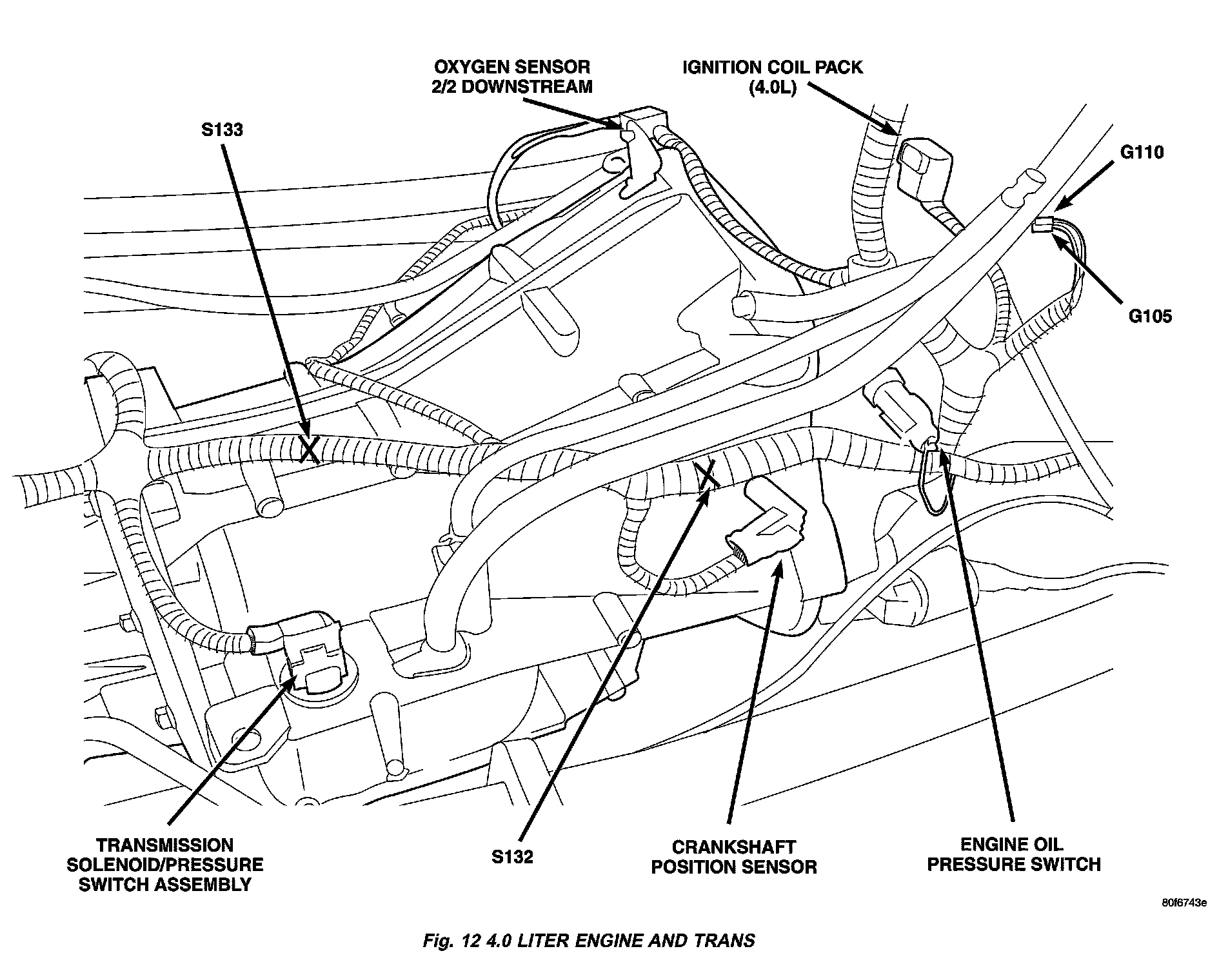

Fig.12 4.0L Engine and Transmission:
