Checking Hard Start (Fuel Delivery System)

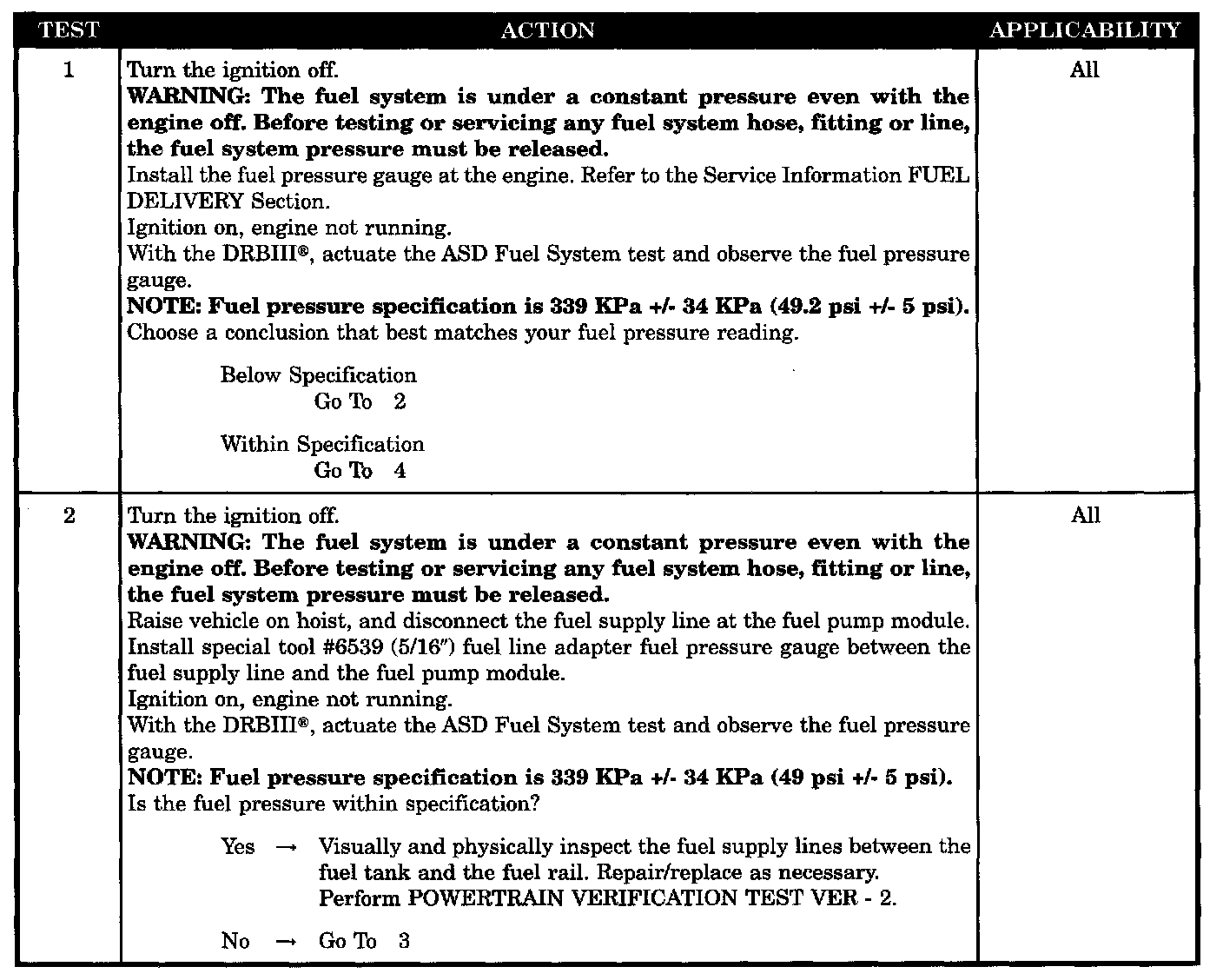

Test 1 - 2:

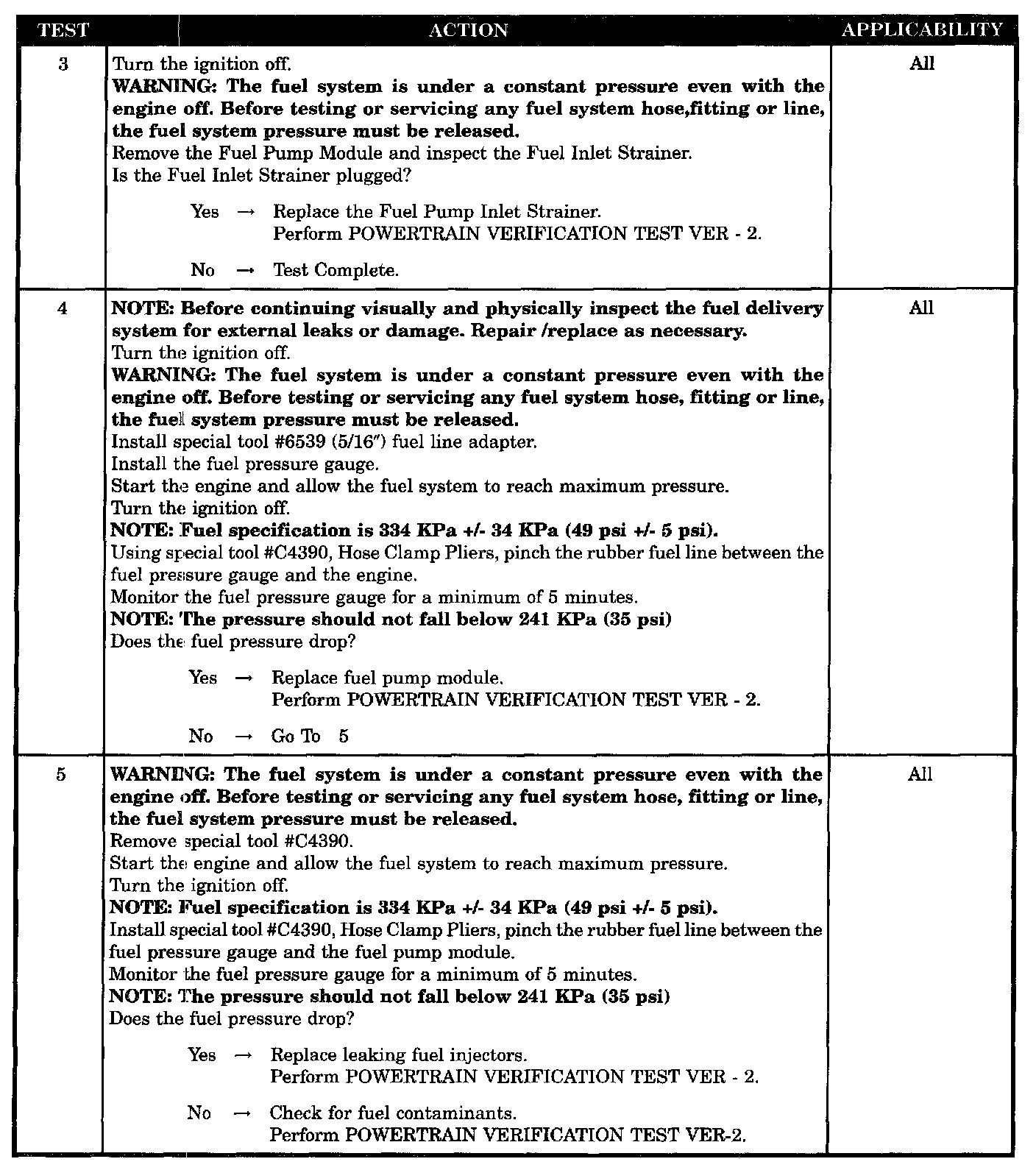

Test 3 - 5:

SYMPTOM
CHECKING HARD START (FUEL DELIVERY SYSTEM)

POSSIBLE CAUSES
- Restricted fuel supply line
- Fuel pump module
- Fuel pump inlet strainer plugged
- Faulty fuel pump module
- Fuel injectors
- Fuel contamination
