VF Odometer Inoperative With Door Open

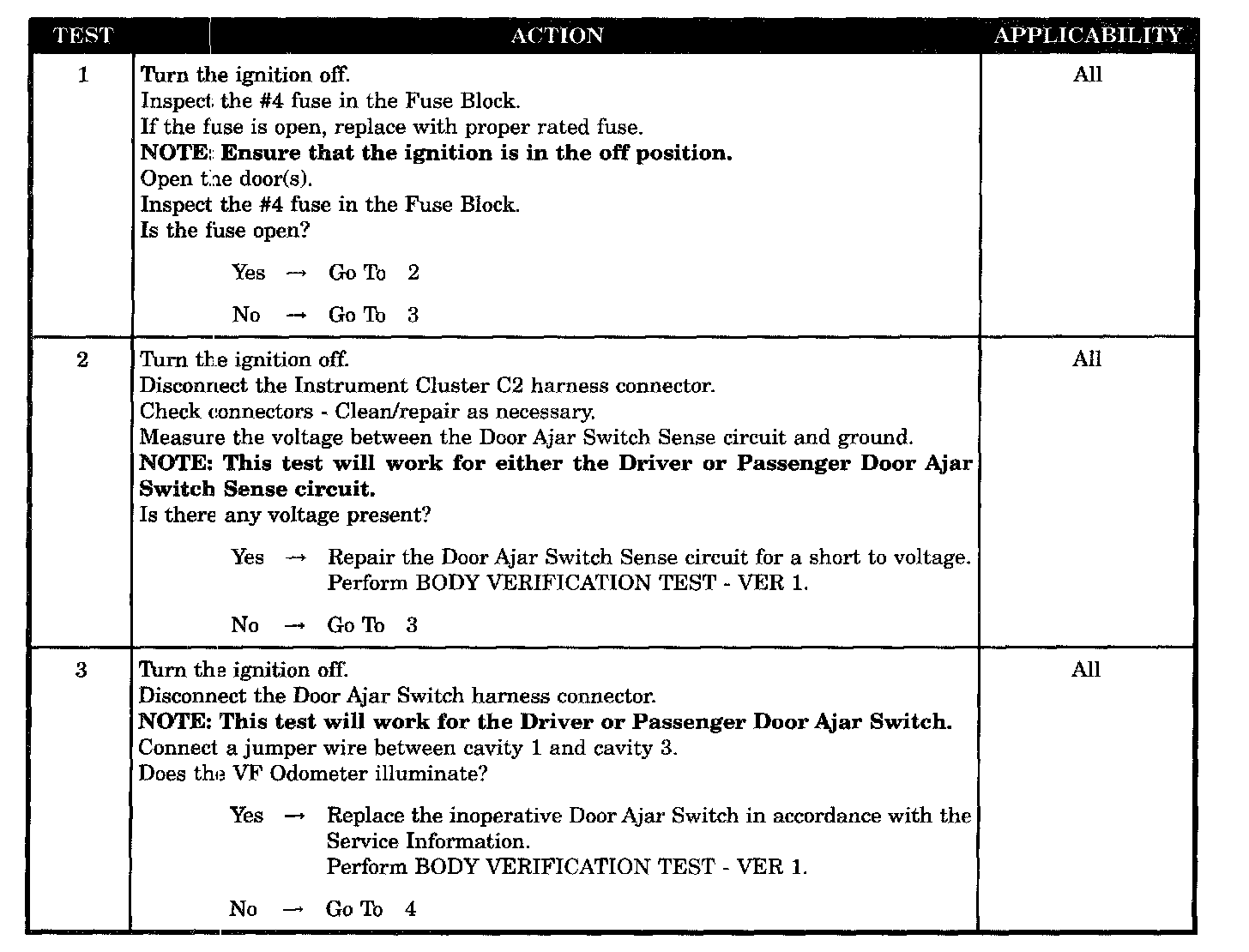

Test 1 - 3:

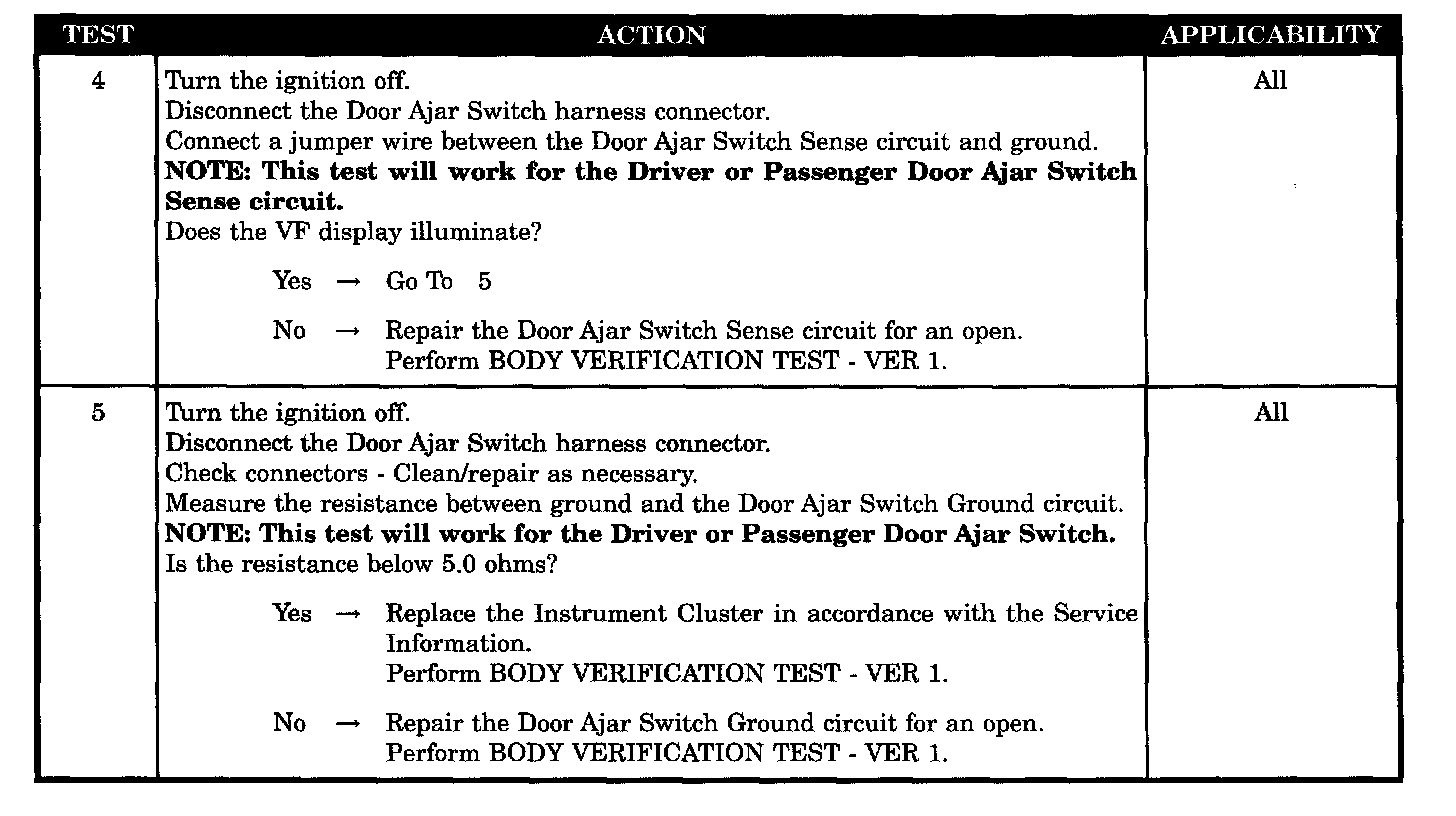

Test 4 - 5:

SYMPTOM
VF ODOMETER INOPERATIVE WITH DOOR OPEN

POSSIBLE CAUSES
- Defective fuse
- Door ajar sense circuit short to voltage
- Ajar switch
- Door ajar switch sense circuit open
- Door ajar switch ground circuit open
- Instrument cluster
