One Gauge Inoperative
One Gauge Inoperative

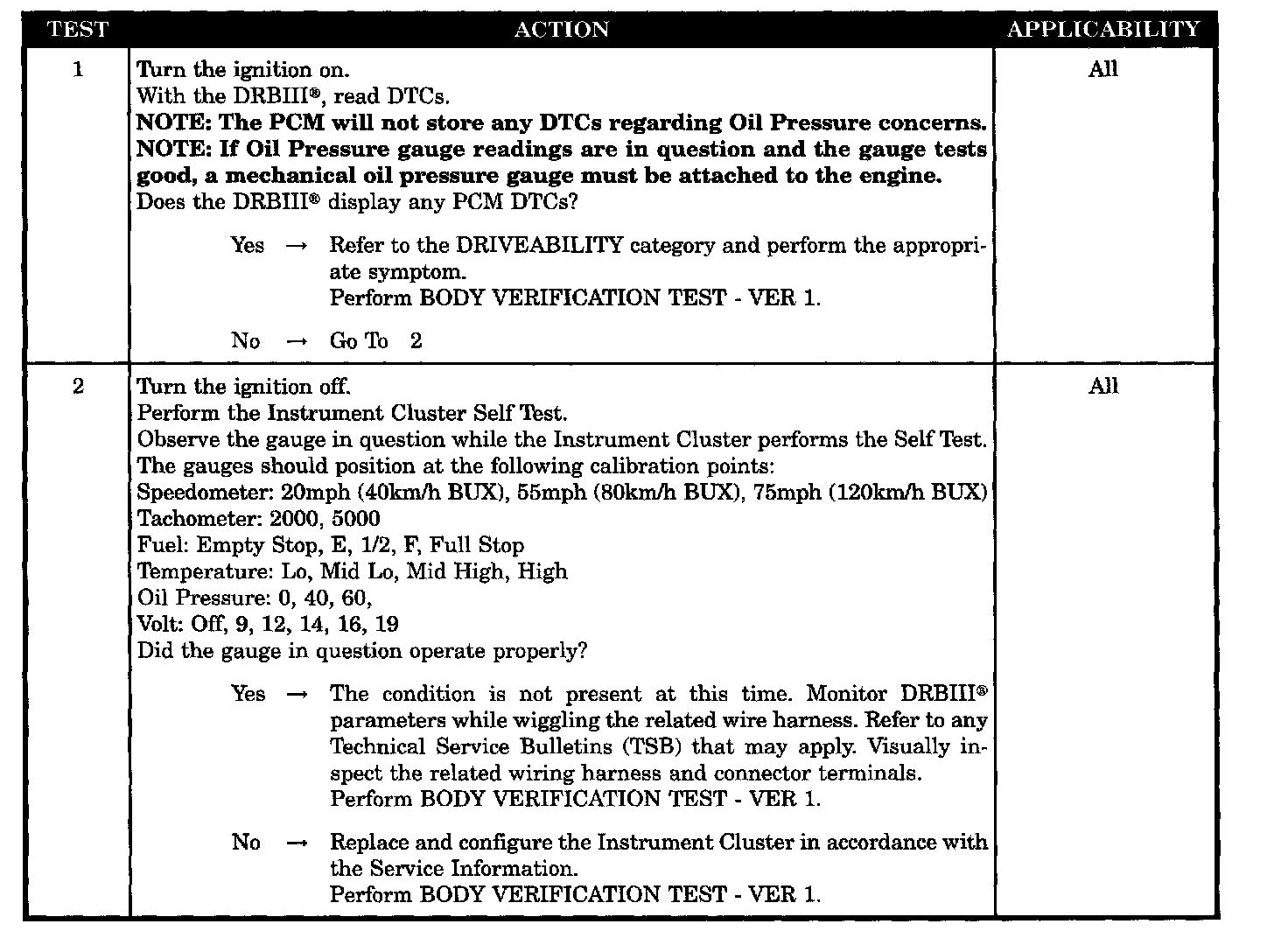

Test 1 - 2:
SYMPTOM
ONE GAUGE INOPERATIVE
POSSIBLE CAUSES
-
Intermittent condition
-
Powertrain control module
DTC present
-
Instrument cluster
