High Beam Indicator Inoperative

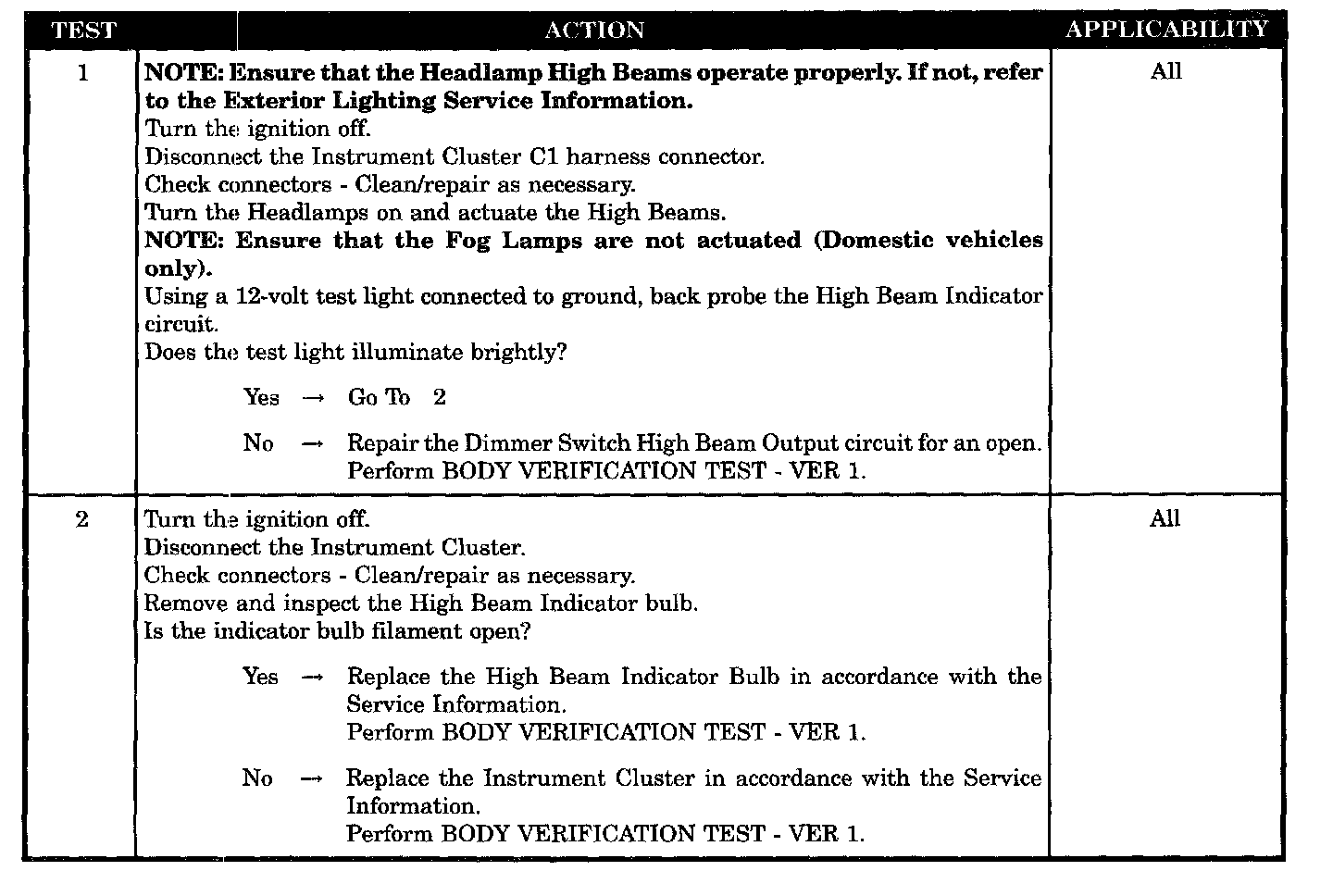

Test 1 - 2:
SYMPTOM
HIGH BEAM INDICATOR INOPERATIVE
POSSIBLE CAUSES
-
High beam indicator circuit open
-
Indicator bulb
-
Instrument cluster
