Home >> Jeep >> 2003 >> TJ (CANADA) L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Motor

Wiper Motor

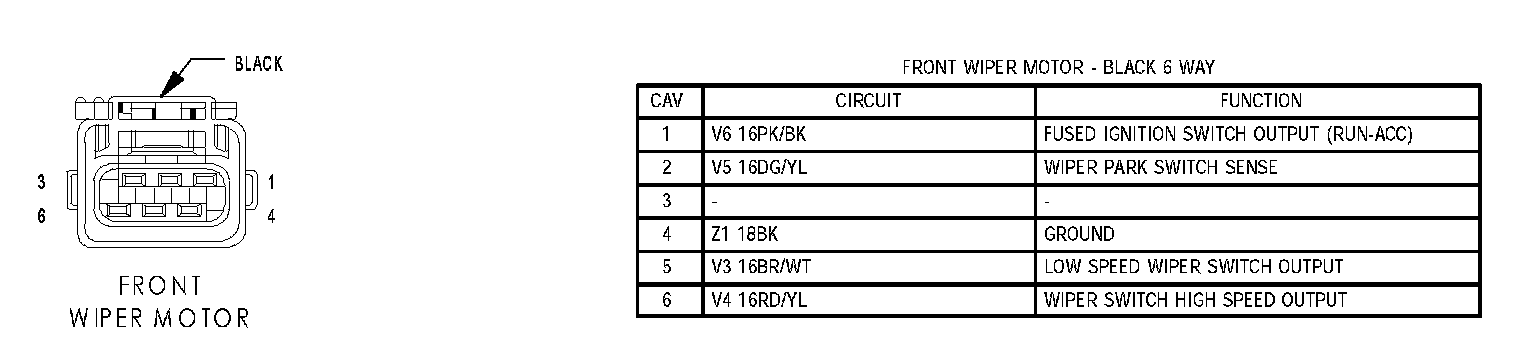

Front Wiper Motor:

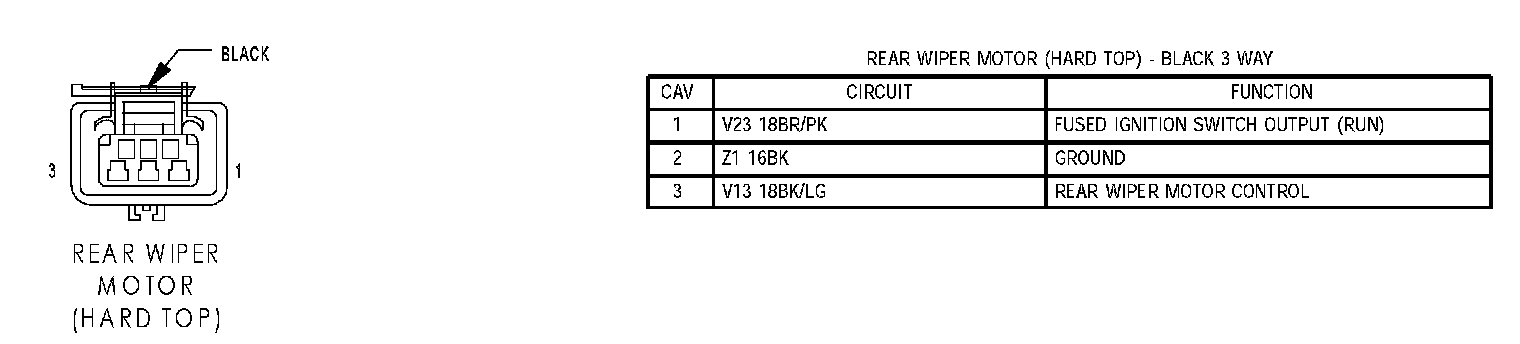

Rear Wiper Motor (Hard Top):
