Speaker
Speaker

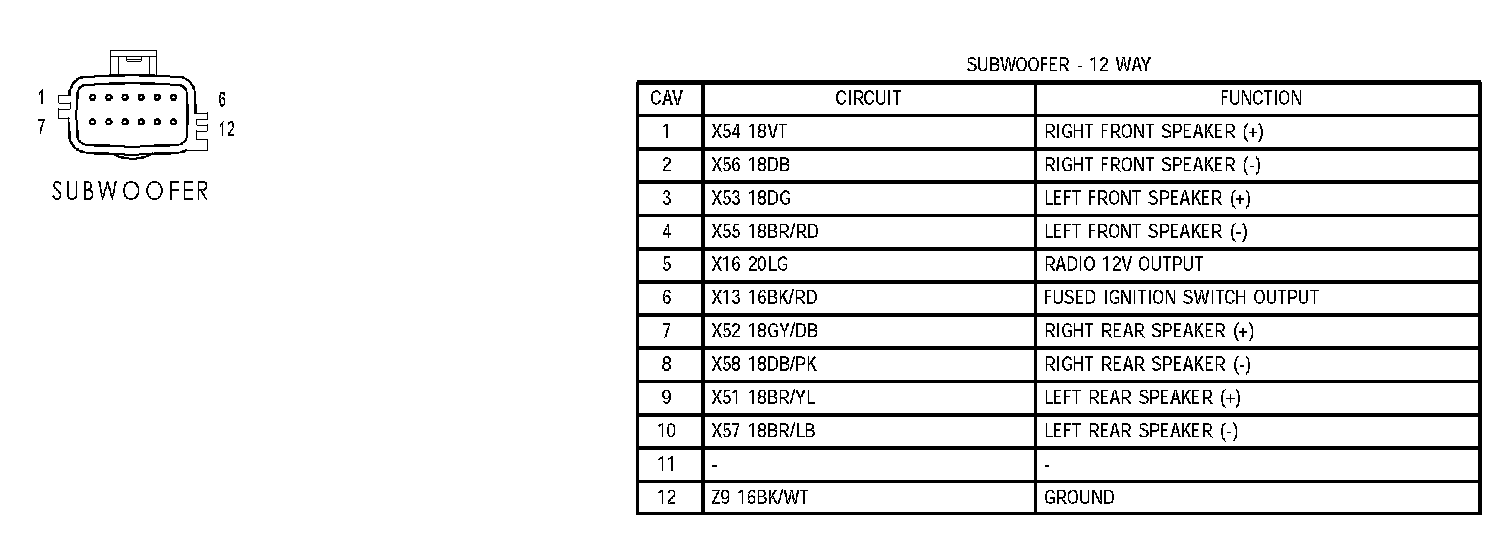

Subwoofer:

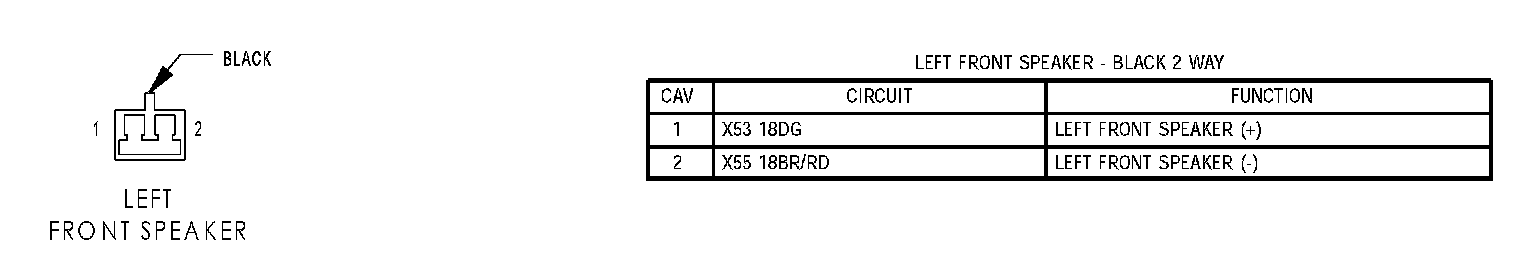

Left Front Speaker:

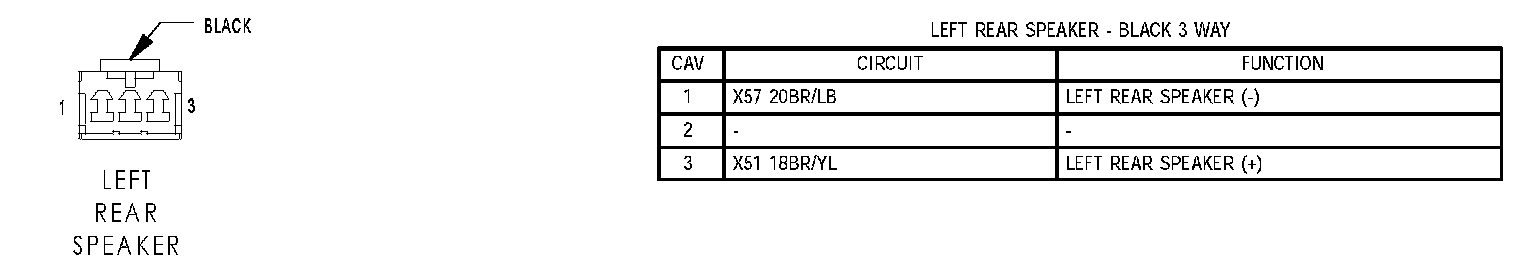

Left Rear Speaker:

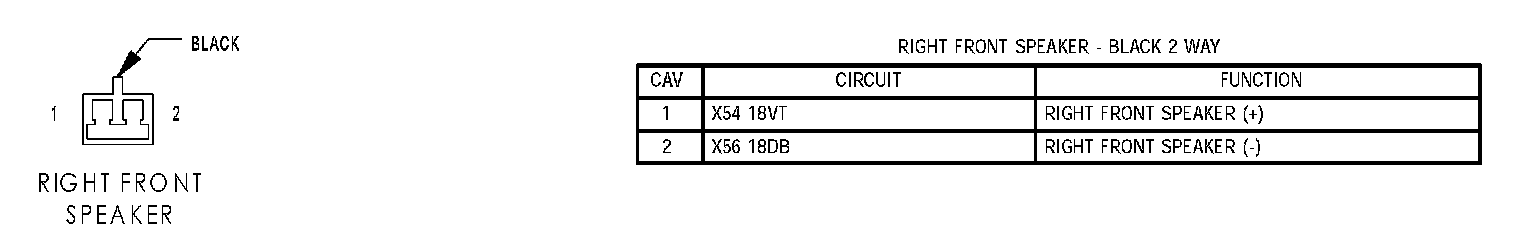

Right Front Speaker:

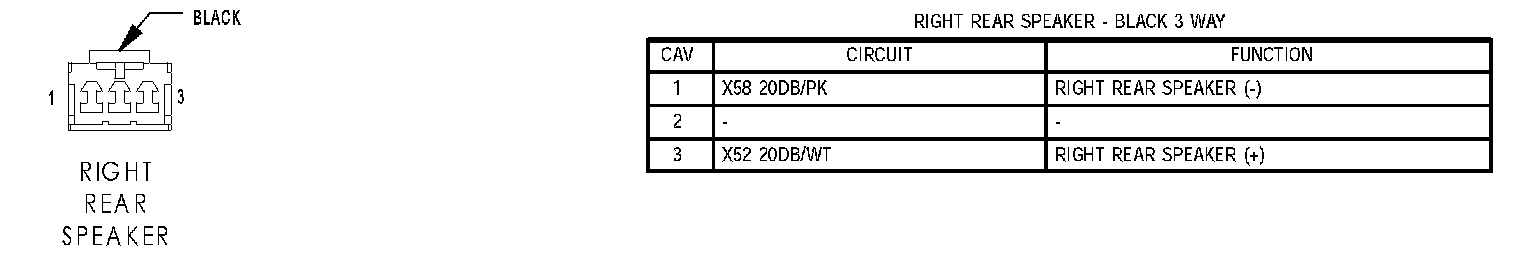

Right Rear Speaker:
