Home >> Jeep >> 2003 >> TJ (CANADA) L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Marker Lamp

Marker Lamp

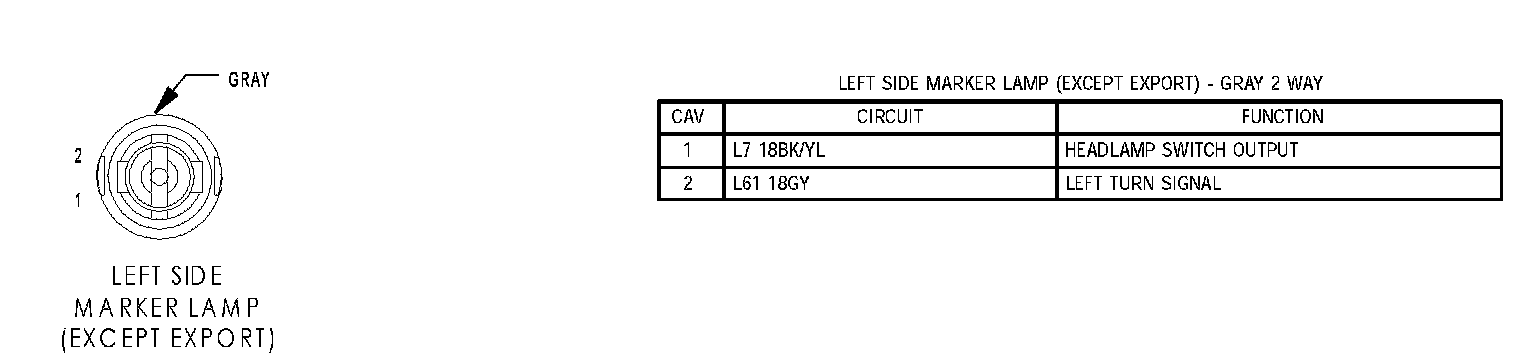

Left Side Marker Lamp (Except Export):

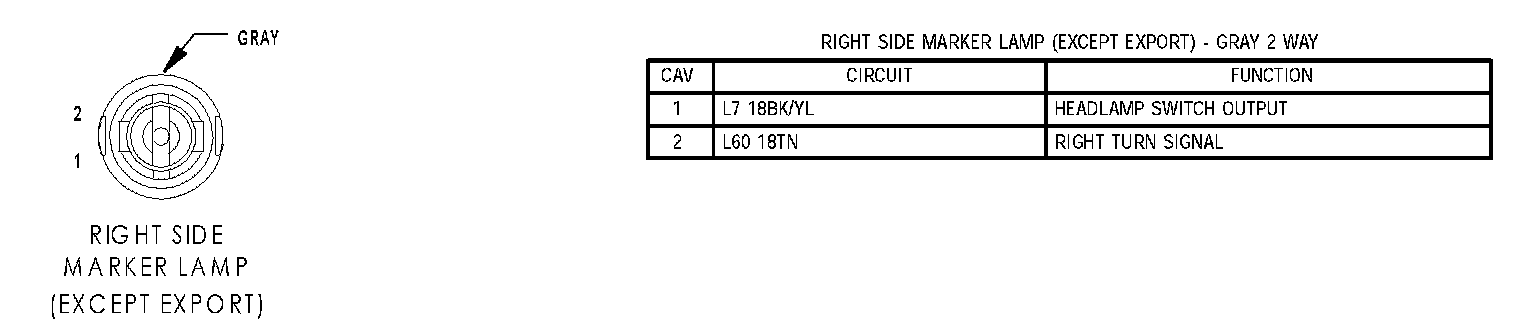

Right Side Marker Lamp (Except Export):
