Home >> Jeep >> 2003 >> TJ (CANADA) L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Switch

Door Switch

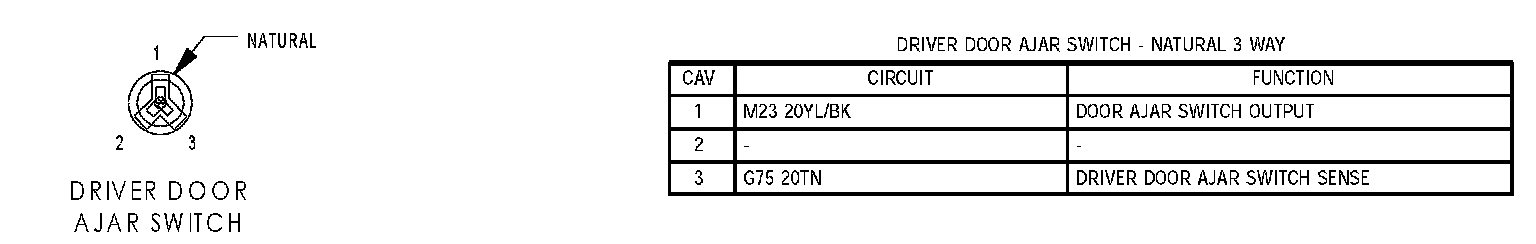

Driver Door Ajar Switch:

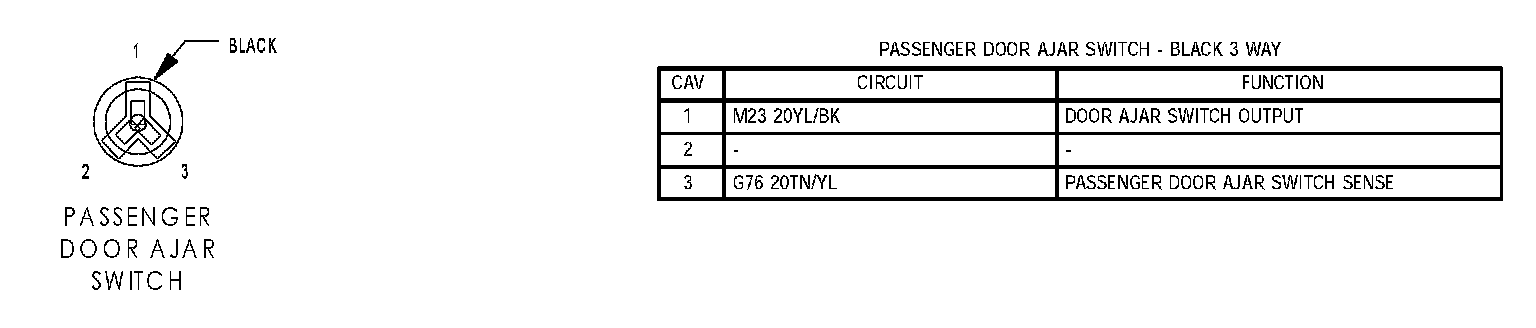

Passenger Door Ajar Switch:
