Engine Control Module

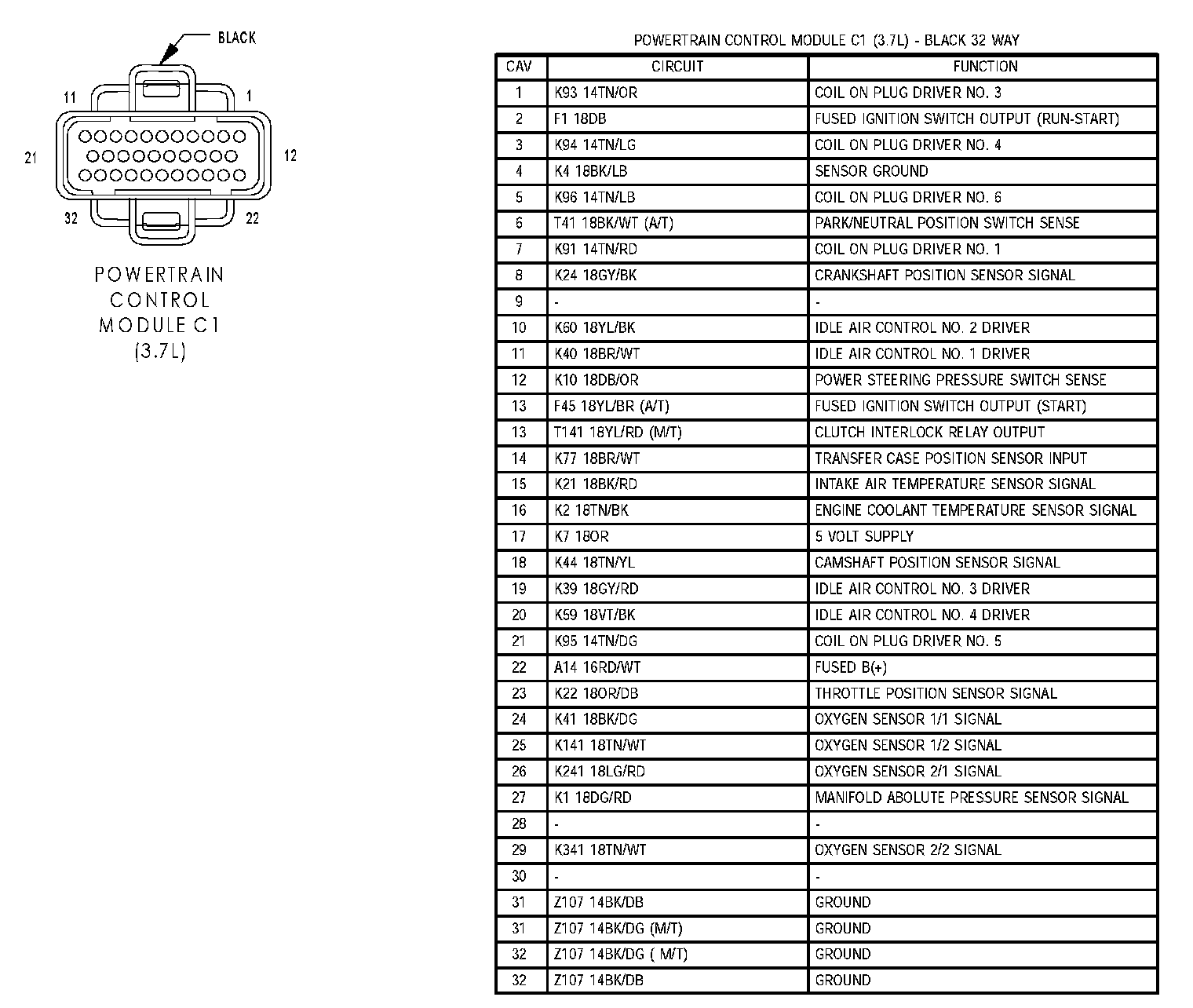

Powertrain Control Module C1 (3.7L):



Powertrain Control Module C2:



Powertrain Control Module C3:
