Connector Locations

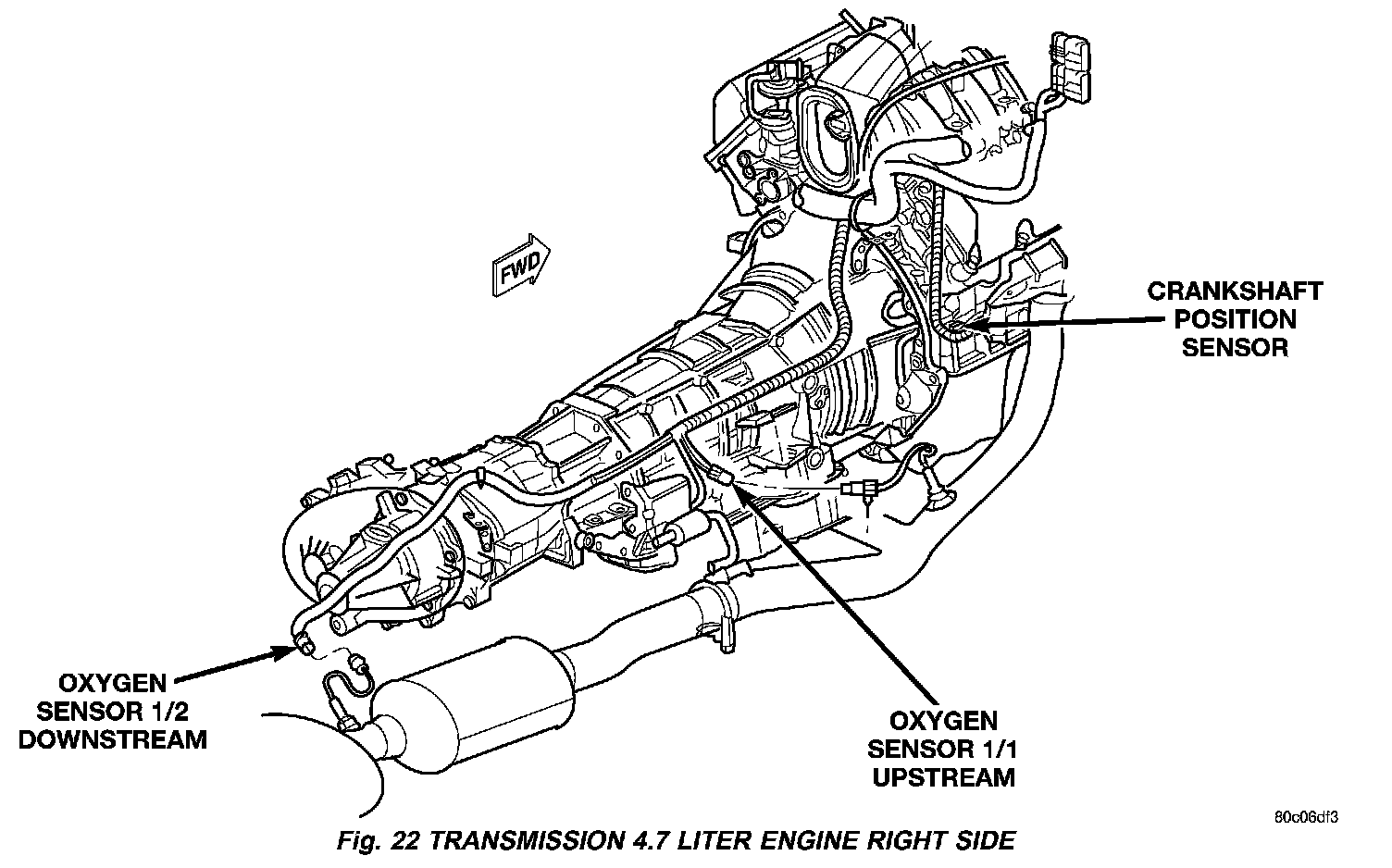

Fig. 22 Transmission 4.7L Engine Right Side:

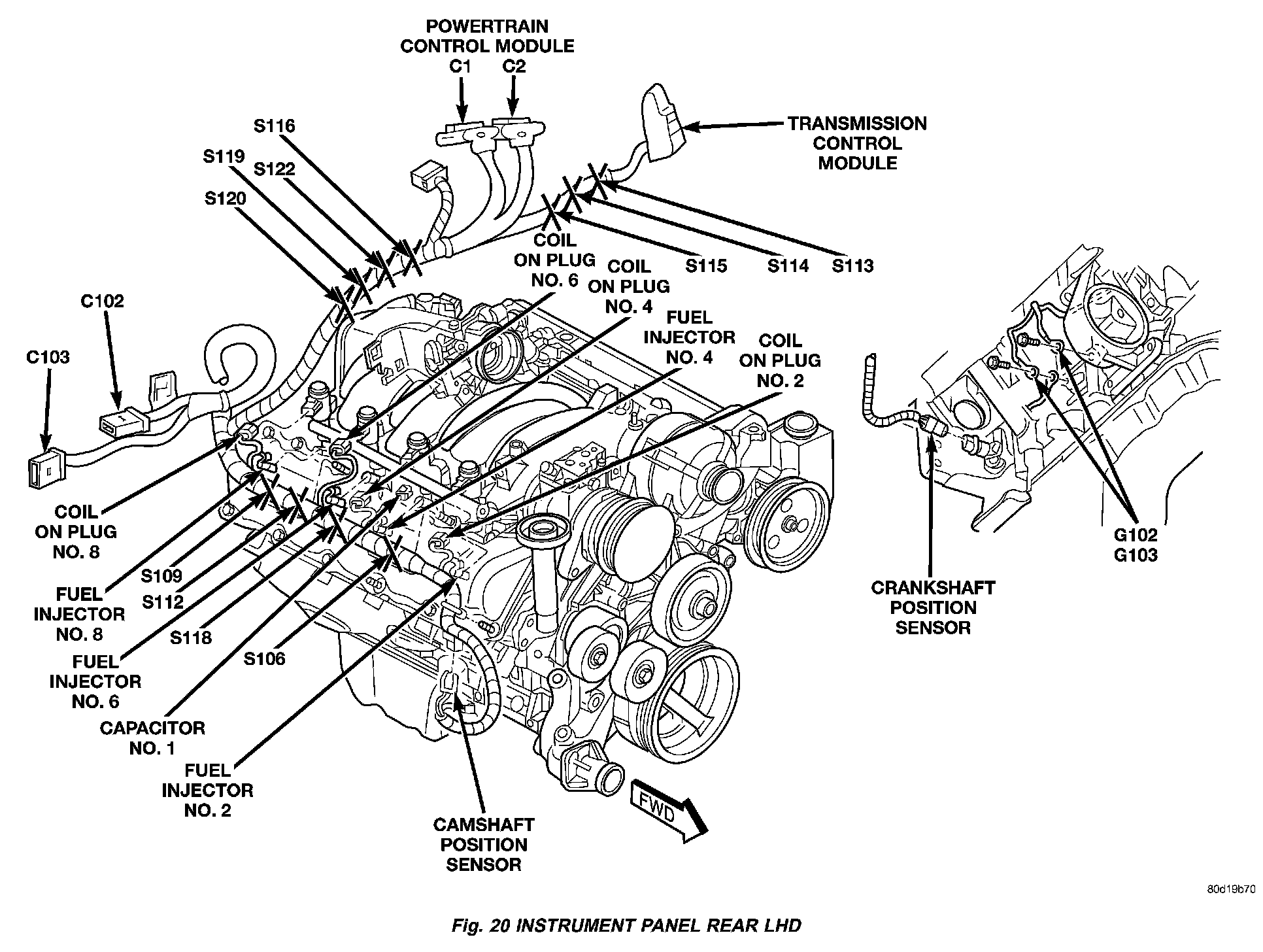

Fig. 20 Instrument Panel Rear LHD:

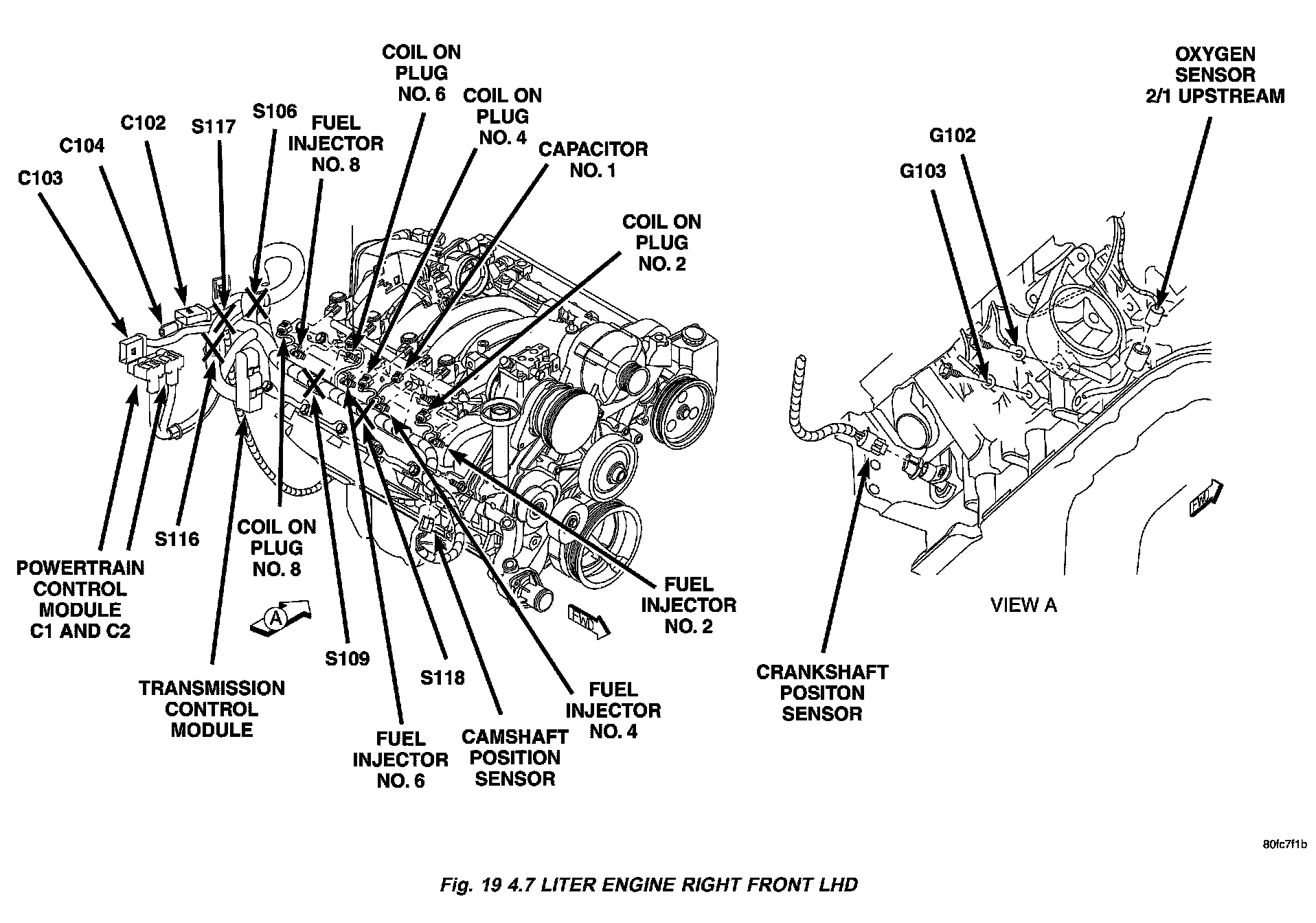

Fig. 19 4.7L Engine Right Front LHD:
