Complete Engine Specifications

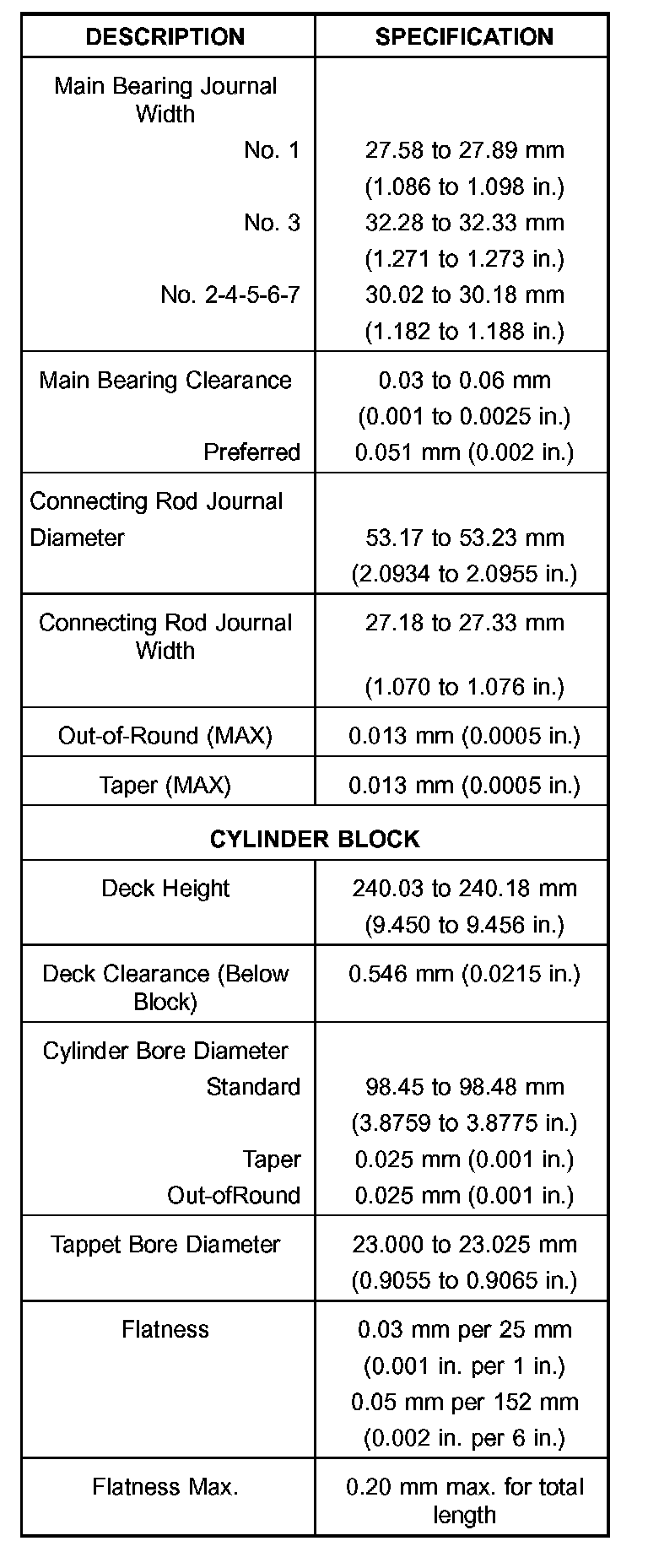

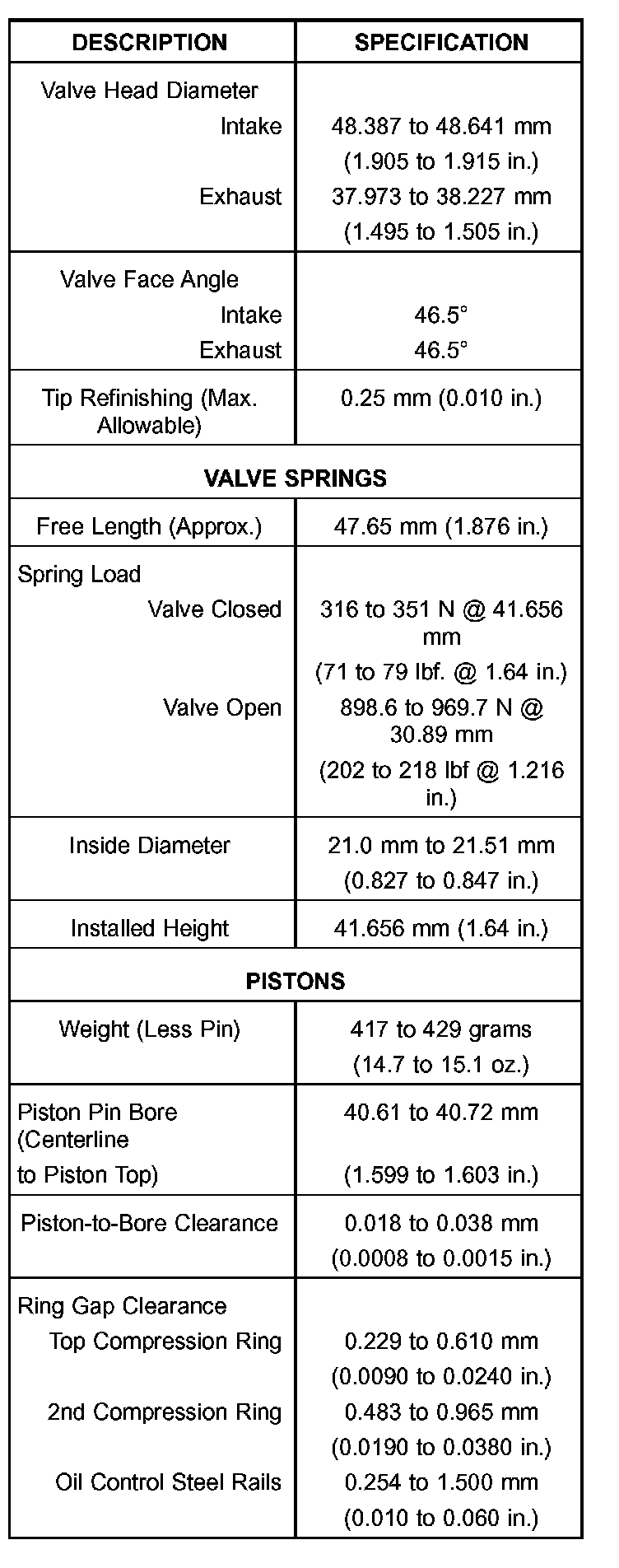

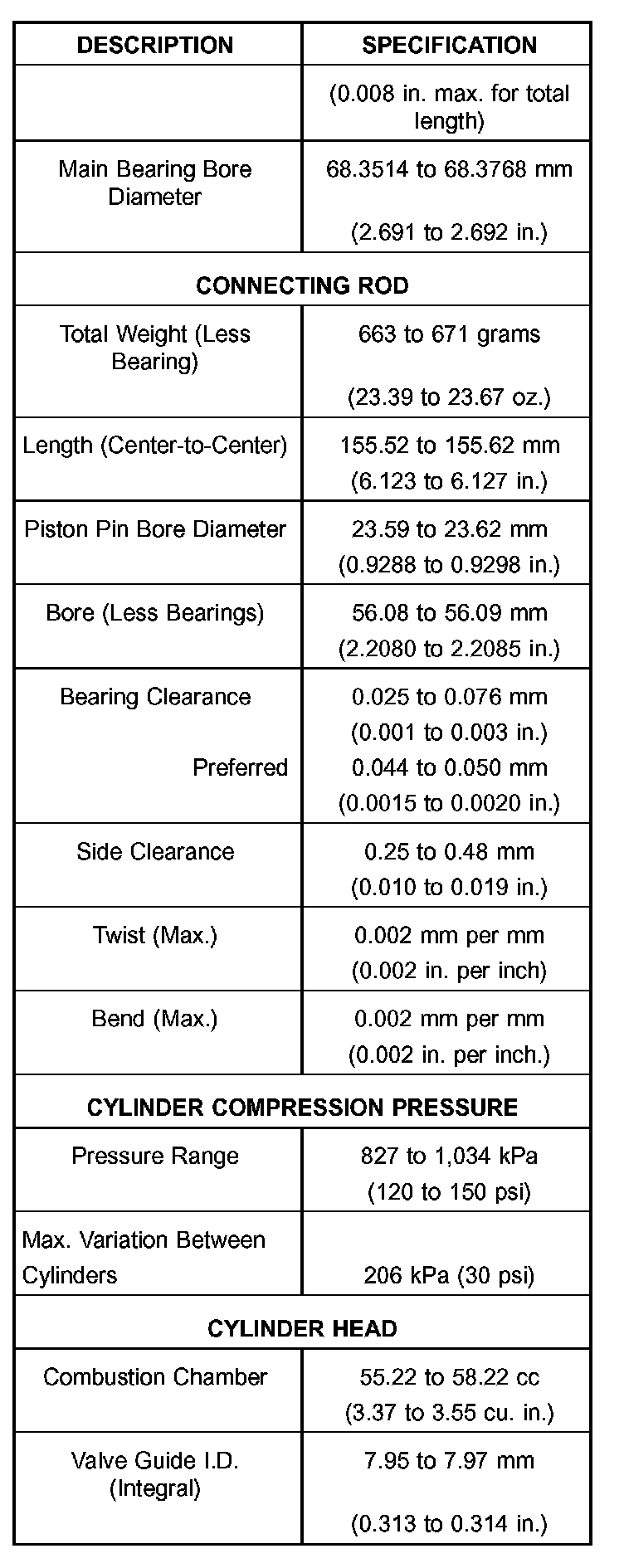

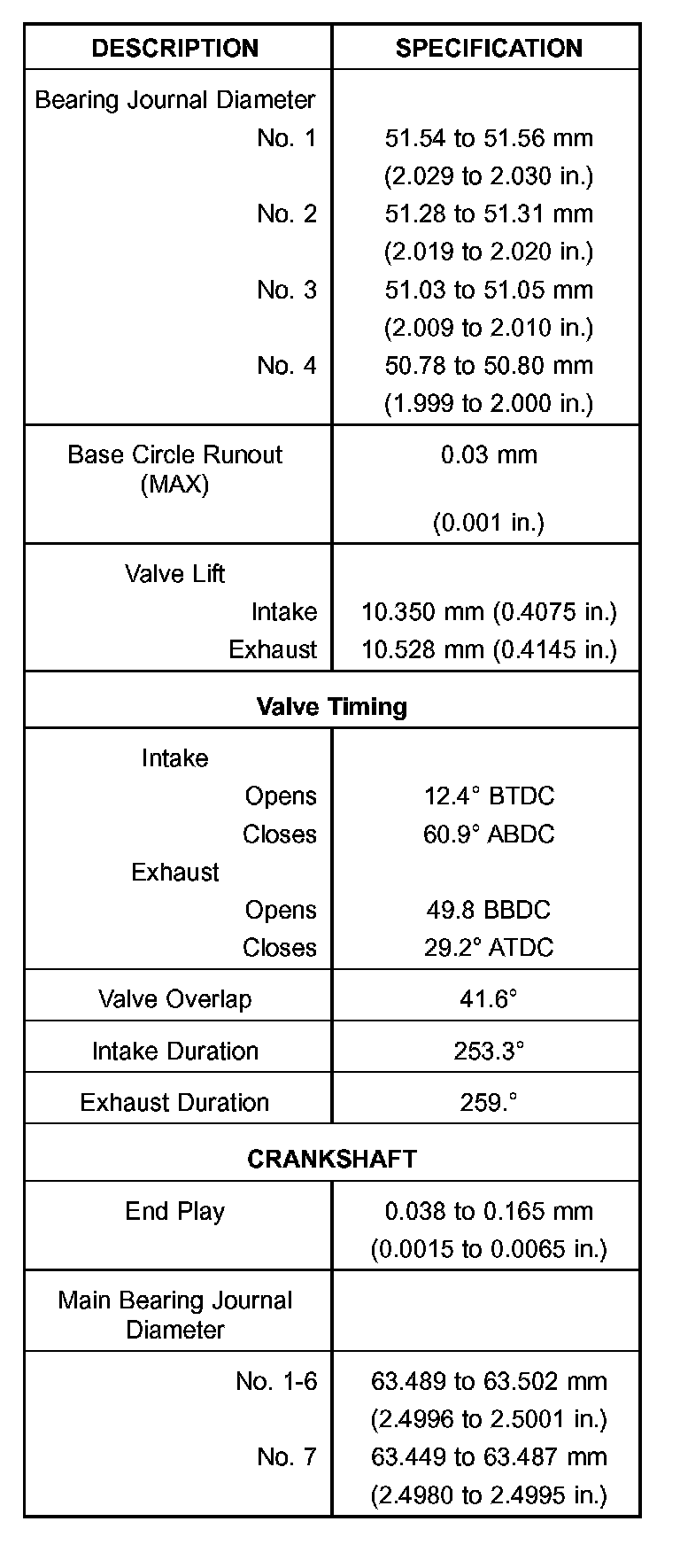

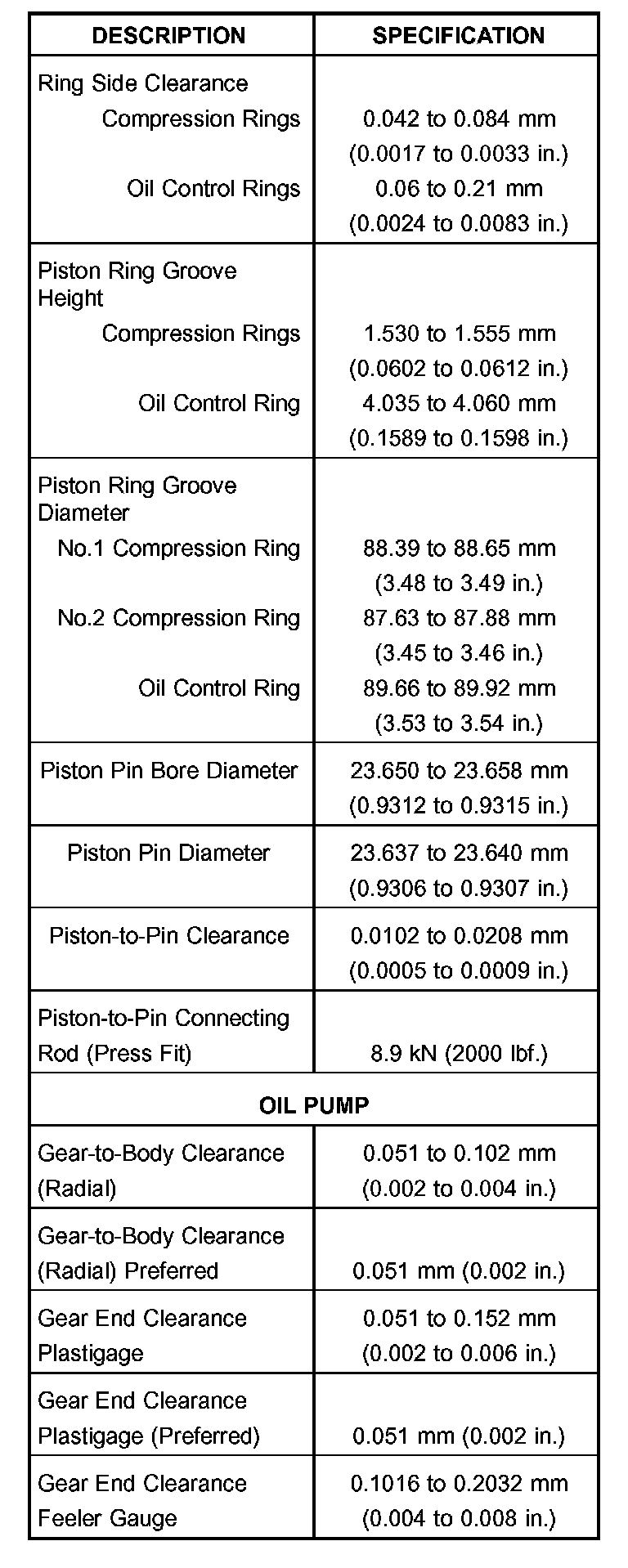

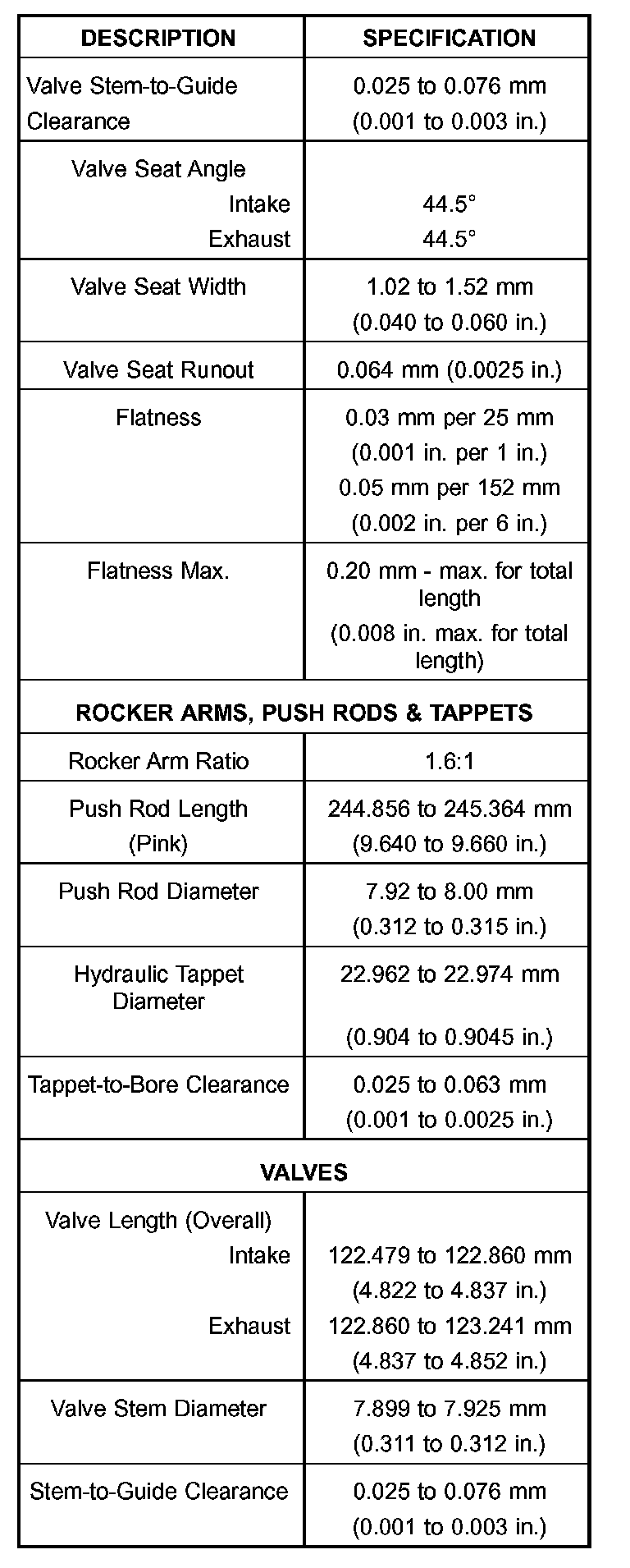

ENGINE - 4.0L





Part 1 of 8





Part 2 of 8





Part 3 of 8





Part 4 of 8





Part 5 of 8





Part 6 of 8





Part 7 of 8





Part 8 of 8

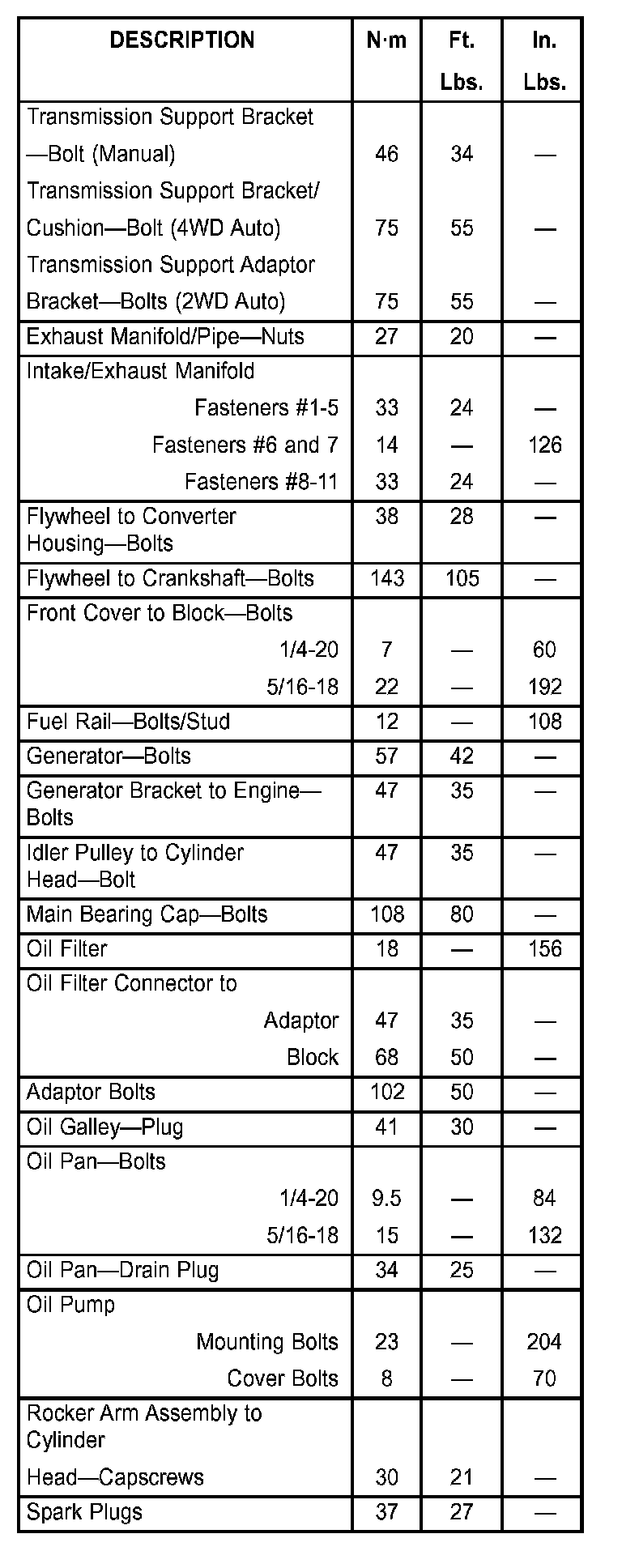

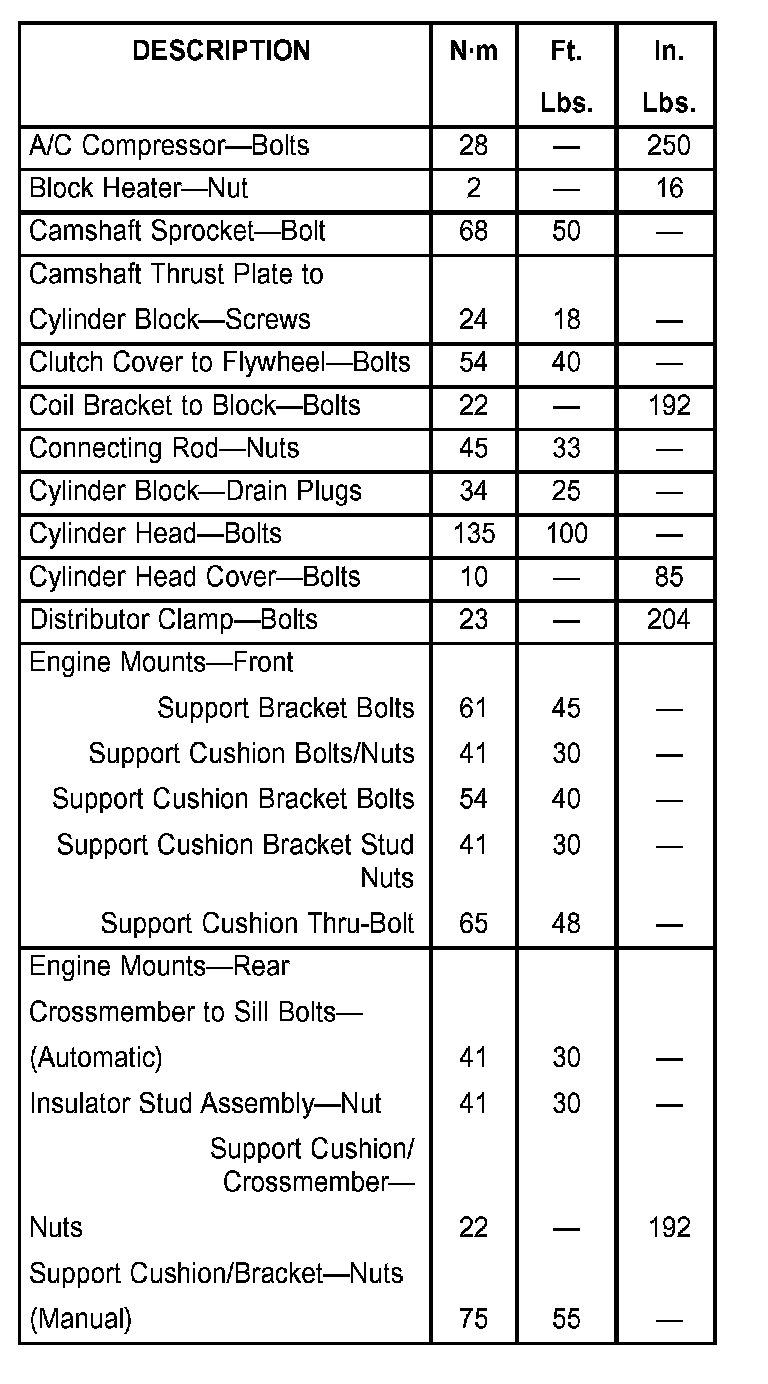

Torque





Part 1 of 3





Part 2 of 3





Part 3 of 3
