Checking IAC Motor

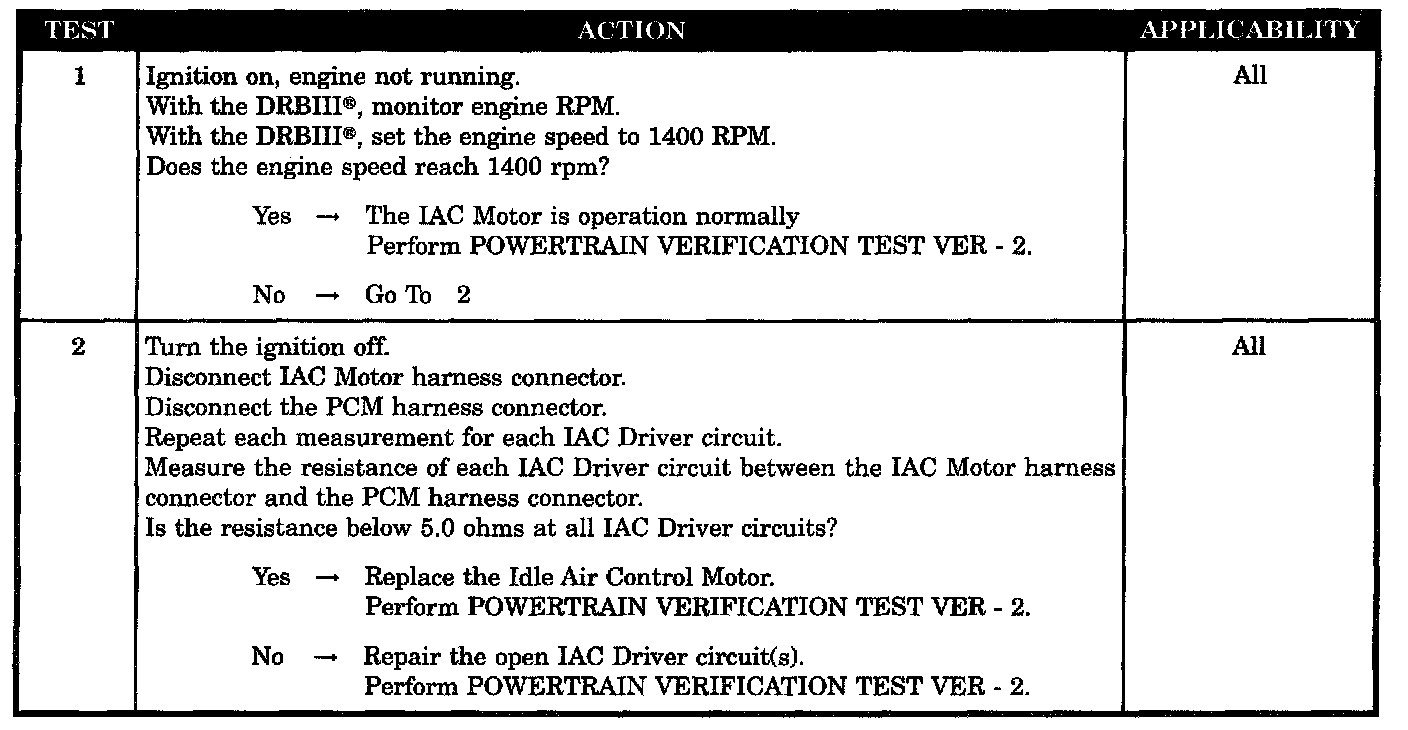

Tests 1 - 2:




SYMPTOM
CHECKING IAC MOTOR

POSSIBLE CAUSES
- IAC motor operation
- IAC driver circuit open
- IAC motor
