Home >> Jeep >> 2002 >> Wrangler L4-2.5L VIN P >> Repair and Diagnosis >> Locations >> Splice Locations >> Figure 16

Figure 16

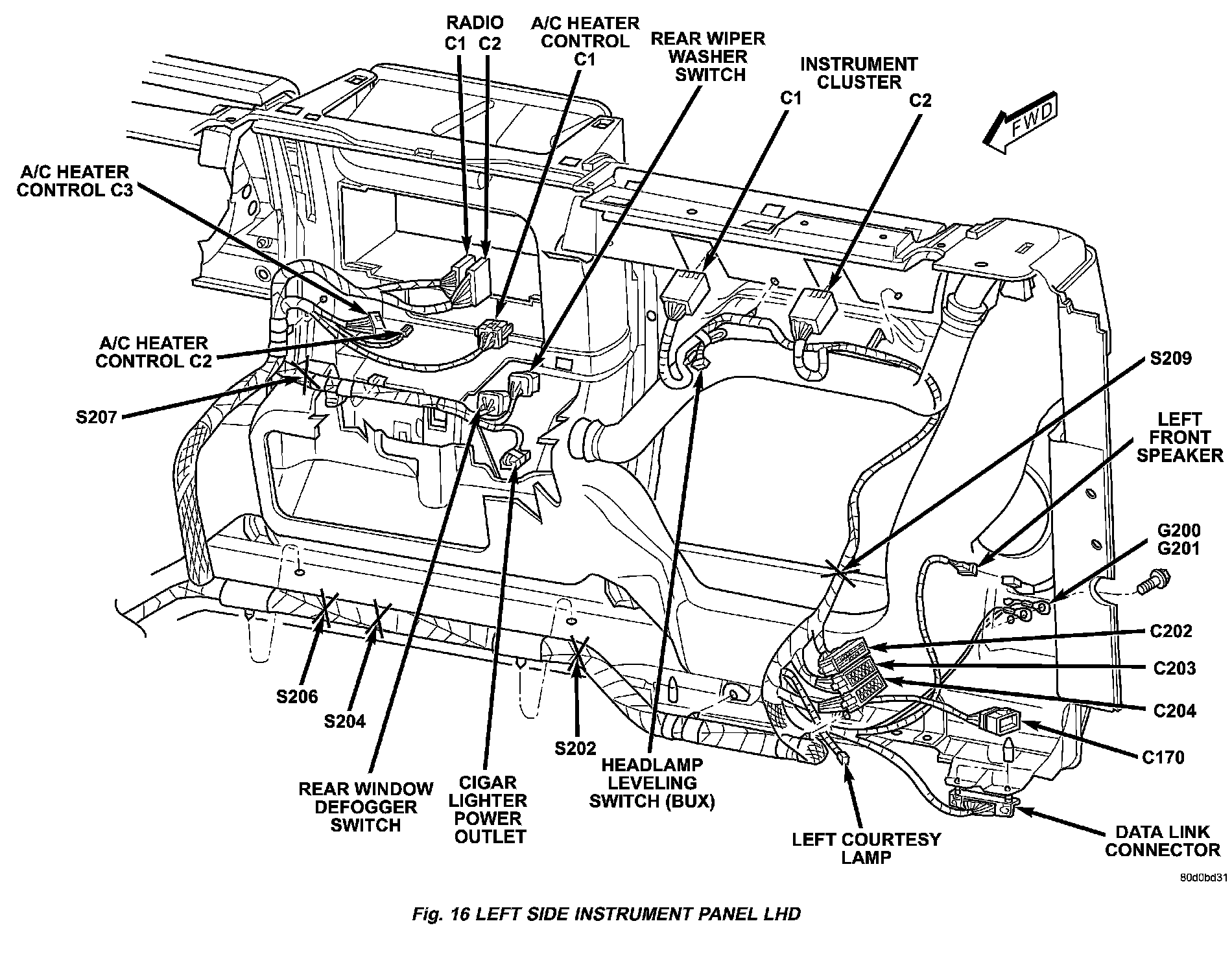

Fig.16 Left Side Instrument Panel LHD:
