Home >> Jeep >> 2002 >> Wrangler L4-2.5L VIN P >> Repair and Diagnosis >> Locations >> Splice Locations >> Figure 15

Figure 15

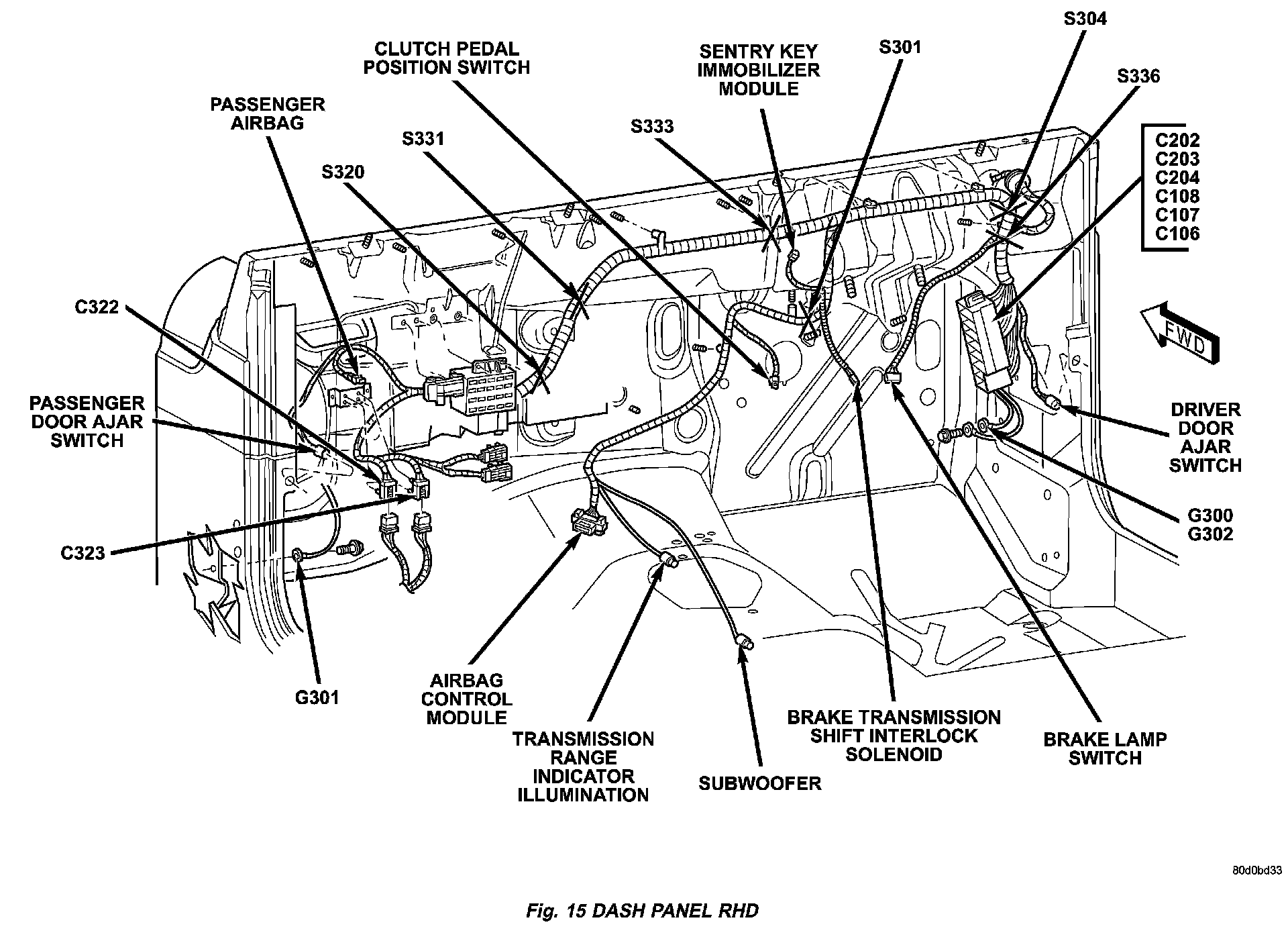

Fig.15 Dash Panel RHD:
