Home >> Jeep >> 2002 >> Wrangler L4-2.5L VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Motor

Wiper Motor

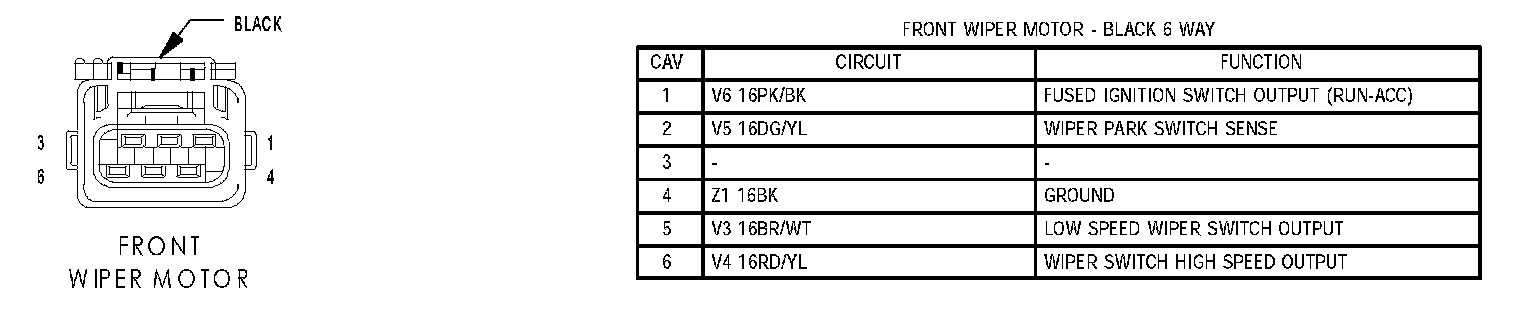

Front Wiper Motor:

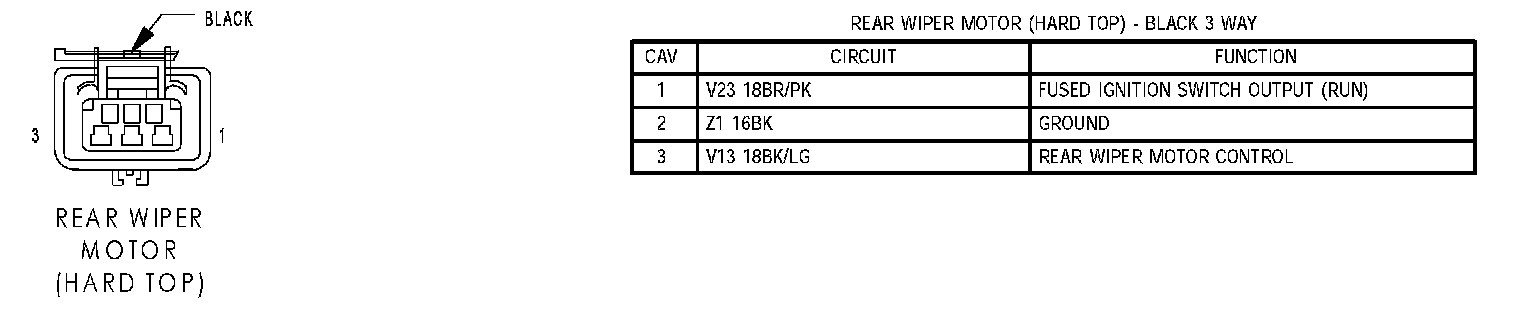

Rear Wiper Motor (Hard Top):
