Fog/Driving Lamp
>>
System Diagram
System Diagram

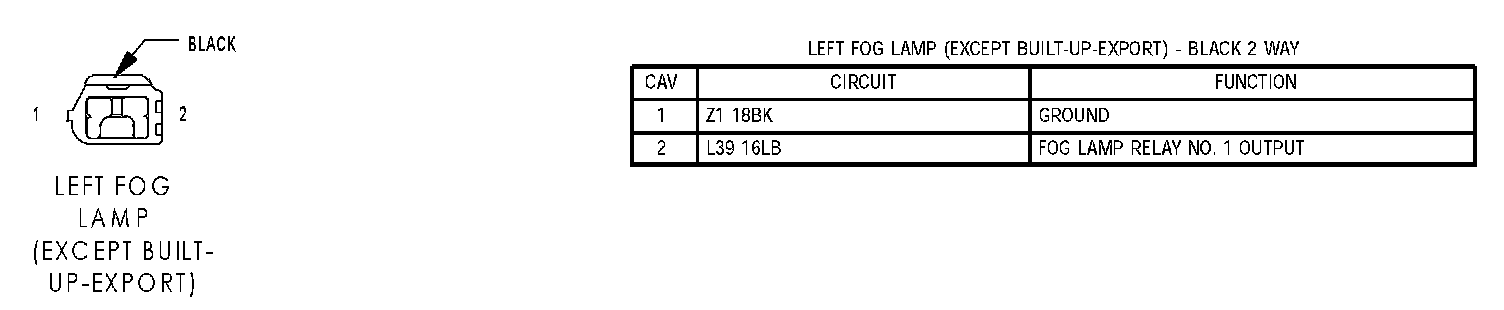

Left Fog Lamp (Except Built-Up-Export):

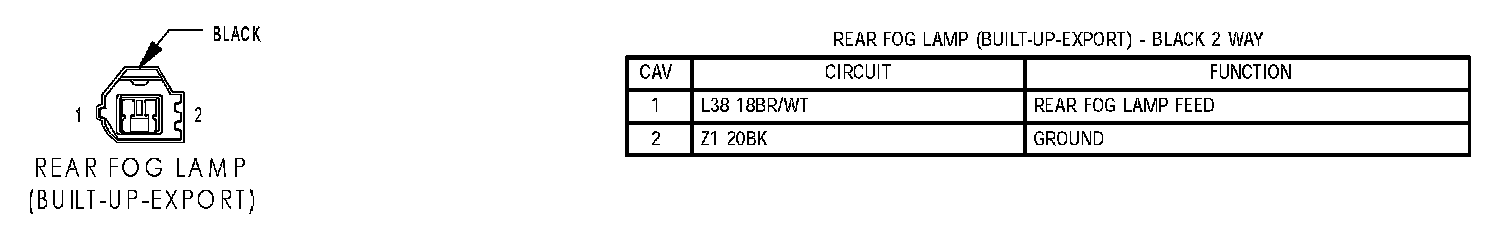

Rear Fog Lamp (Built-Up-Export):

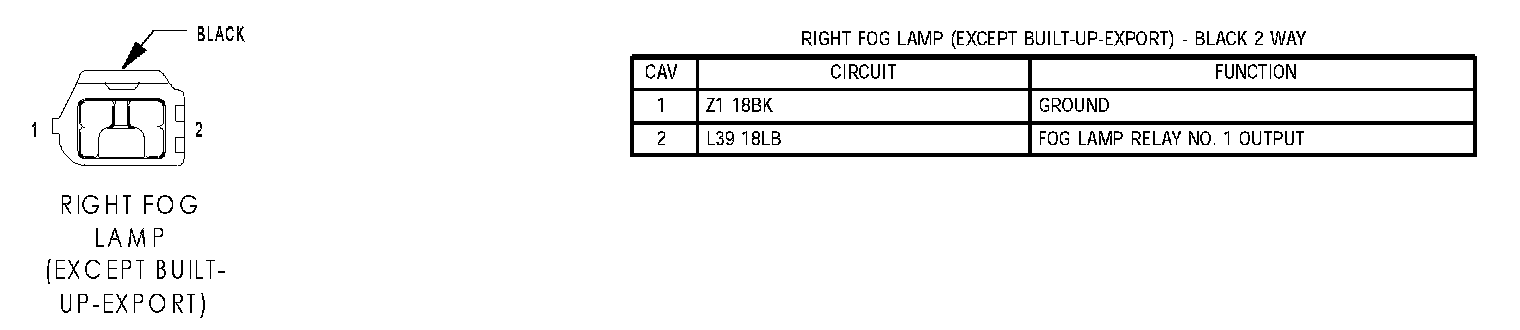

Right Fog Lamp (Except Built-Up-Export):
