Wrangler L4-2.5L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Switch
Door Switch

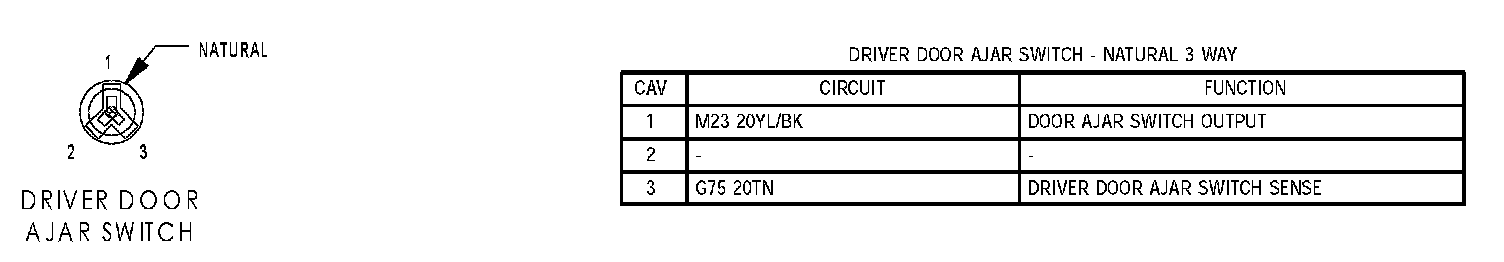

Driver Door Ajar Switch:

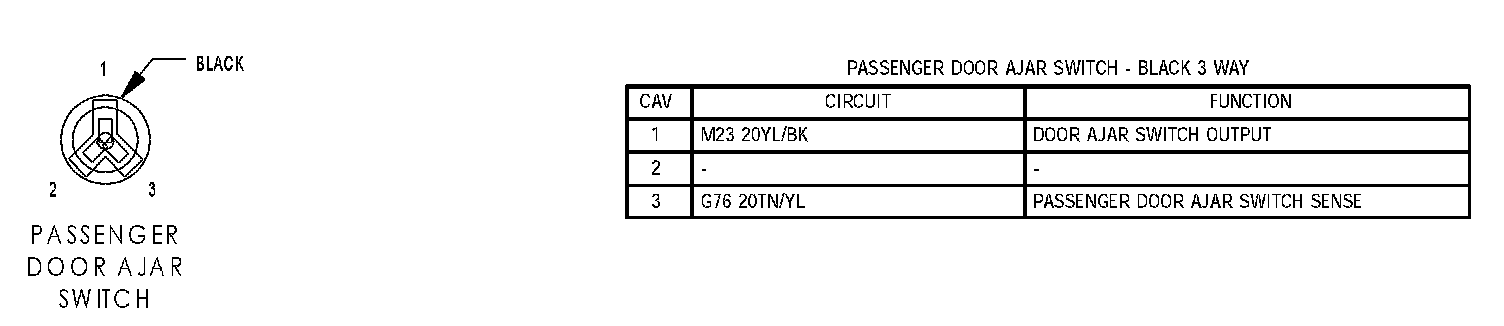

Passenger Door Ajar Switch:
