Checking Intake Air Temperature Sensor
Checking Intake Air Temperature Sensor

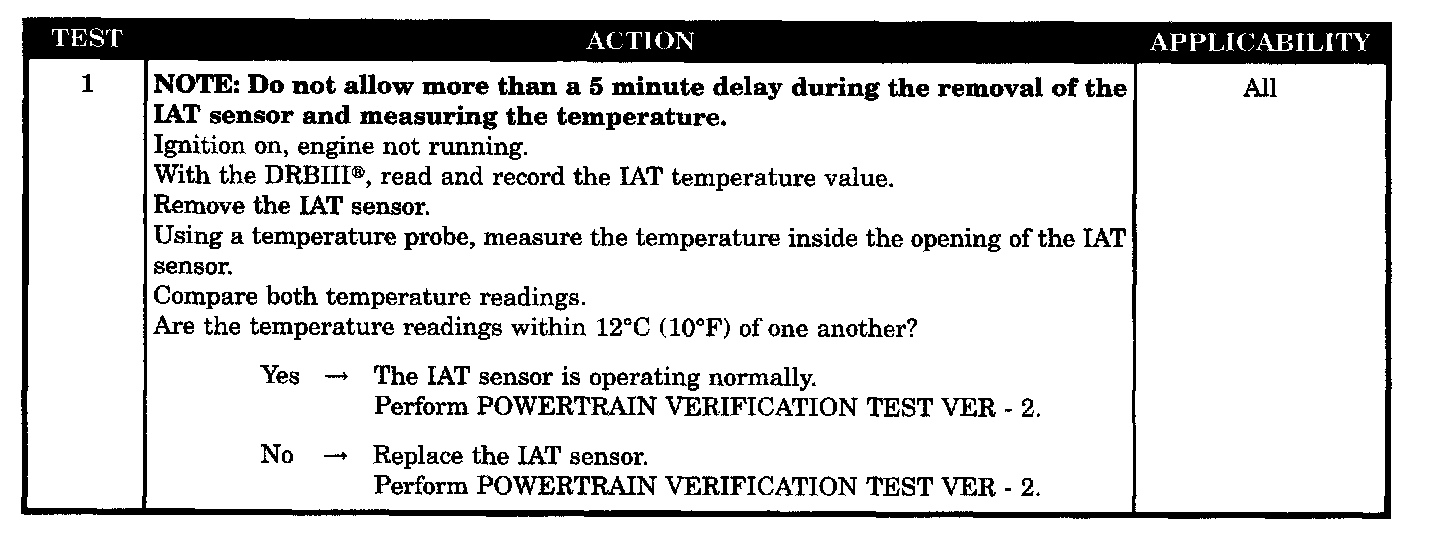

Test 1:
SYMPTOM
CHECKING THE
INTAKE AIR TEMPERATURE SENSOR
POSSIBLE CAUSES
-
IAT sensor operation
-
IAT sensor
