LEMON Manuals
: Even more car manuals for everyone
Home
>>
Jeep
>>
2001
>>
TJ (CANADA) L6-4.0L
>>
Repair and Diagnosis
>>

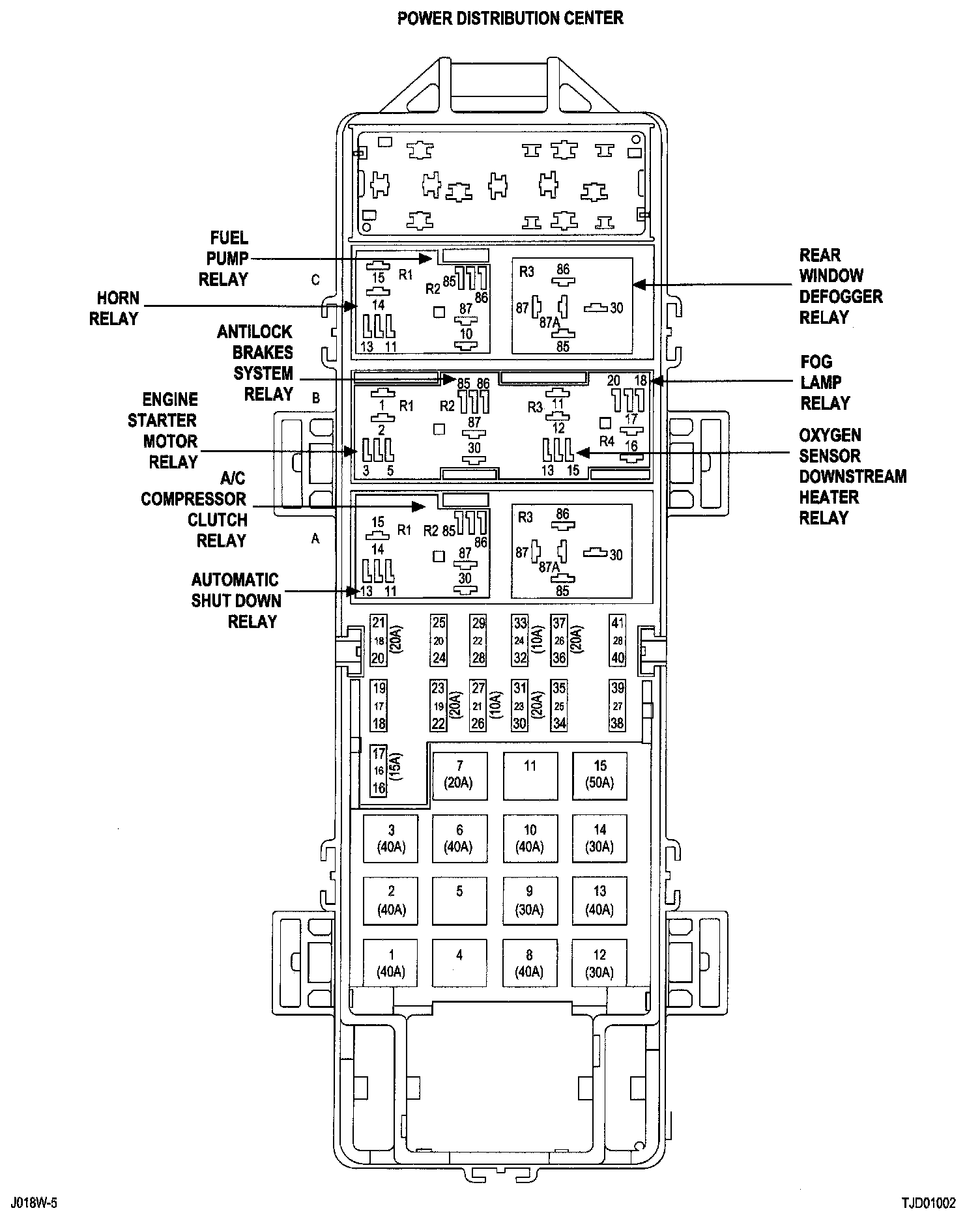

Diagrams
>>

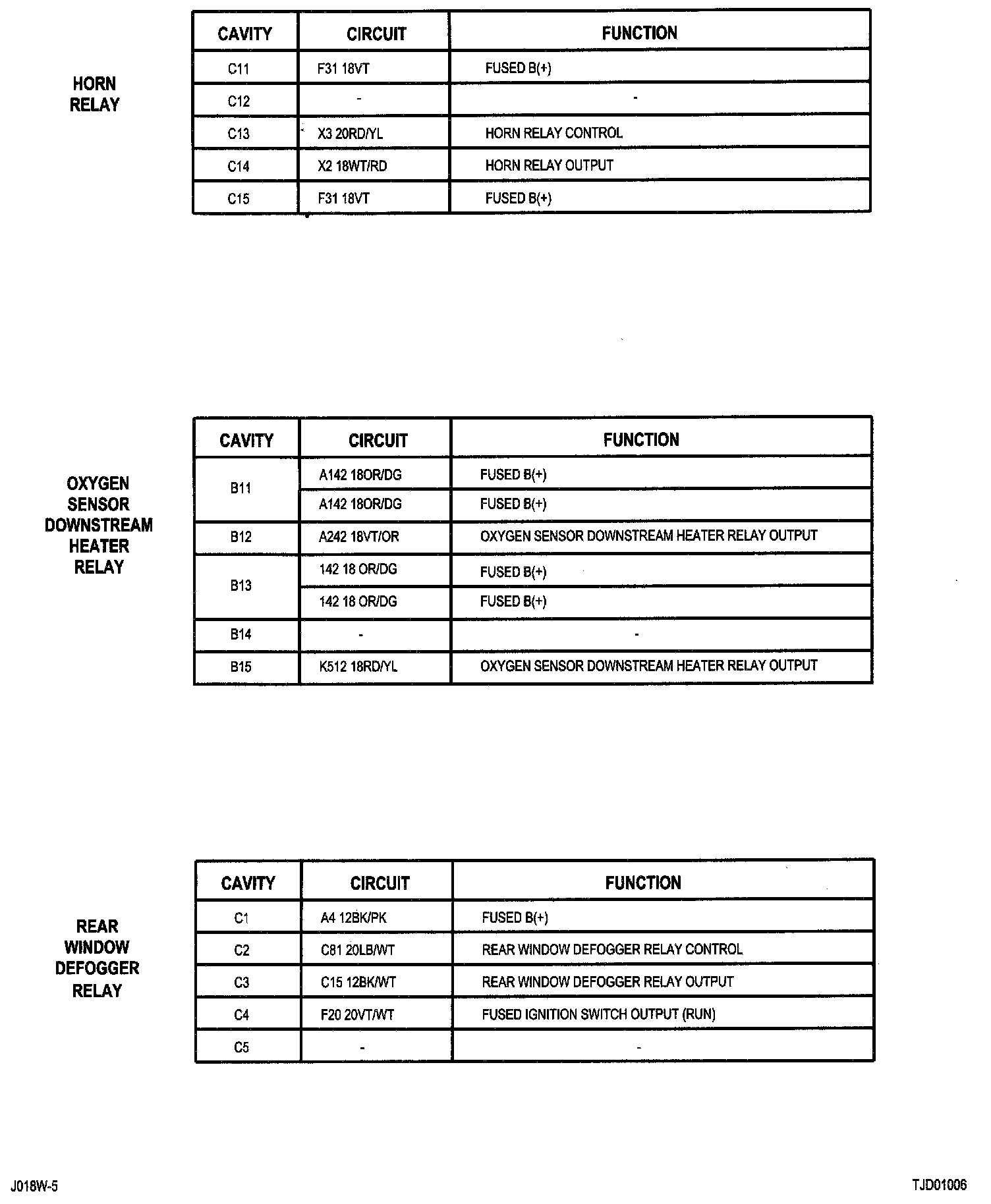

Connector Views
>>
Main Relay (Computer/Fuel System)
Main Relay (Computer/Fuel System)
8w-10-2:
8w-10-6:
