Oxygen Sensor
>>
Locations
>>
Engine Compartment/Exhaust System
Engine Compartment/Exhaust System

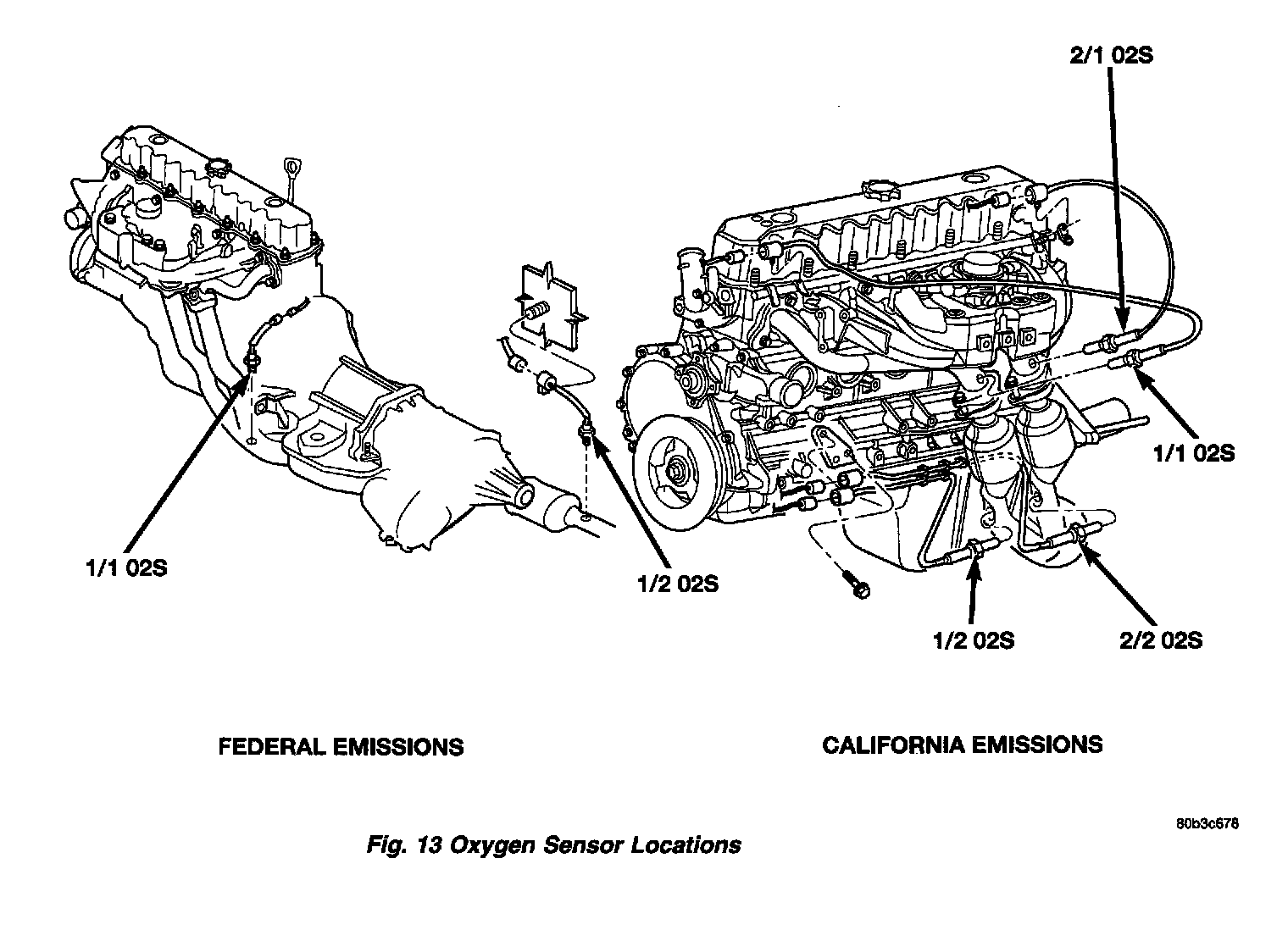

Fig.13 Oxygen Sensor Locations:
The Oxygen Sensors
(O2S)
are attached to, and protrude into the vehicle exhaust system.
