Door Module

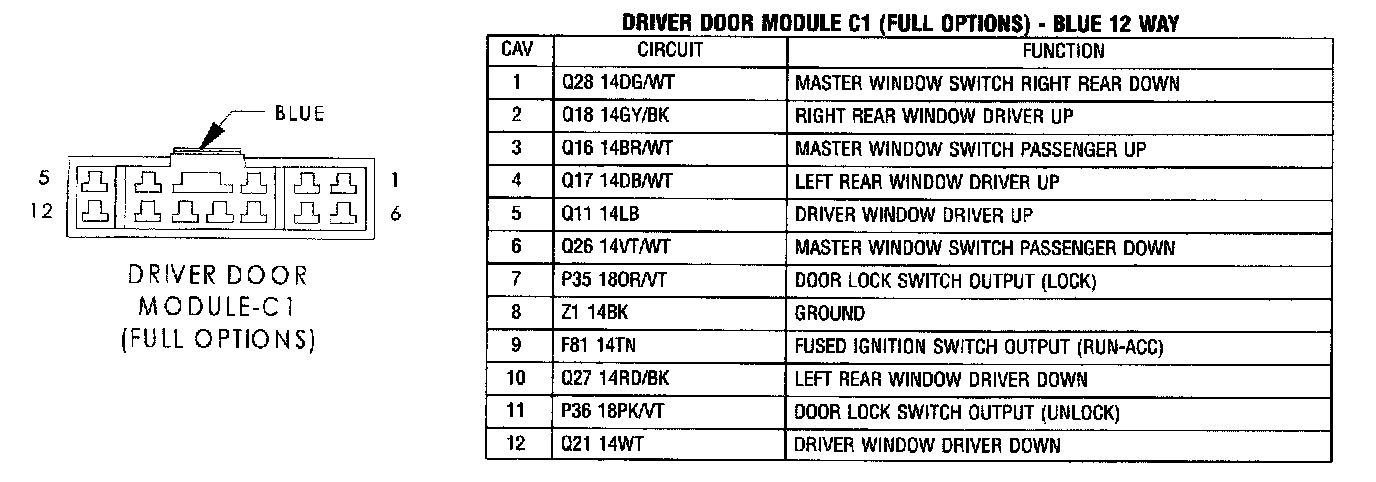

Driver Door Module C1 (Full Options):

Driver Door Module C2 (Full Options):

Passenger Door Module C1 (Full Options):

Passenger Door Module C2 (Full Options):
