LEMON Manuals
: Even more car manuals for everyone
Home
>>
Jeep
>>
2000
>>
TJ (CANADA) L4-2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
Connector Views

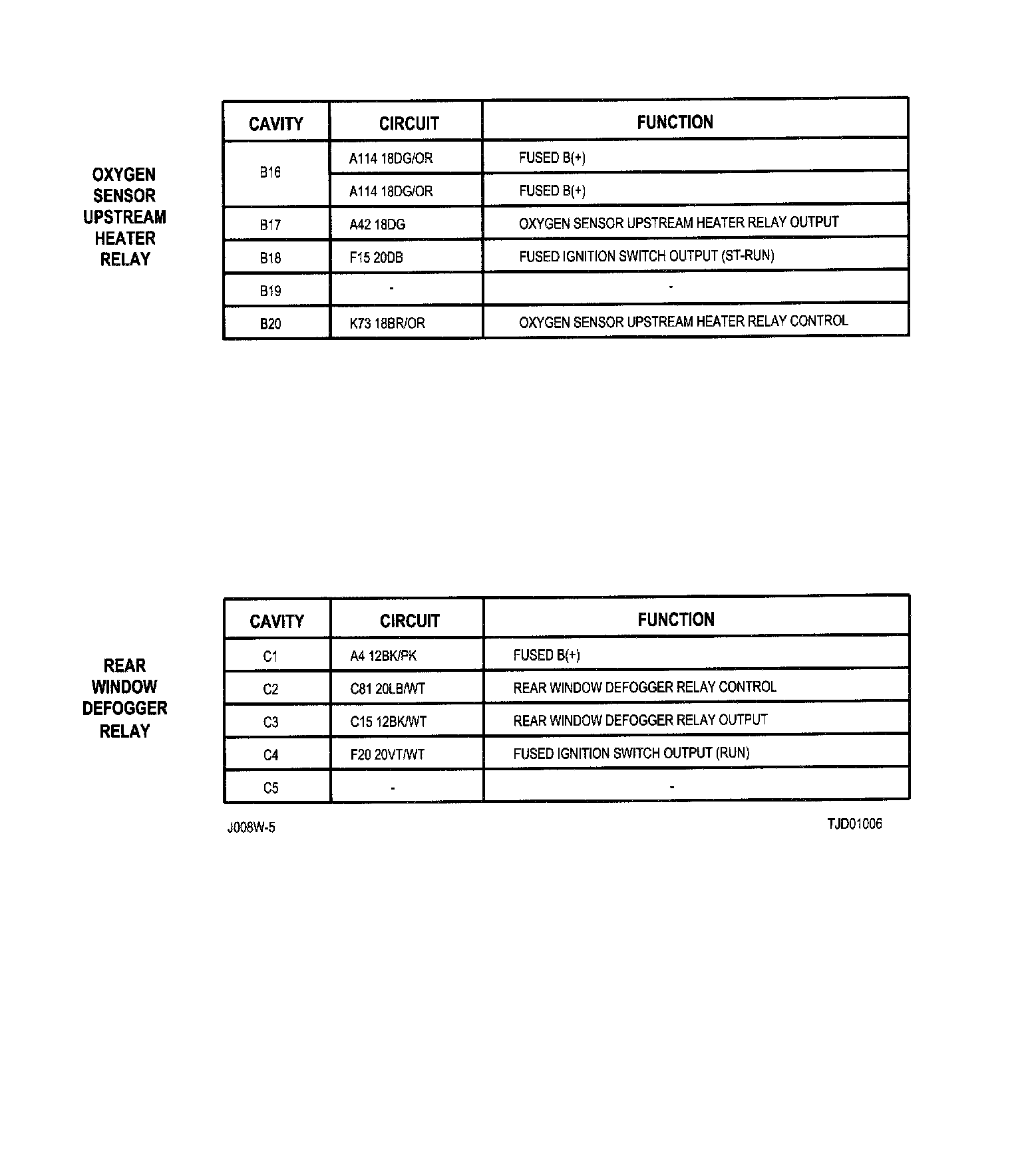

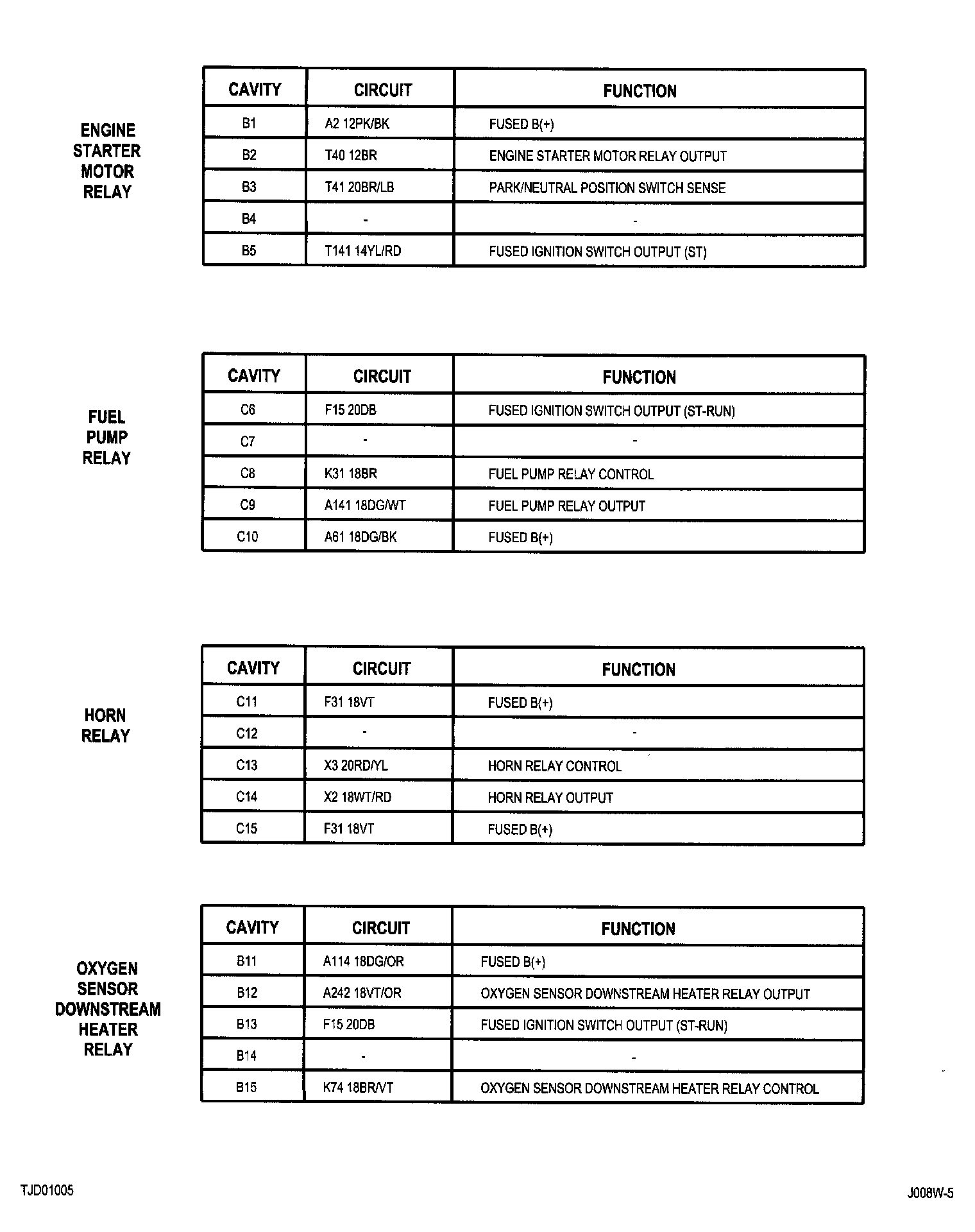

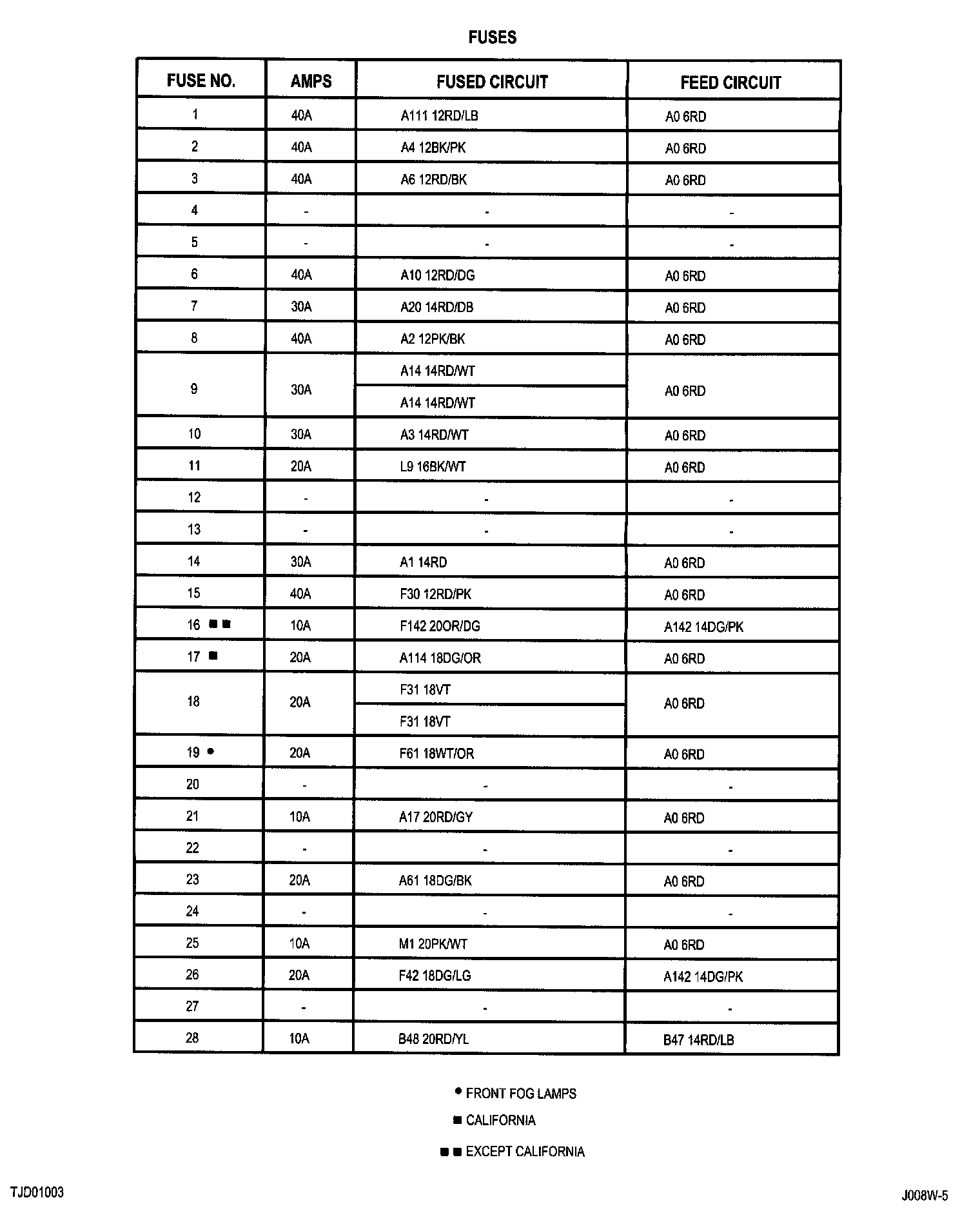

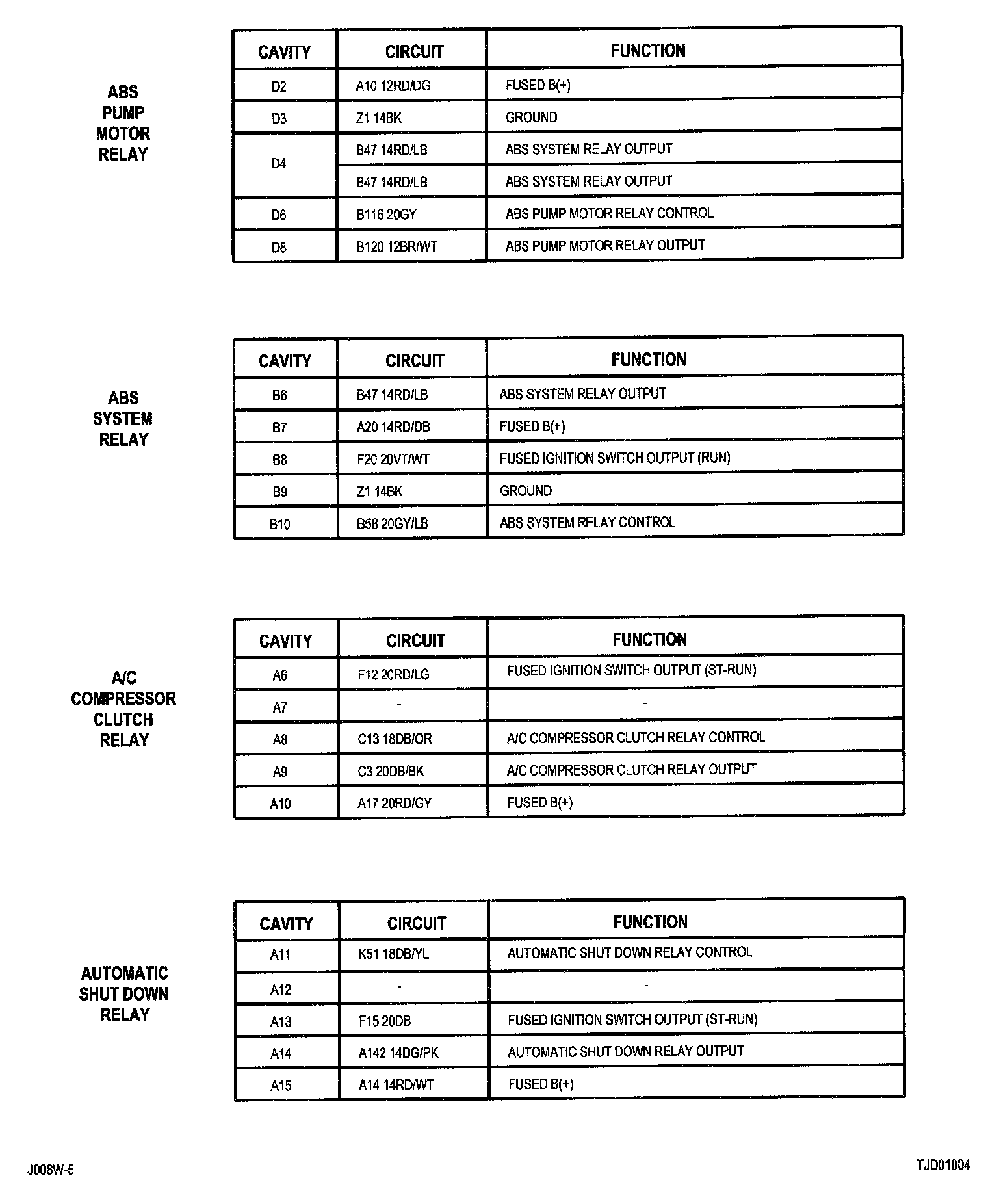

8w-10-2:
8w-10-3:
8w-10-4:
8w-10-5:
8w-10-6:
