Fuel Filter: Locations

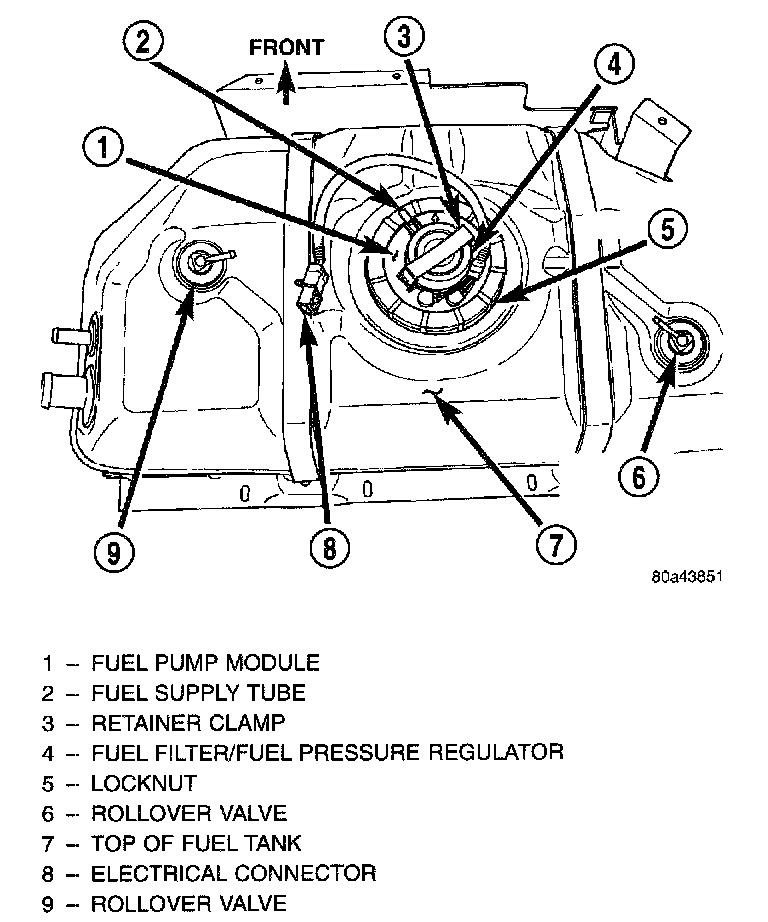

Fuel Tank/Fuel Pump Module (Top View):




The combination fuel filter and fuel pressure regulator is located on the top of fuel pump module.
