Home >> Jeep >> 2000 >> TJ (CANADA) L4-2.5L >> Repair and Diagnosis >> Locations >> Splice Locations >> Figure 2

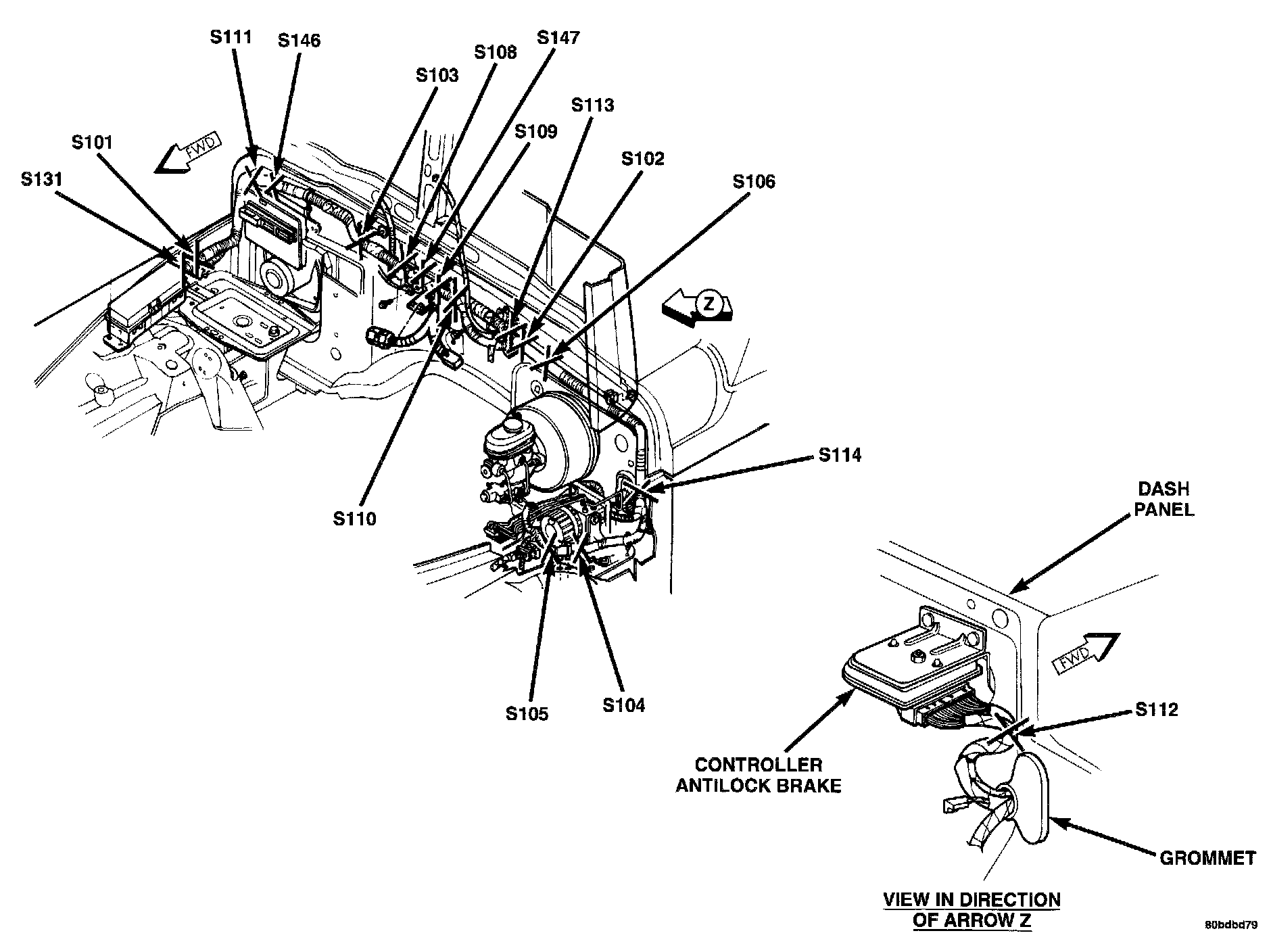

Figure 2

Engine Compartment Splicer - Rear:
