Home >> Jeep >> 2000 >> TJ (CANADA) L4-2.5L >> Repair and Diagnosis >> Locations >> Connector Locations >> Figure 4

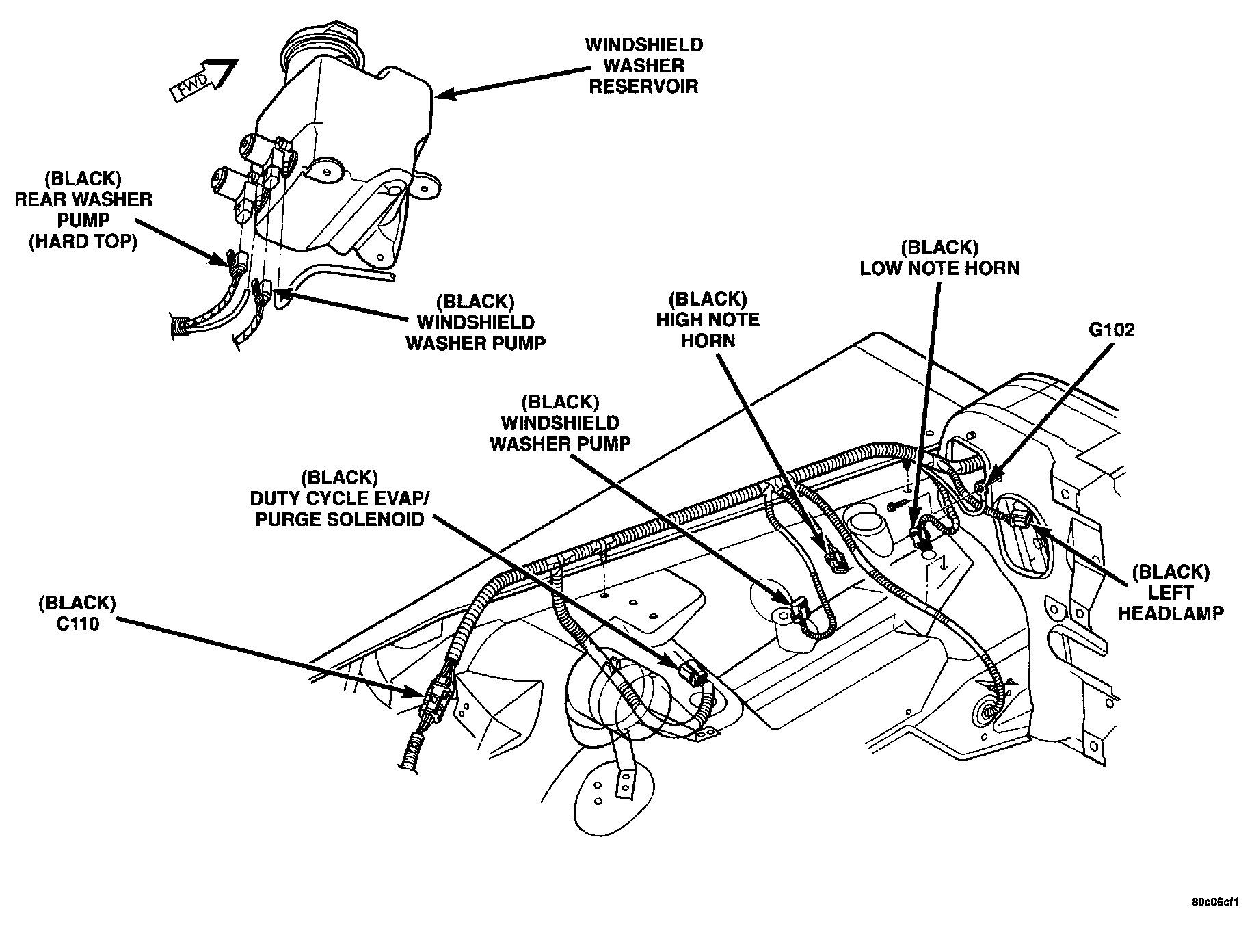

Figure 4

Engine Compartment Connectors - Left Side:
