Home >> Jeep >> 2000 >> TJ (CANADA) L4-2.5L >> Repair and Diagnosis >> Locations >> Connector Locations >> Figure 15

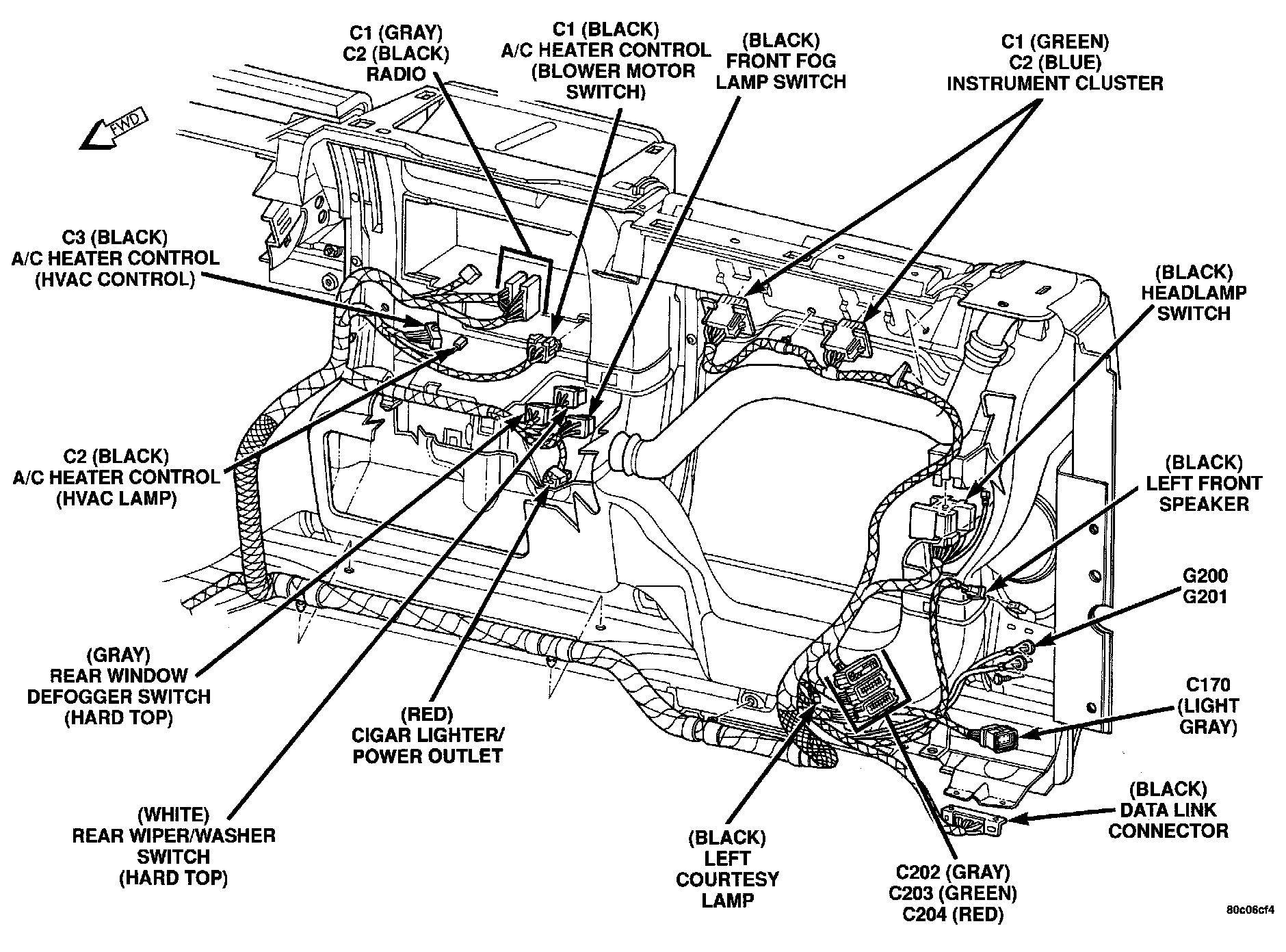

Figure 15

Instrument Panel Wiring Connectors:
