Checking Intake Air Temperature Sensor

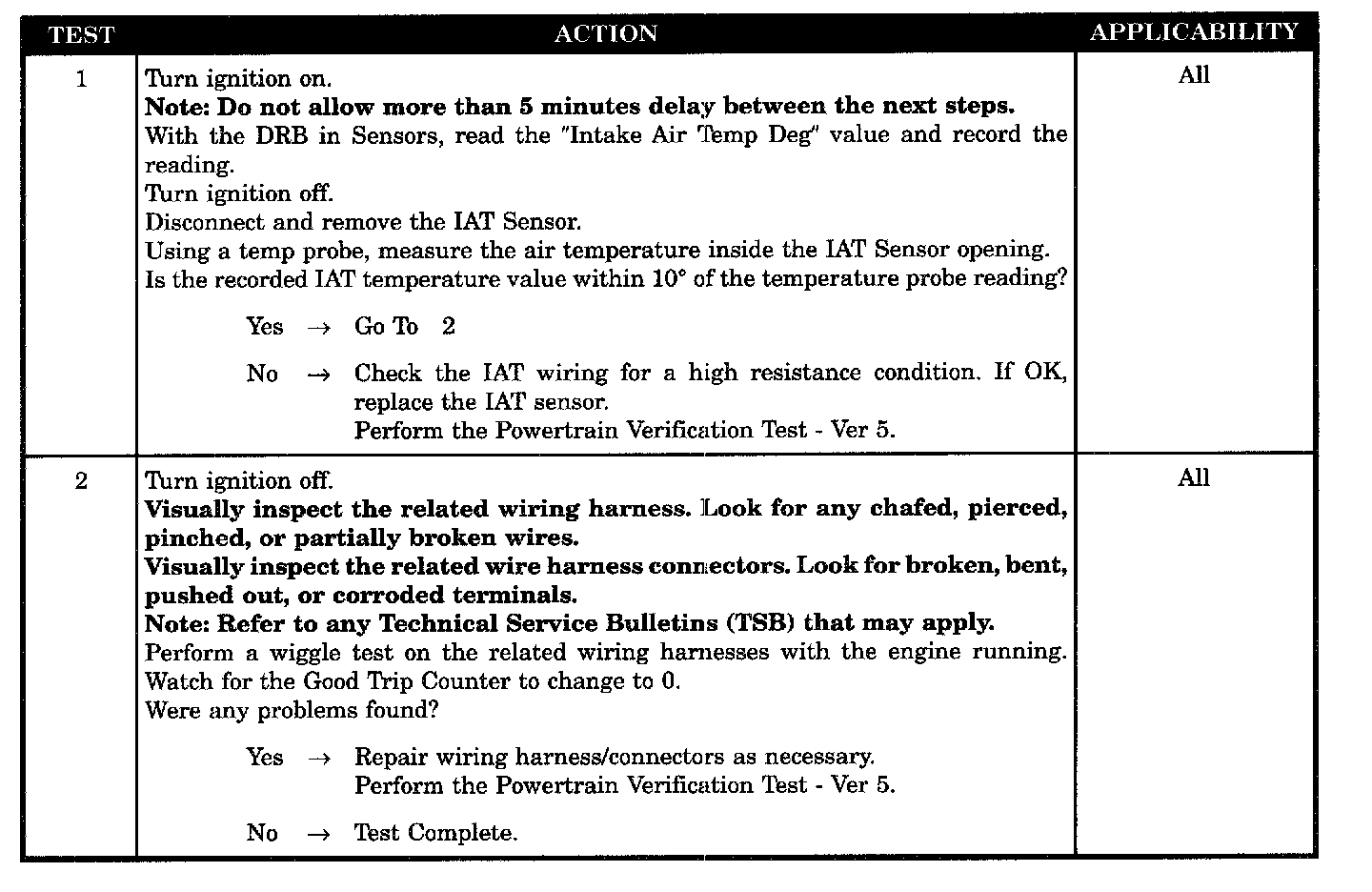

Tests 1 - 2:





SYMPTOM
CHECKING THE INTAKE AIR TEMPERATURE SENSOR

POSSIBLE CAUSES
- IAT sensor (out of calibration)
- Wiring harness intermittent problem
