Chime Sounds With Driver Door Open

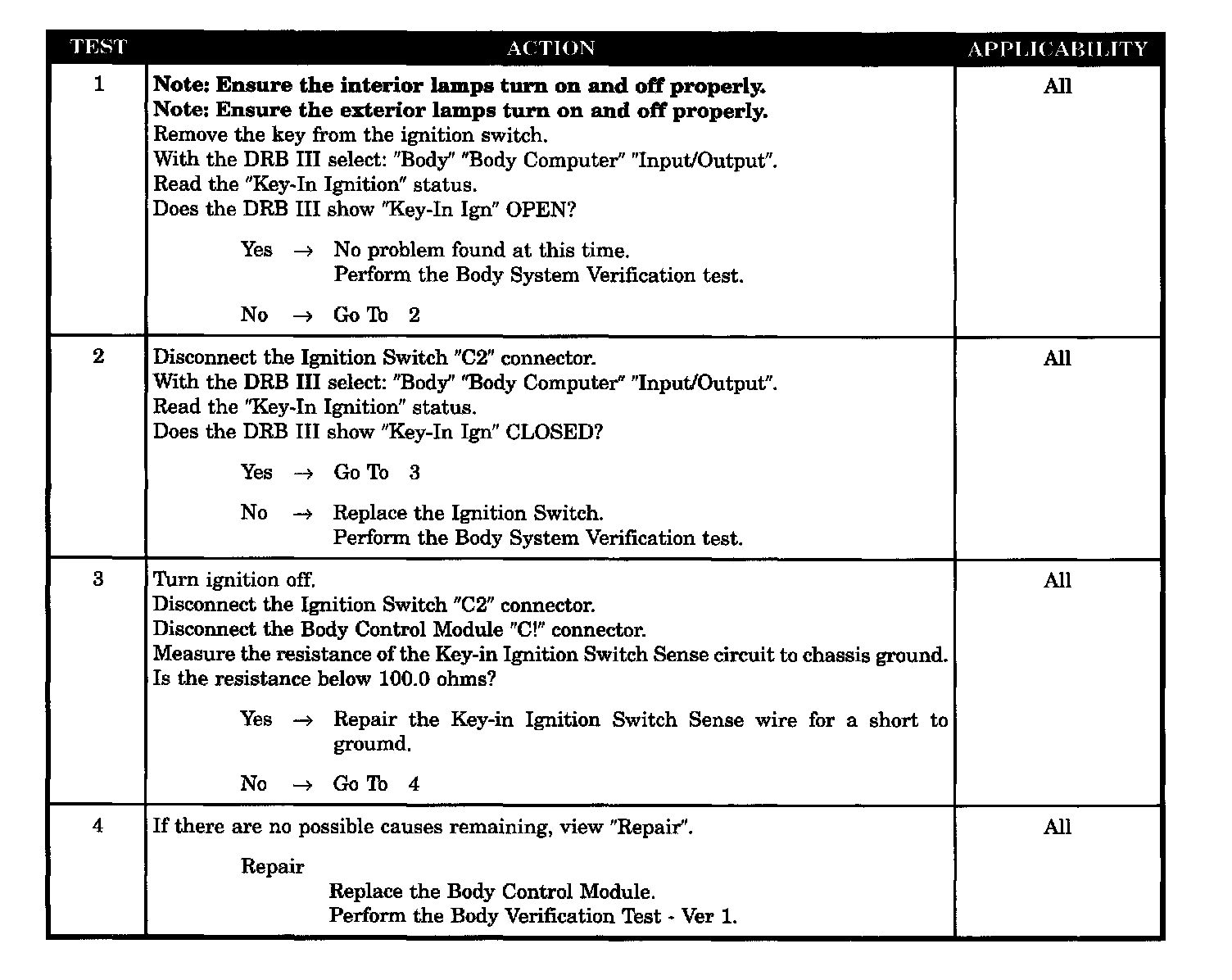

Test 1 - 4:




SYMPTOM
CHIME SOUNDS WITH DRIVER DOOR OPEN

POSSIBLE CAUSES
- Key-in IGN switch status wrong
- Key-in ignition switch circuit shorted
- Key-in IGN switch sense wire short to ground
- Body control module - key-in ignition shorted
