Home >> Jeep >> 2000 >> Grand Cherokee 2WD L6-4.0L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module

Door Module

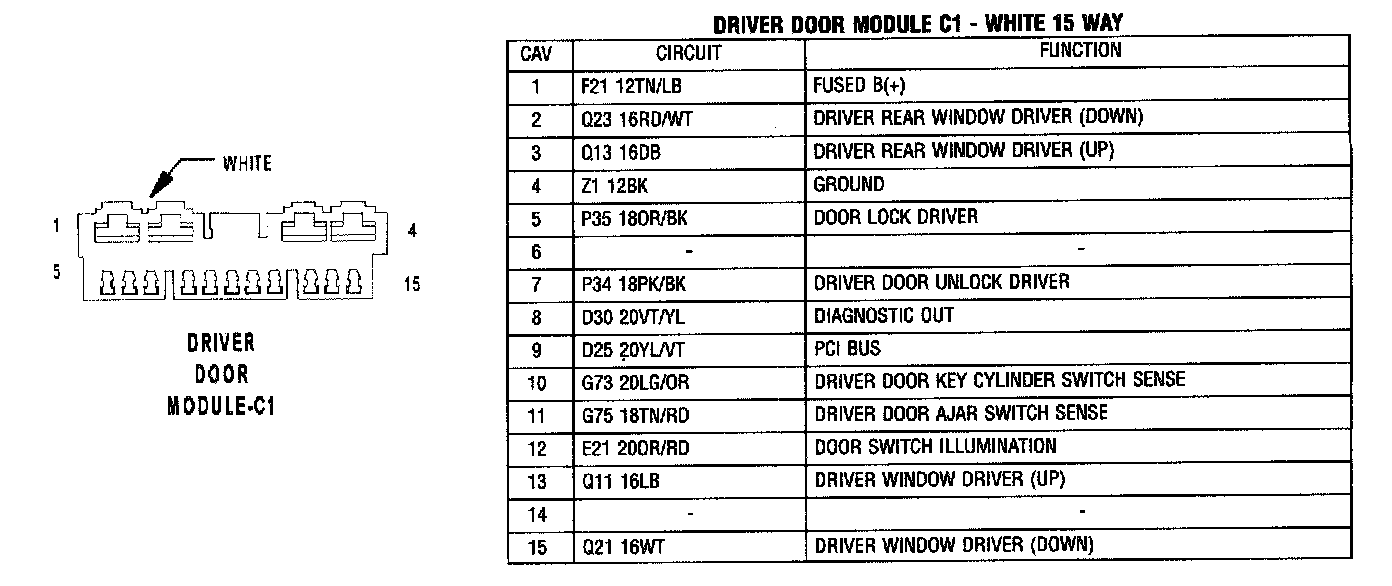

Driver Door Module - C1:

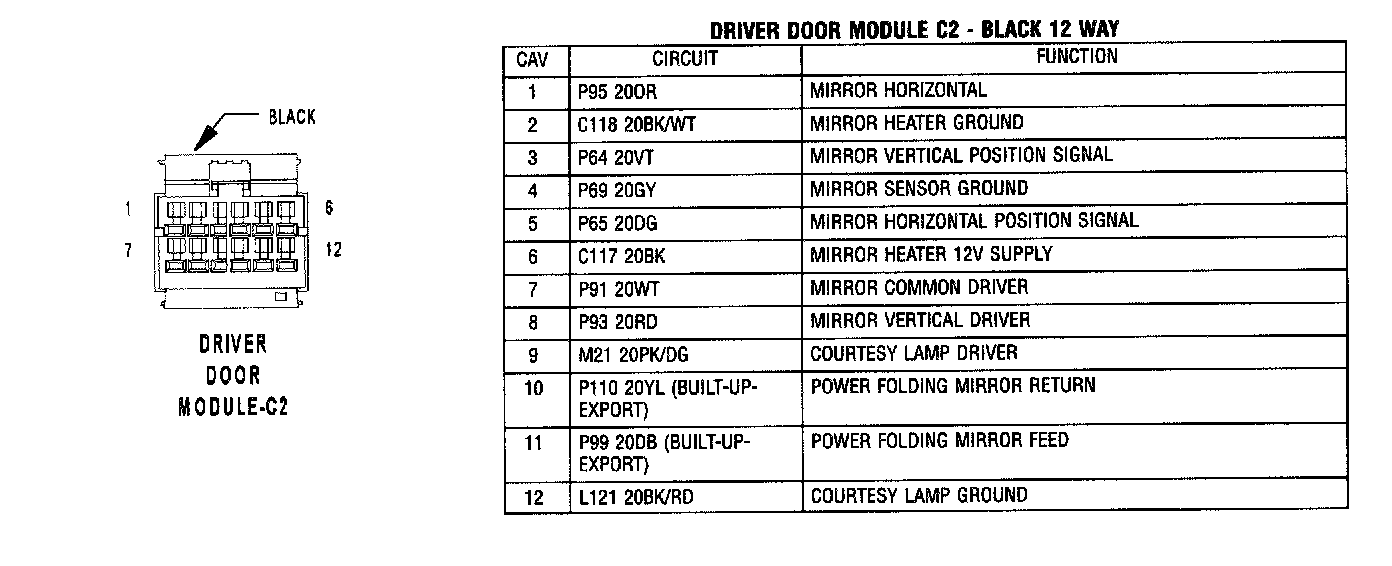

Driver Door Module - C2:




Driver Door Module - C3:




Passenger Door Module - C1:




Passenger Door Module - C2:
