Junction Block (JB)

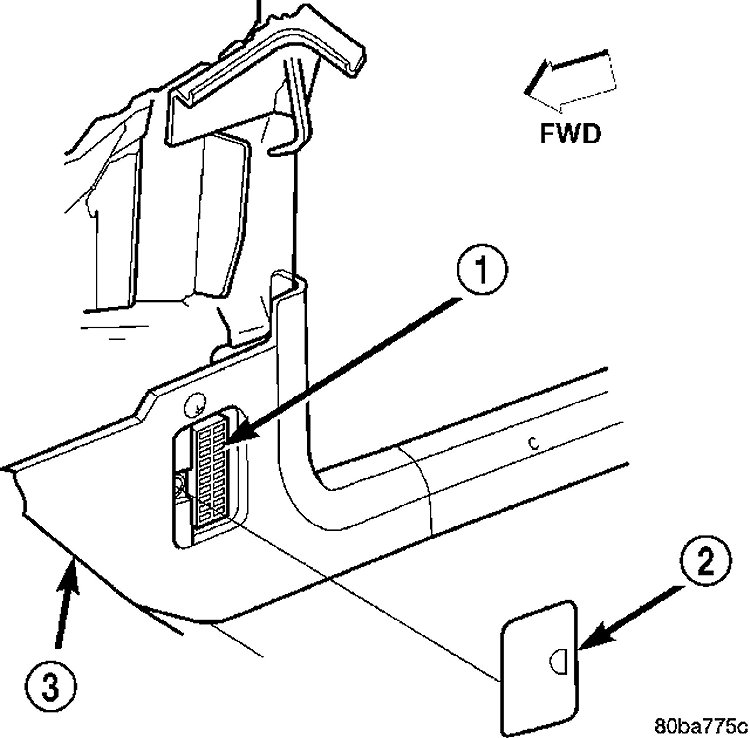

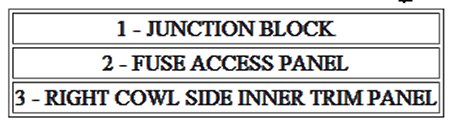

Junction Box (JB) is concealed behind the right cowl side inner trim panel in the passenger compartment of the vehicle.
