LEMON Manuals
: Even more car manuals for everyone
Home
>>
Jeep
>>
2000
>>
Cherokee 2WD L4-2.5L VIN P
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>

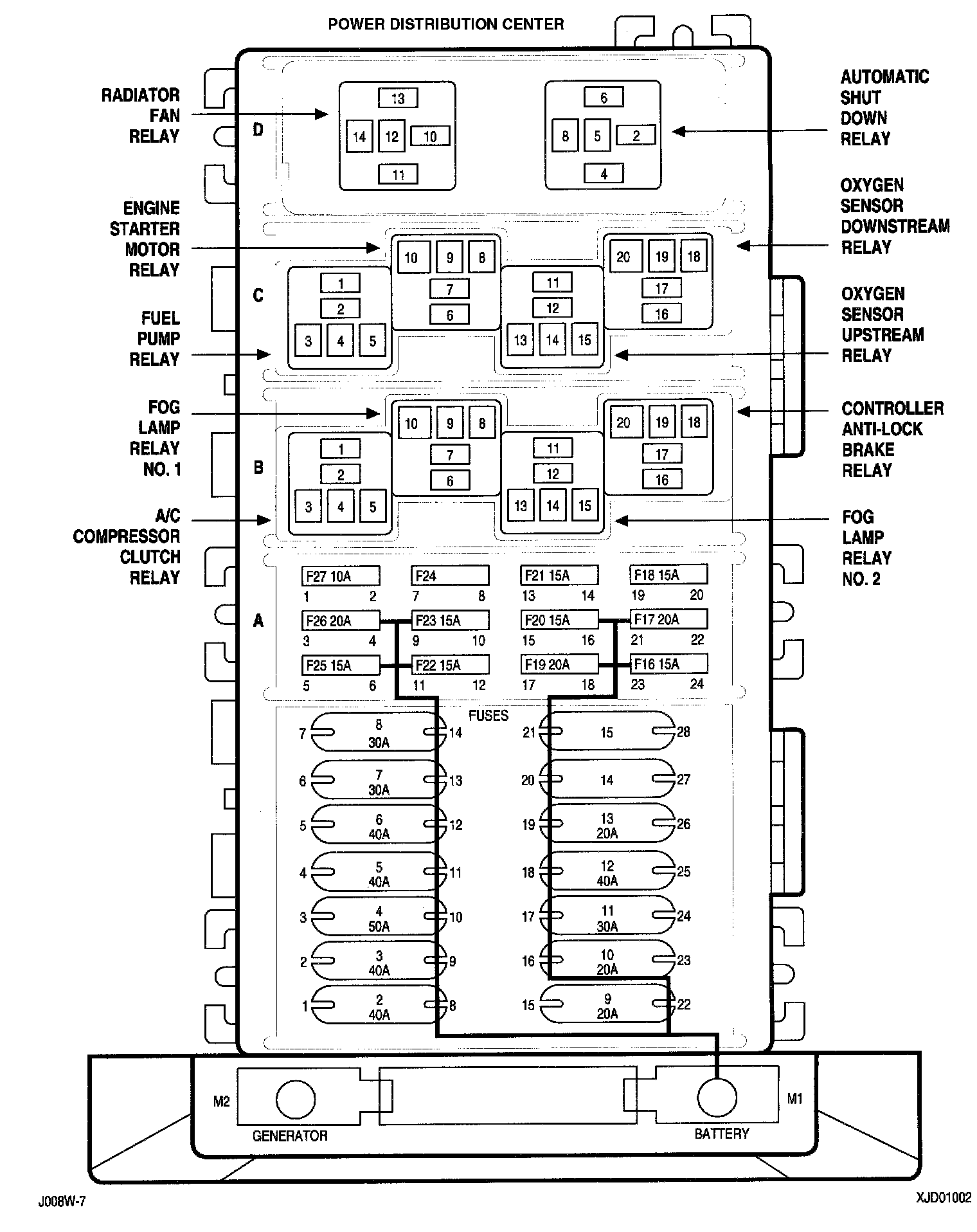

Connector Views
Connector Views

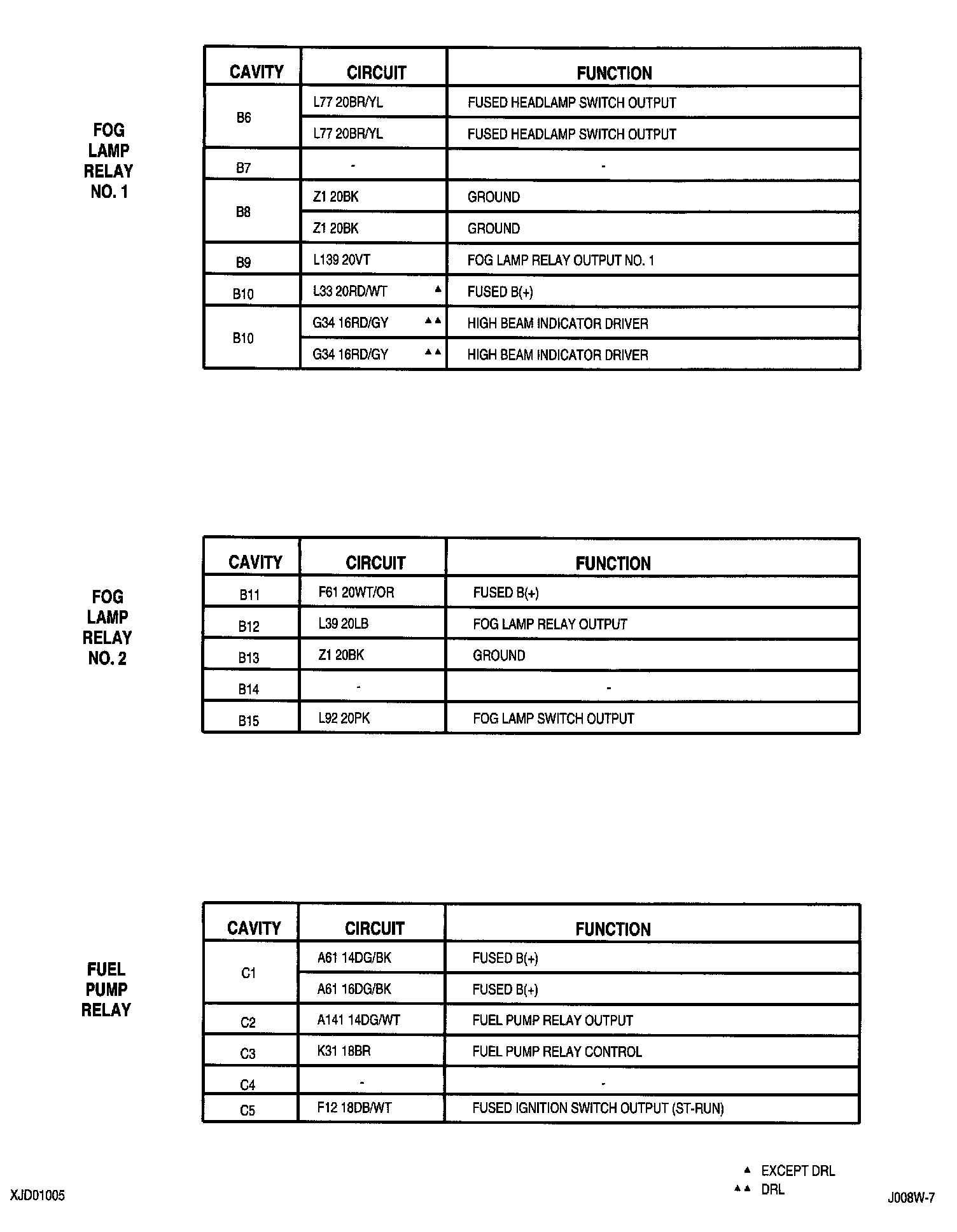

8W-10-2:

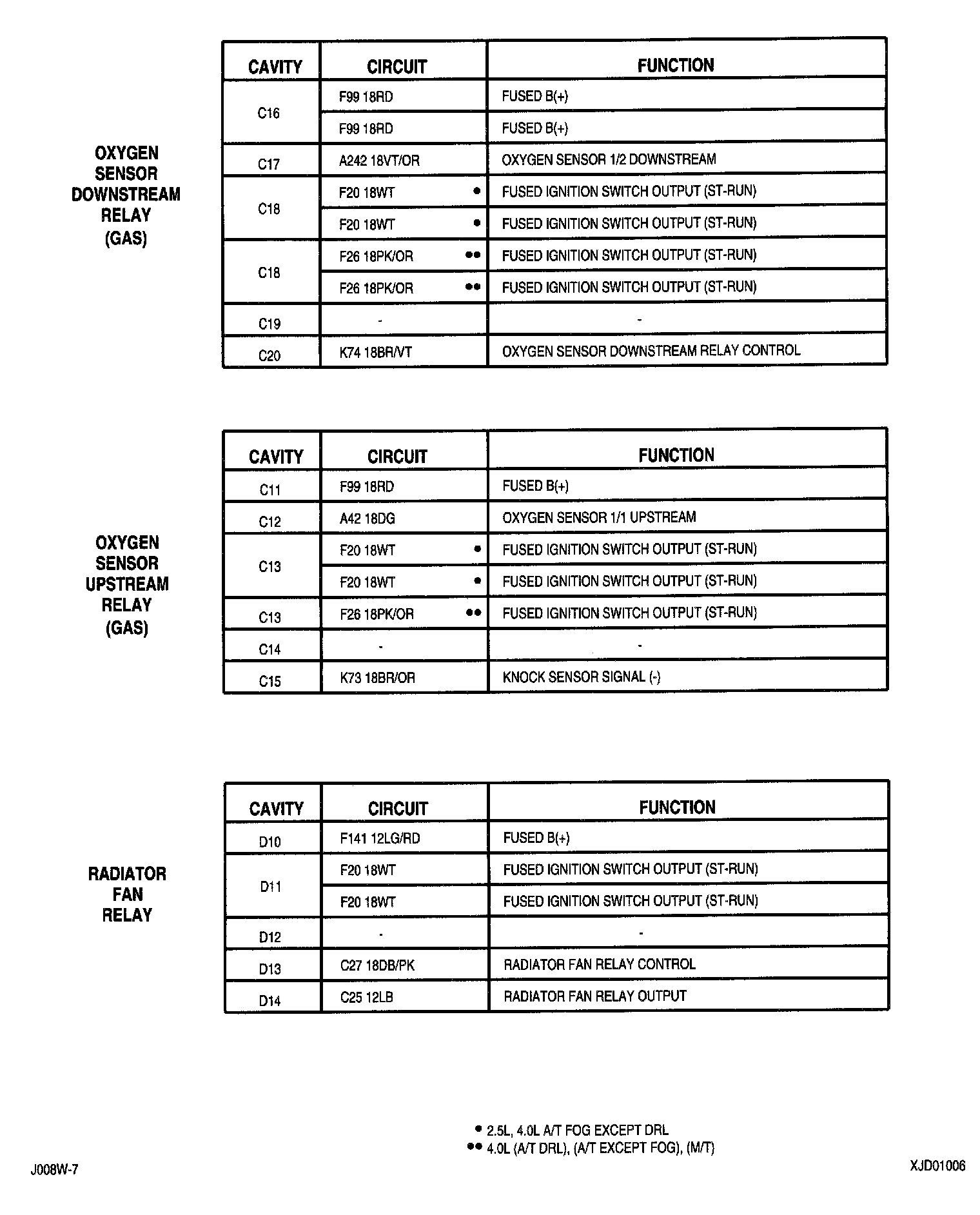

8W-10-3:

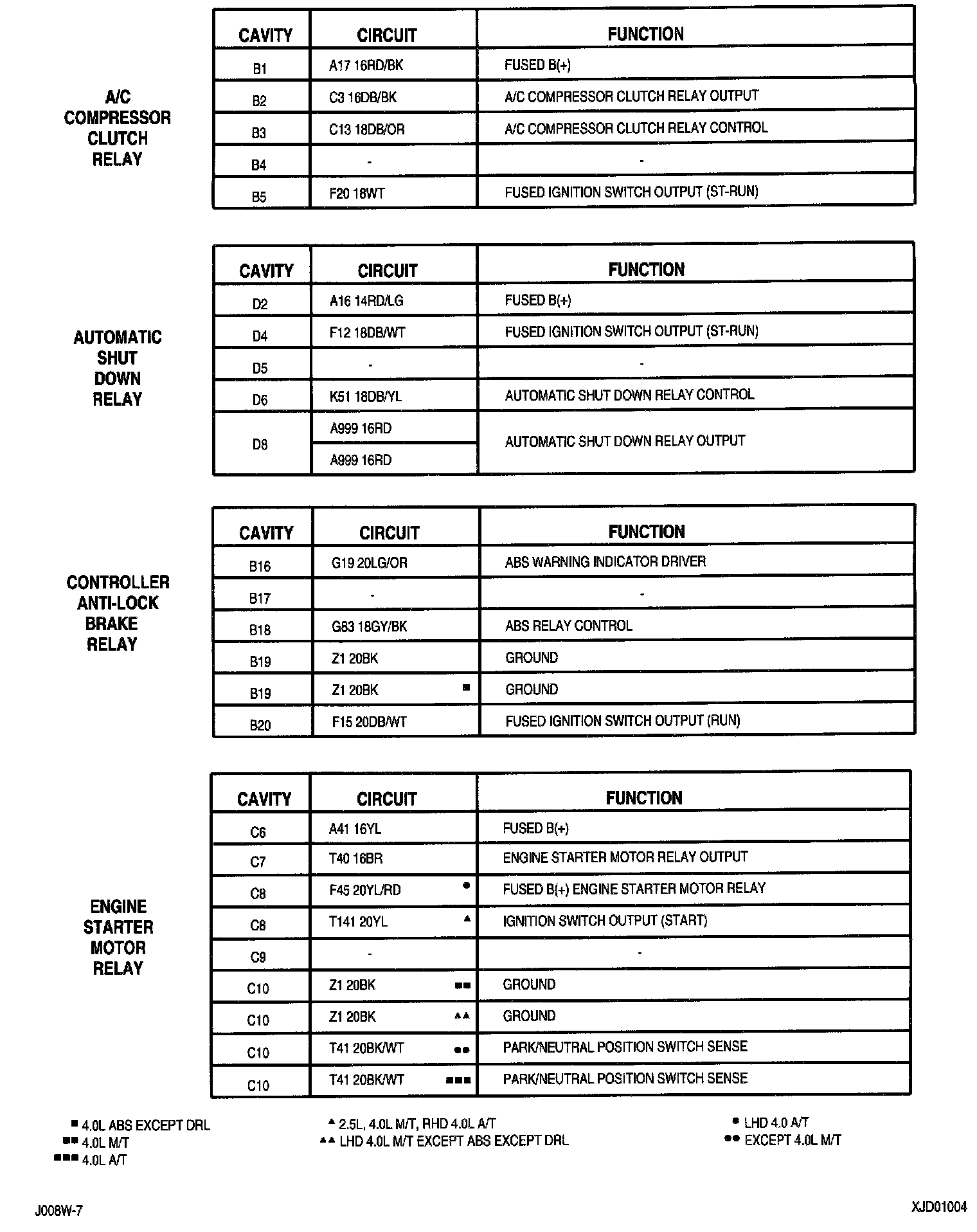

8W-10-4:

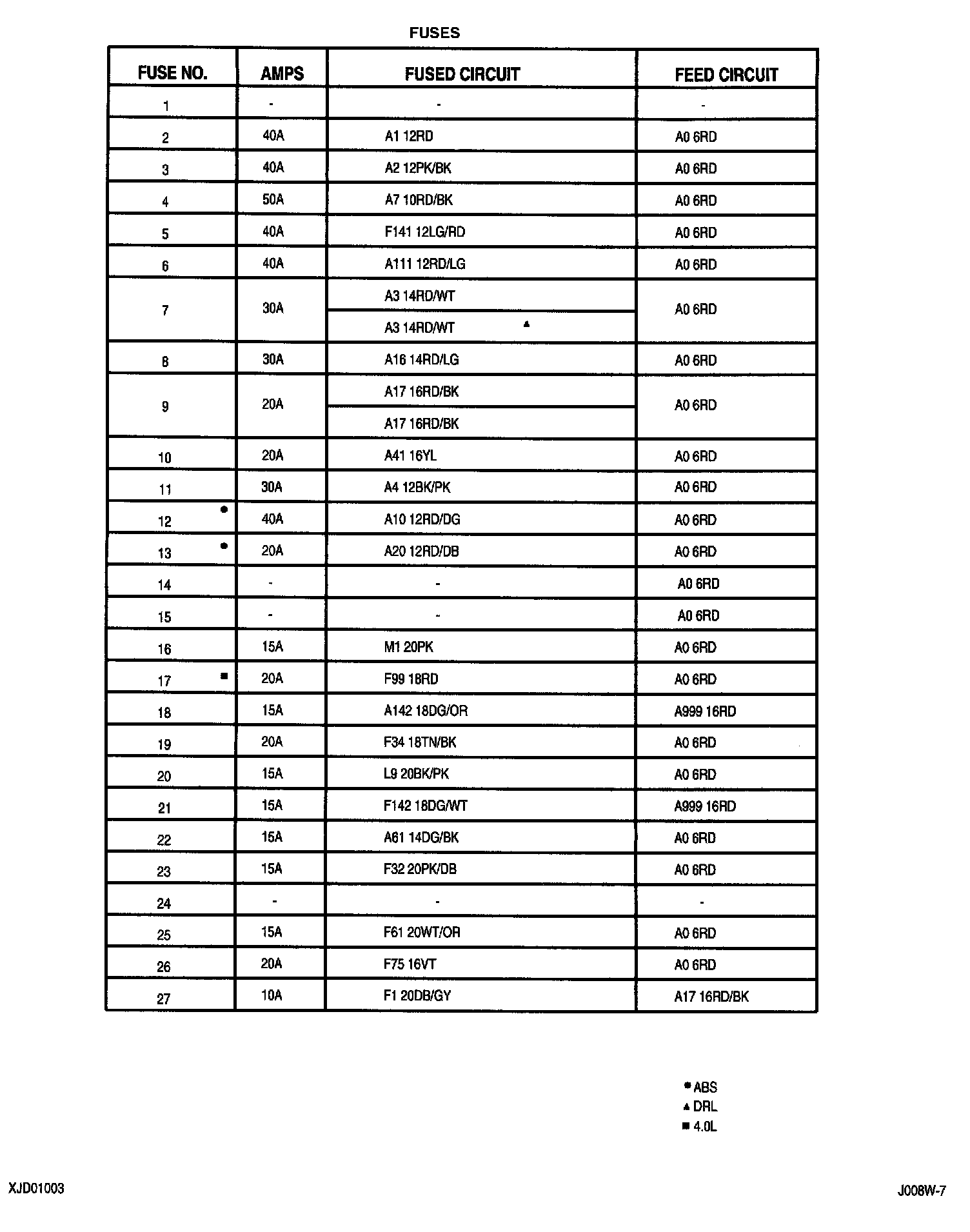

8W-10-5:
8W-10-6:
