Home >> Jeep >> 2000 >> Cherokee 2WD L4-2.5L VIN P >> Repair and Diagnosis >> Locations >> Connector Locations >> Figure 29

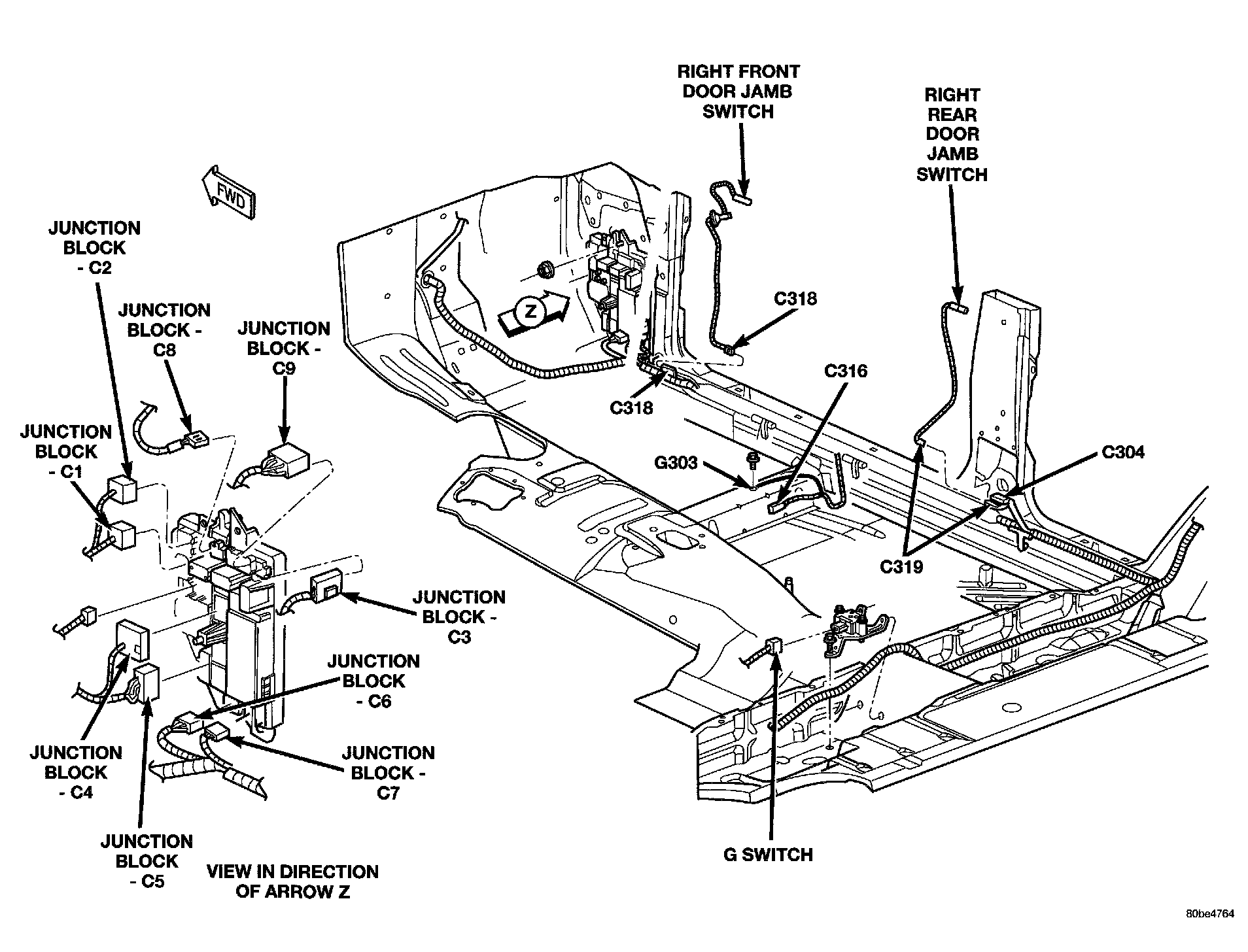

Figure 29

Right Side Body and Junction Block:
