Home >> Jeep >> 2000 >> Cherokee 2WD L4-2.5L VIN P >> Repair and Diagnosis >> Locations >> Connector Locations >> Figure 21

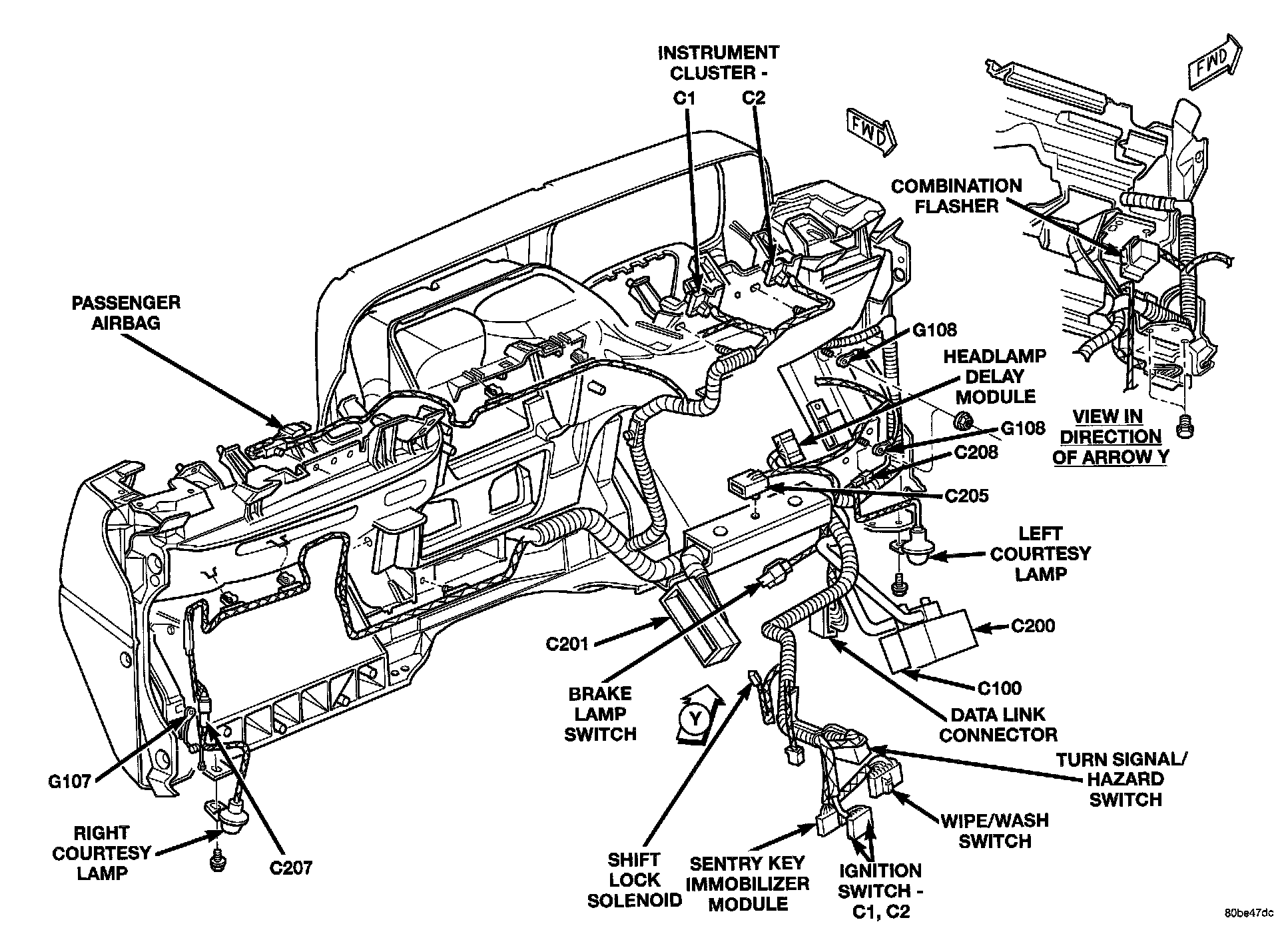

Figure 21

Instrument Panel LHD:
