Fuel Filter: Locations

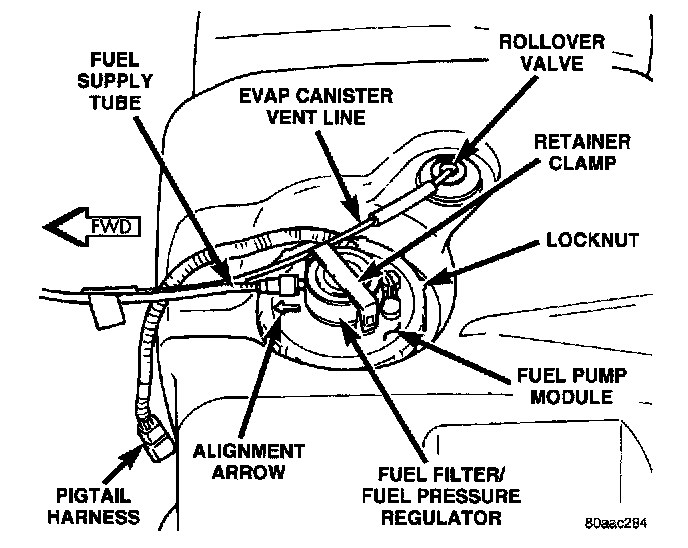

Fuel Pump Module Components:





A combination fuel filter and fuel pressure regulator is located on the top of fuel pump module.
