Ambient Temperature Sensor / Switch HVAC

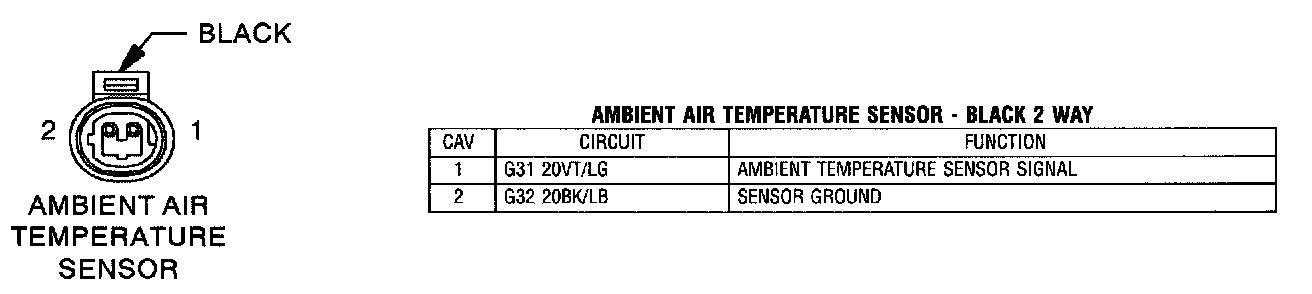

Ambient Air Temperature Sensor:




Ambient Air Temperature Sensor - Black 2 Way

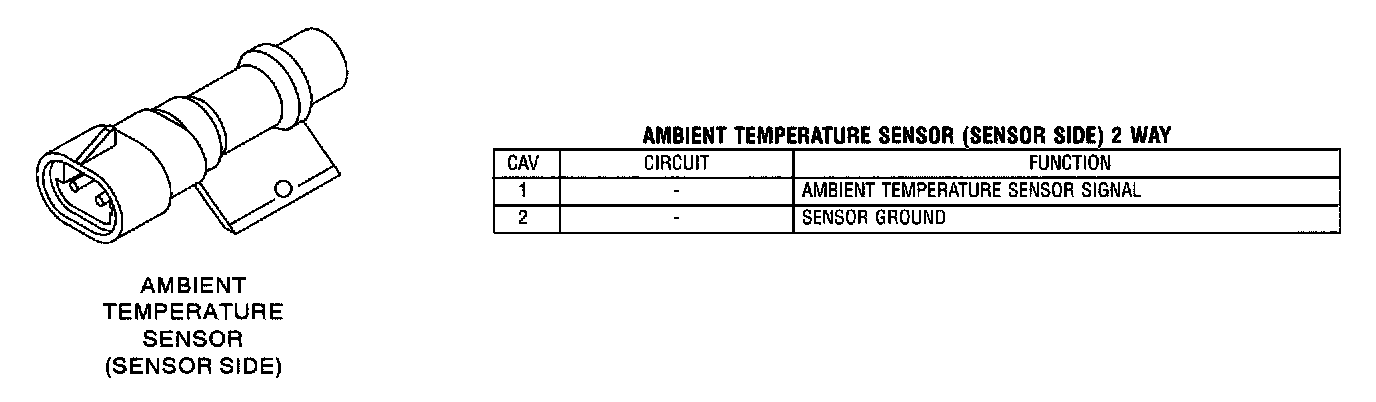

Ambient Temperature Sensor (Sensor Side):




Ambient Temperature Sensor (Sensor Side) - 2 Way
