Home >> Jeep >> 1998 >> Cherokee 2WD L6-4.0L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle

Manual Transmission/Transaxle

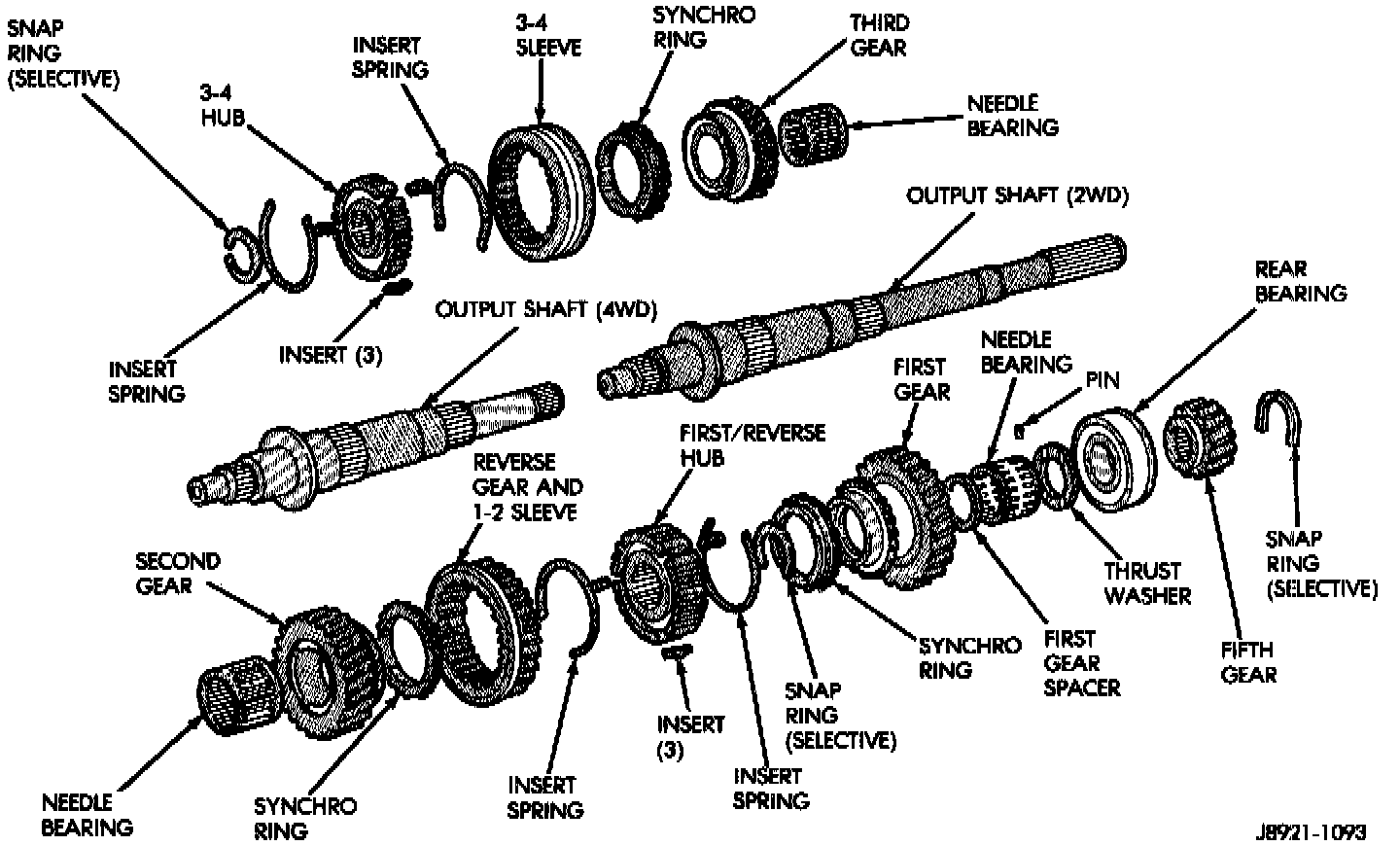

Output Shaft And Gears:



Output Shaft And Gears:
