Home >> Jeep >> 1998 >> Cherokee 2WD L6-4.0L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> 8 1/4 Axle

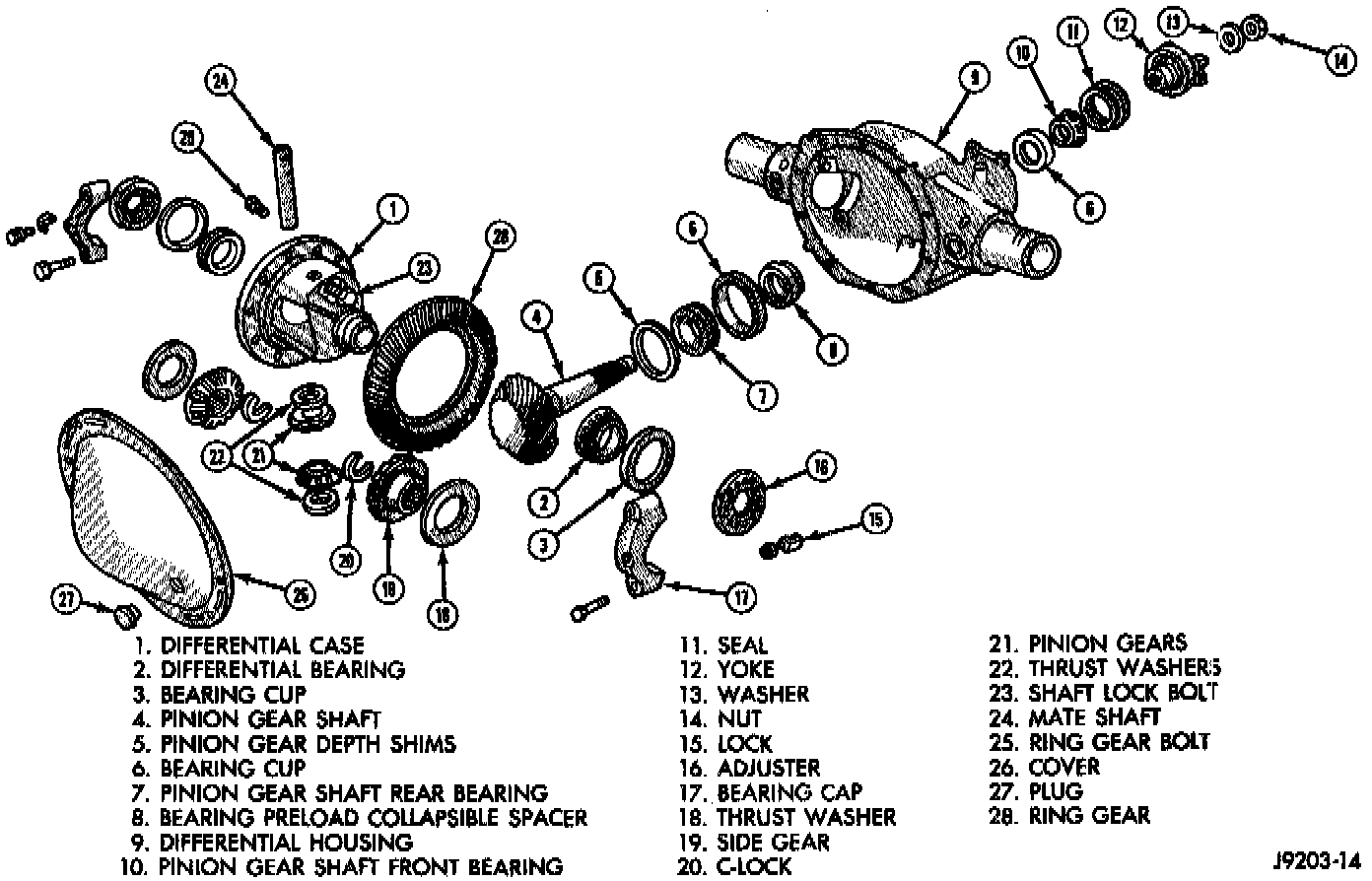

8 1/4 Axle

8 1/4 Axle:
