Clearance and Design Specifications

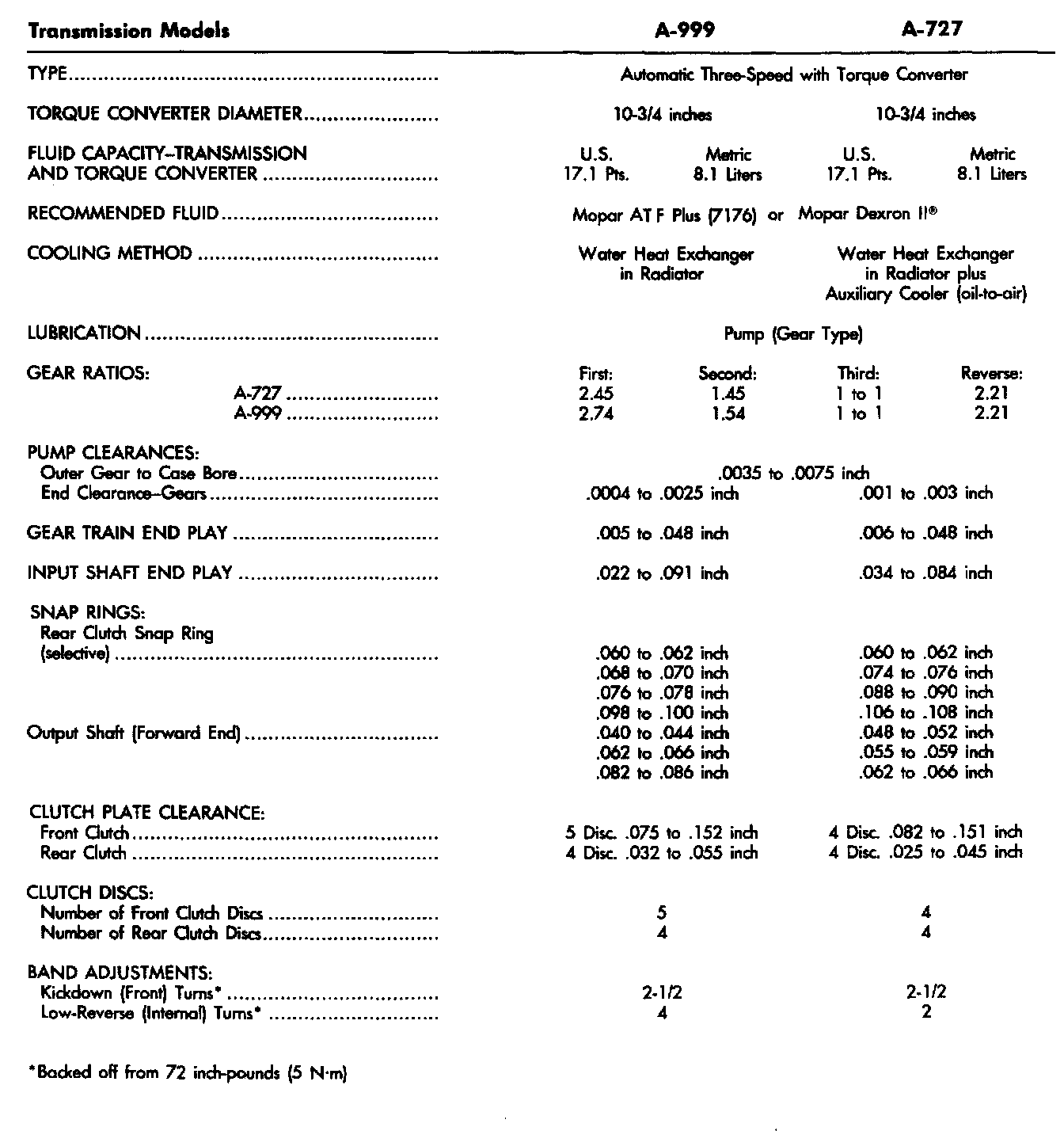

General Specifications:

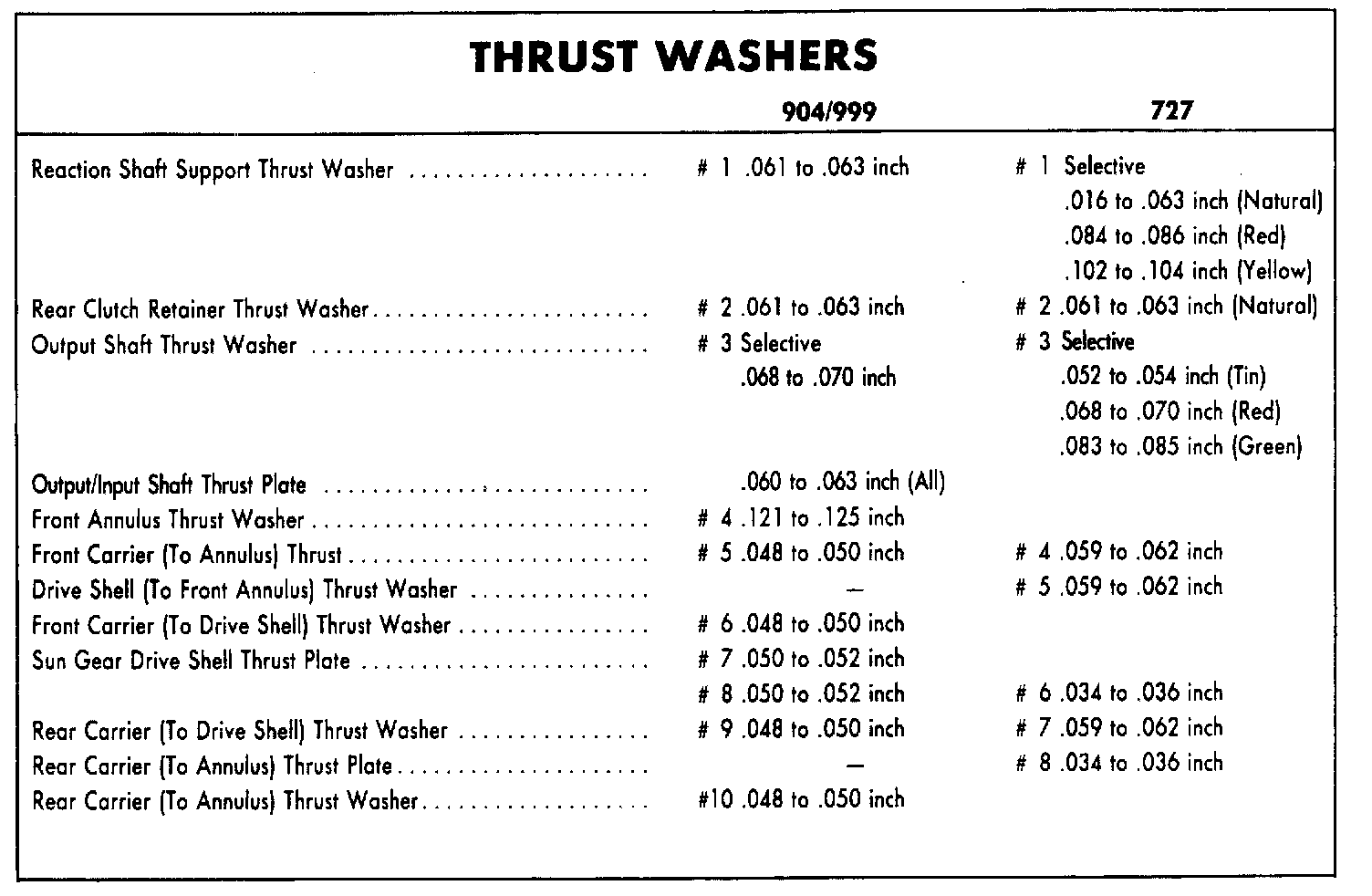

Thrust Washer Specifications Chart:

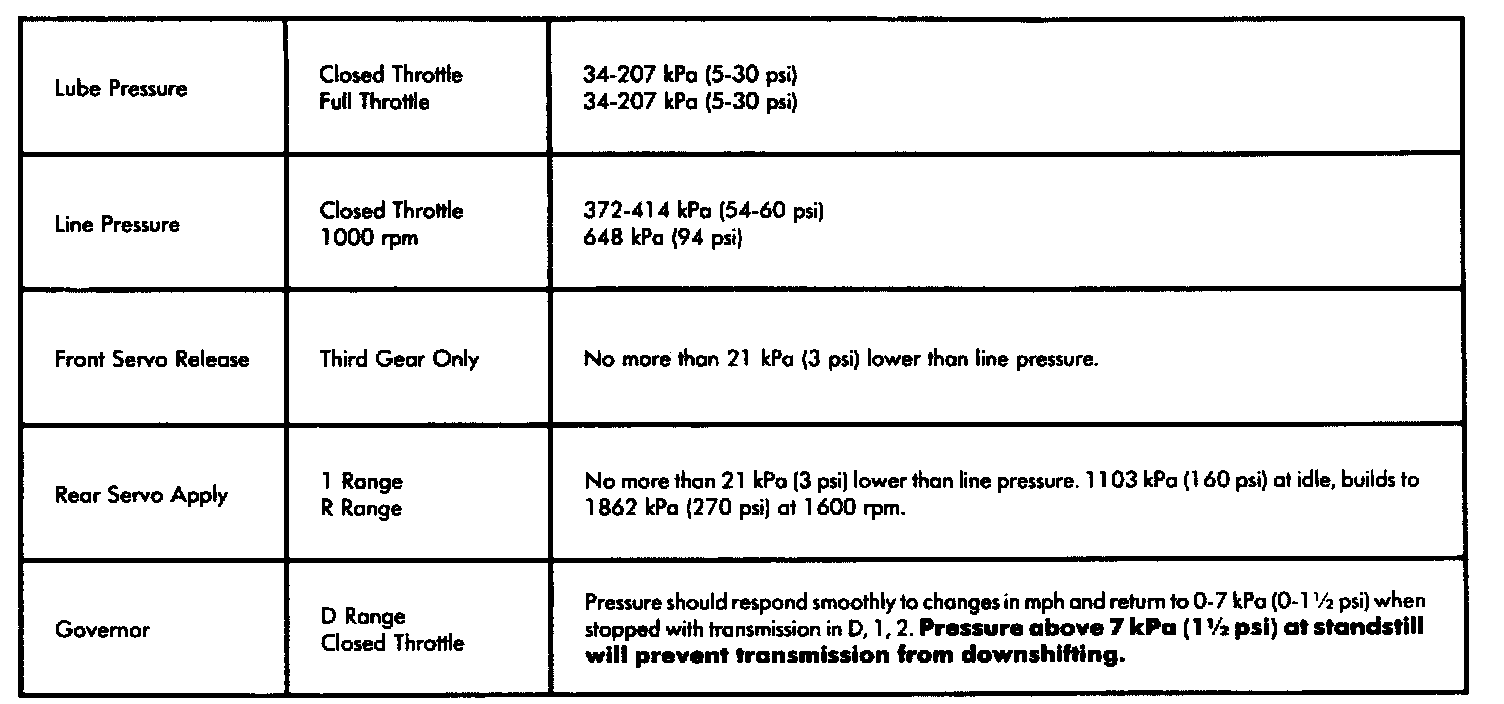

Pressure Test Specifications:

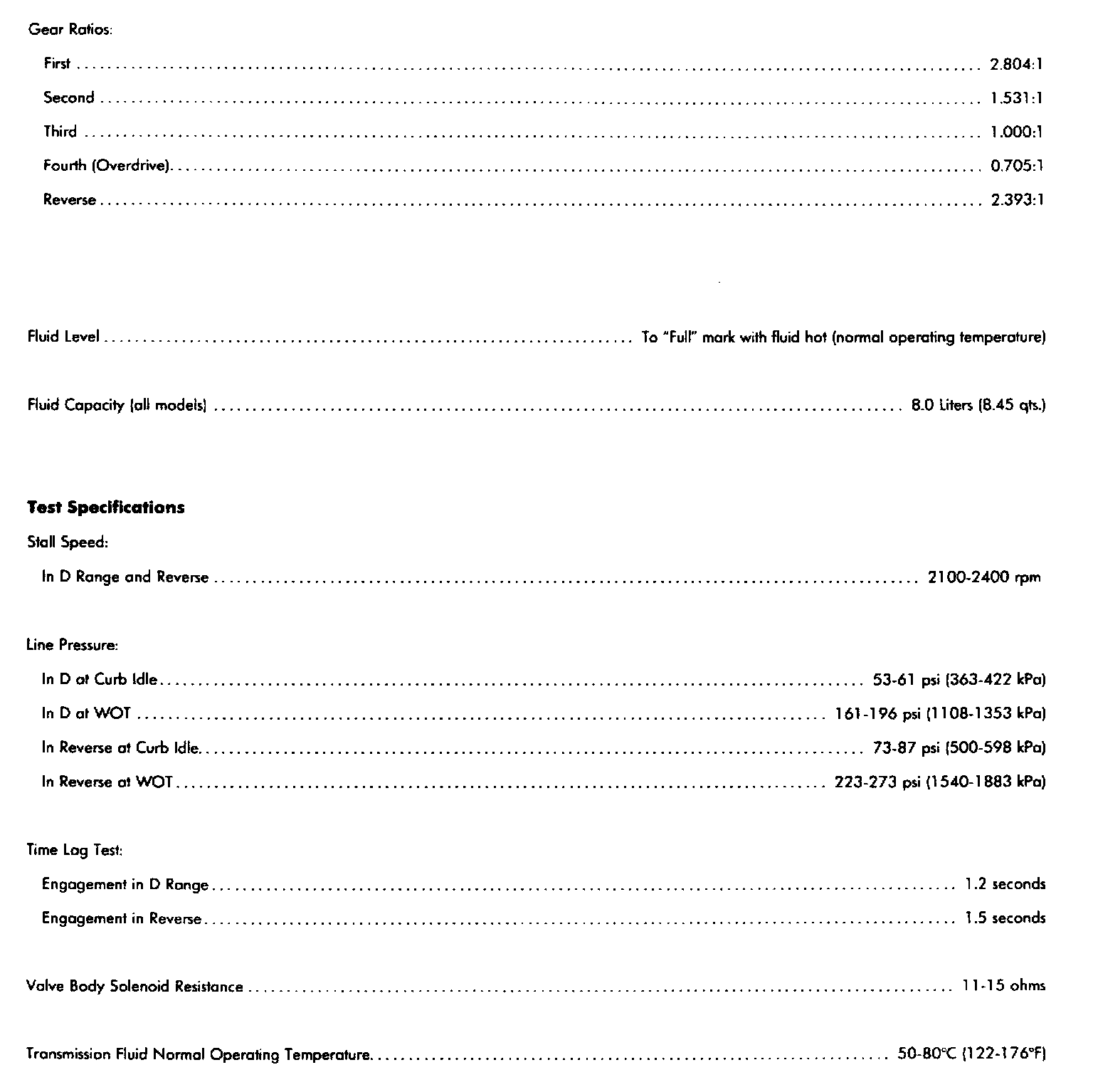

General Specifications:

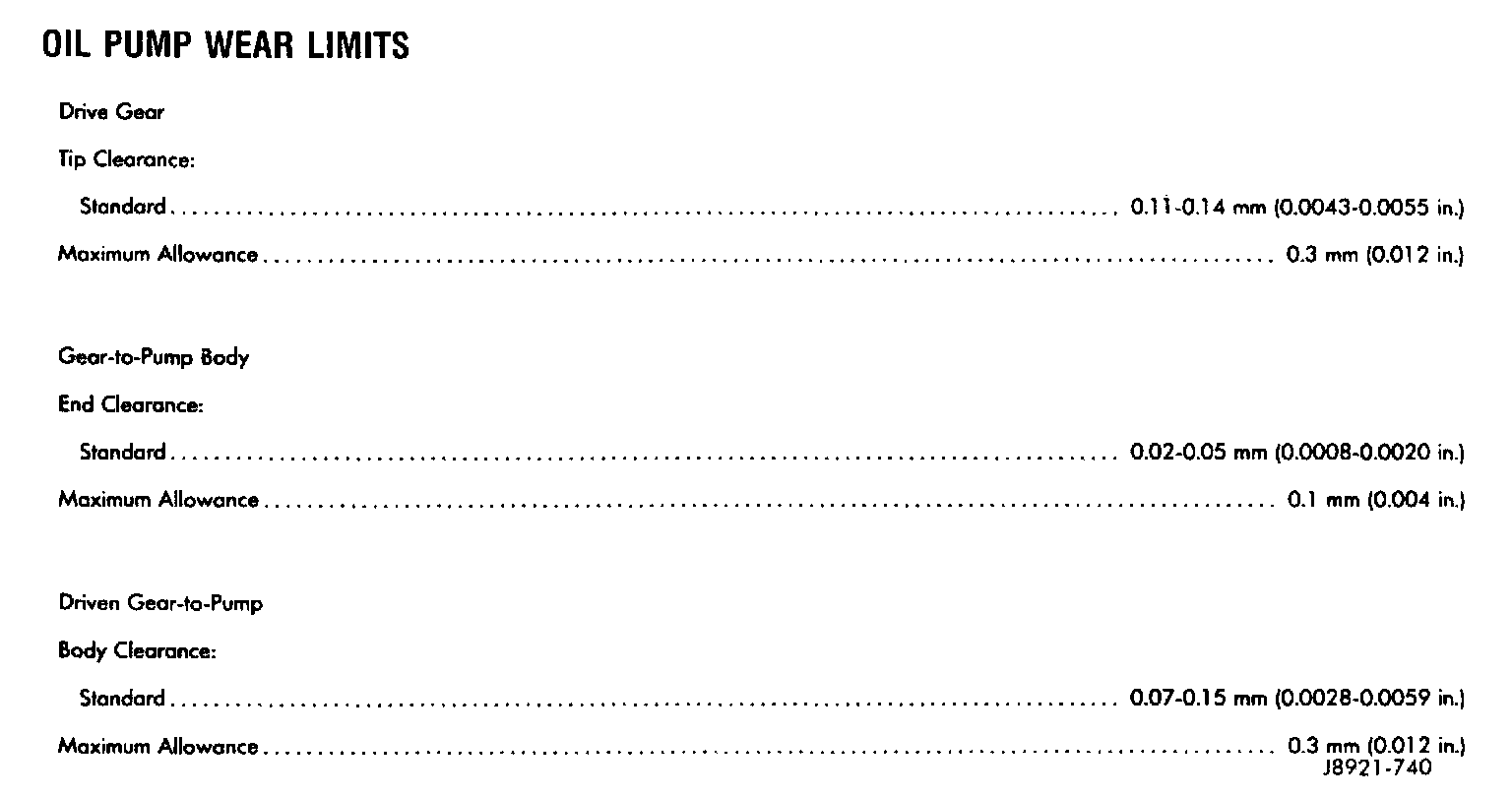

Oil Pump Wear Limits:

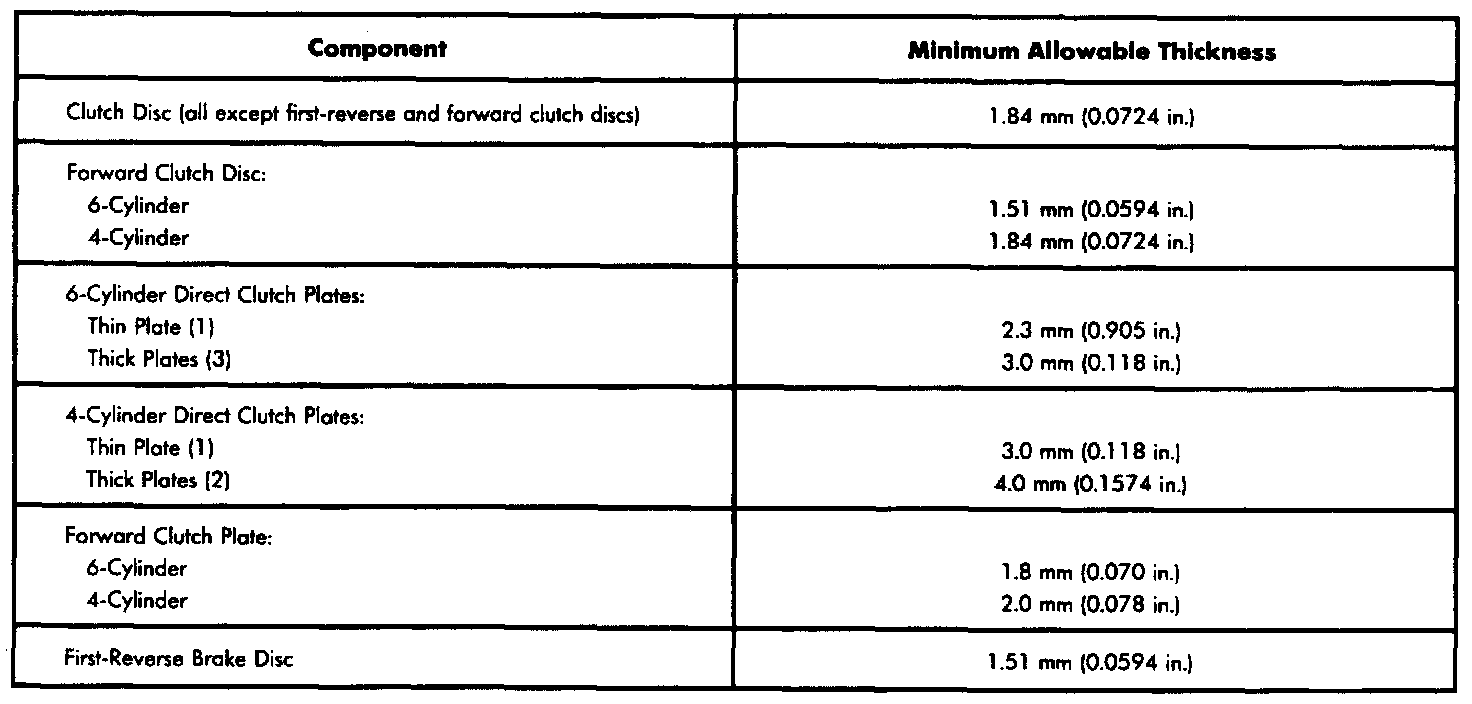

Clutch Disc And Plate Thickness Specifications:

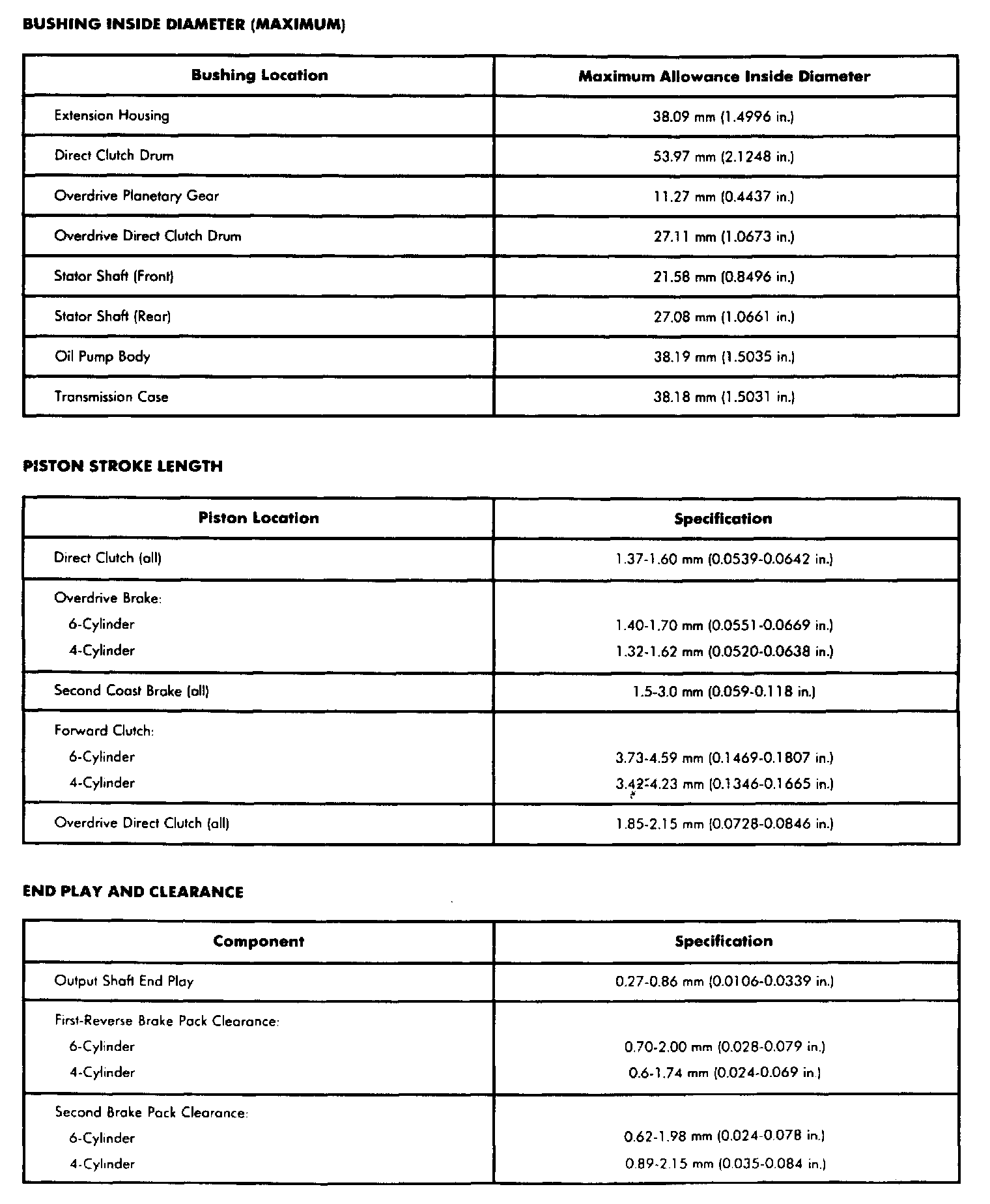

Bushing And Piston Clearance Specifications:

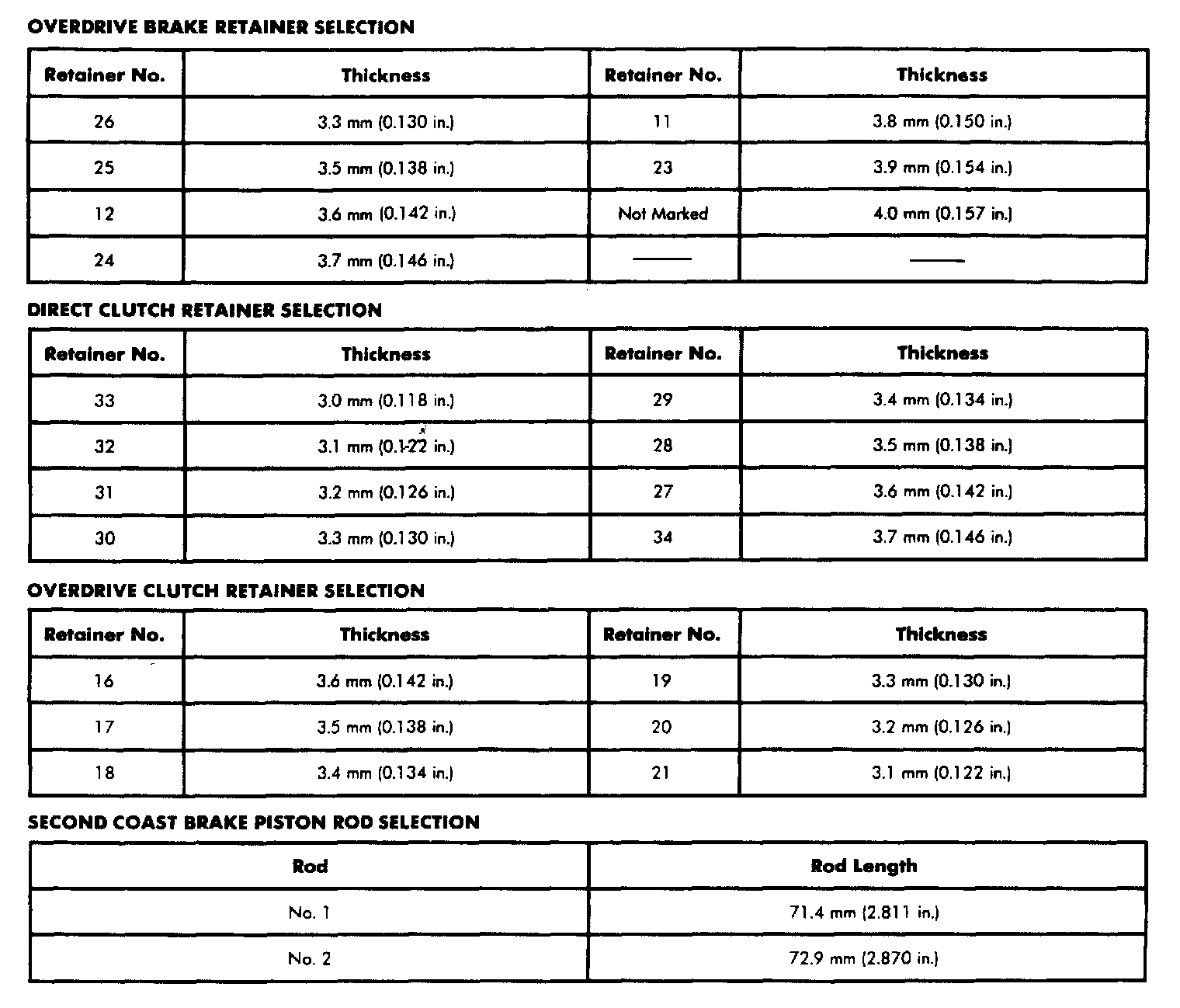

Retainer And Piston Specifications:

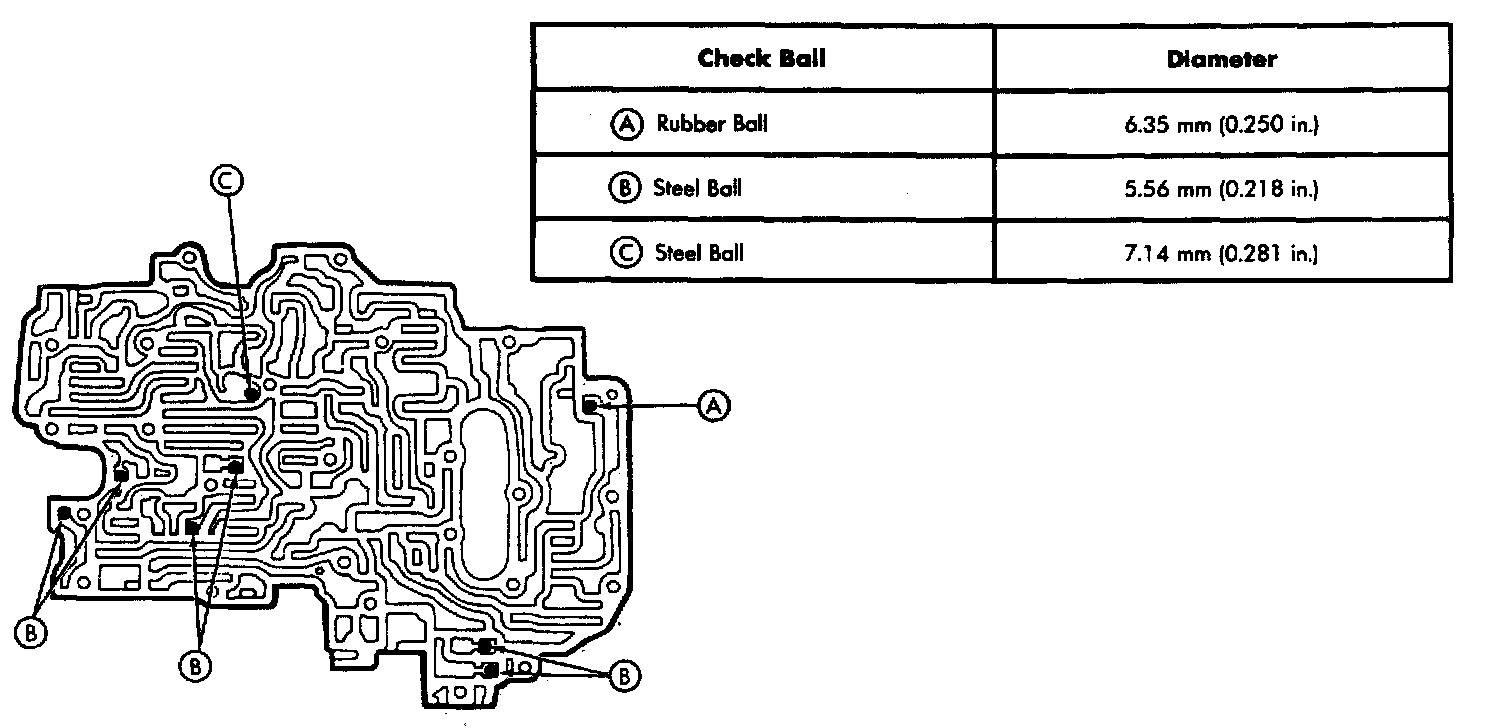

Valve Body Check Ball Dimensions:

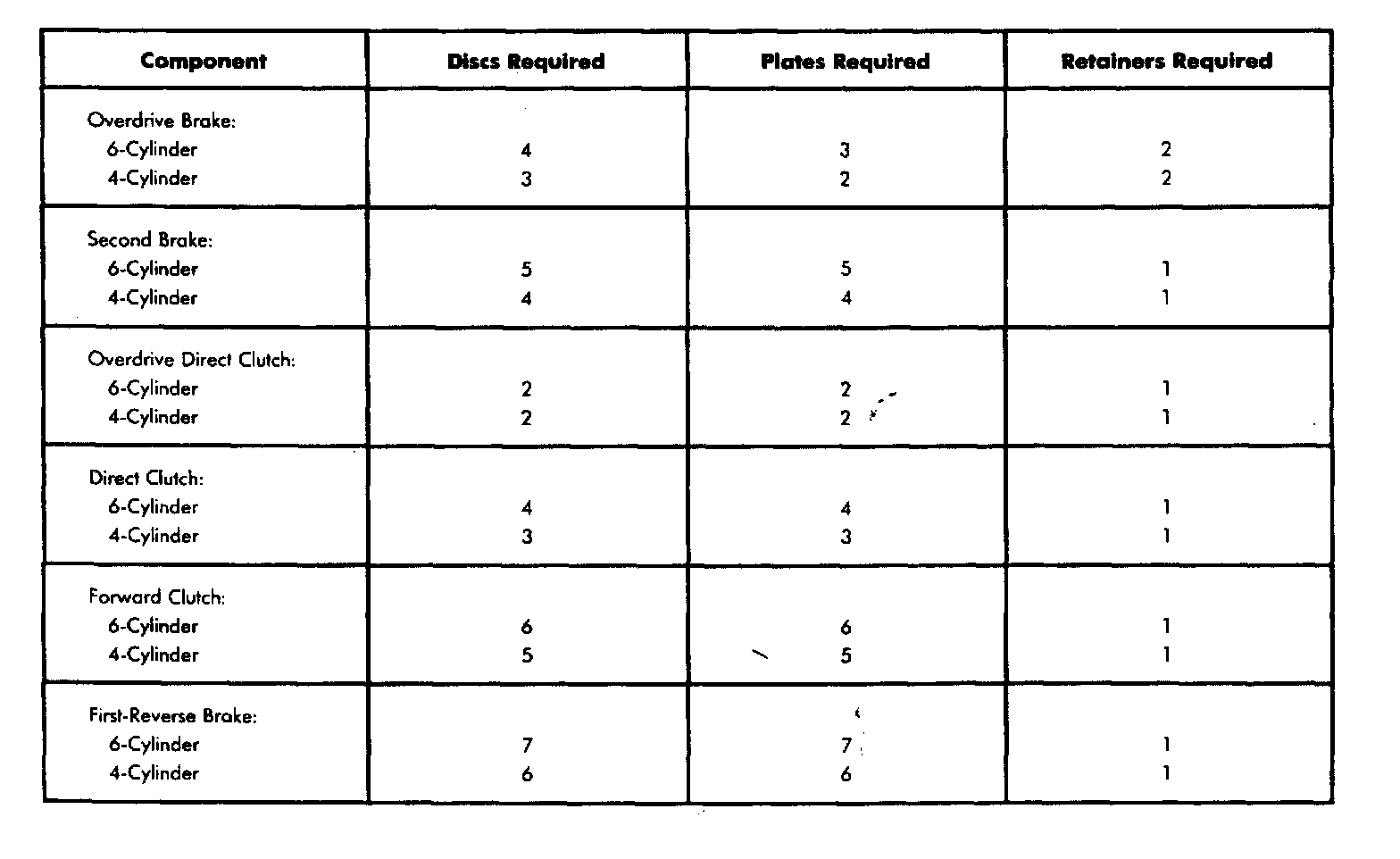

Clutch/Brake Pack Requirements:

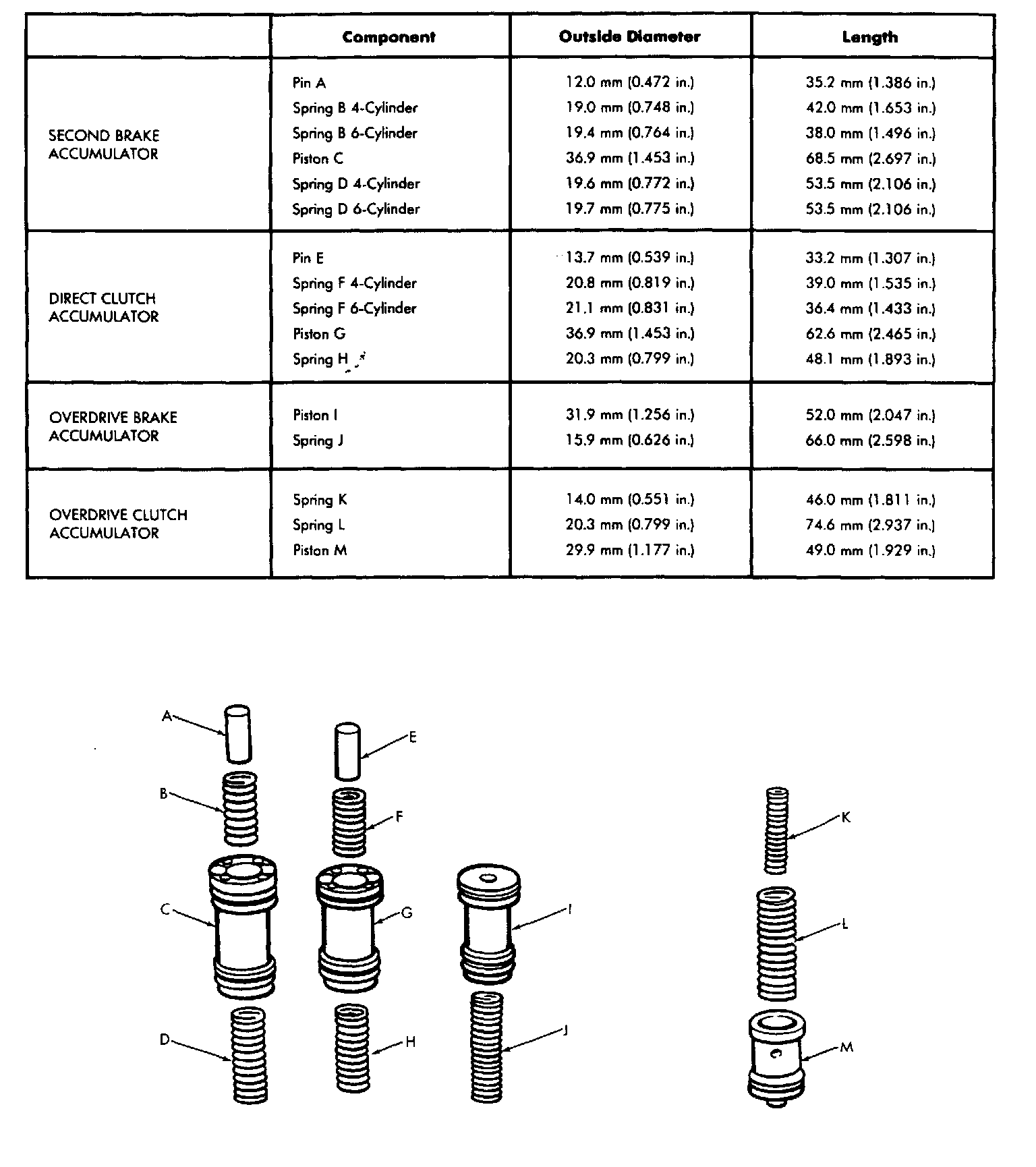

Accumulator Component Dimensions:

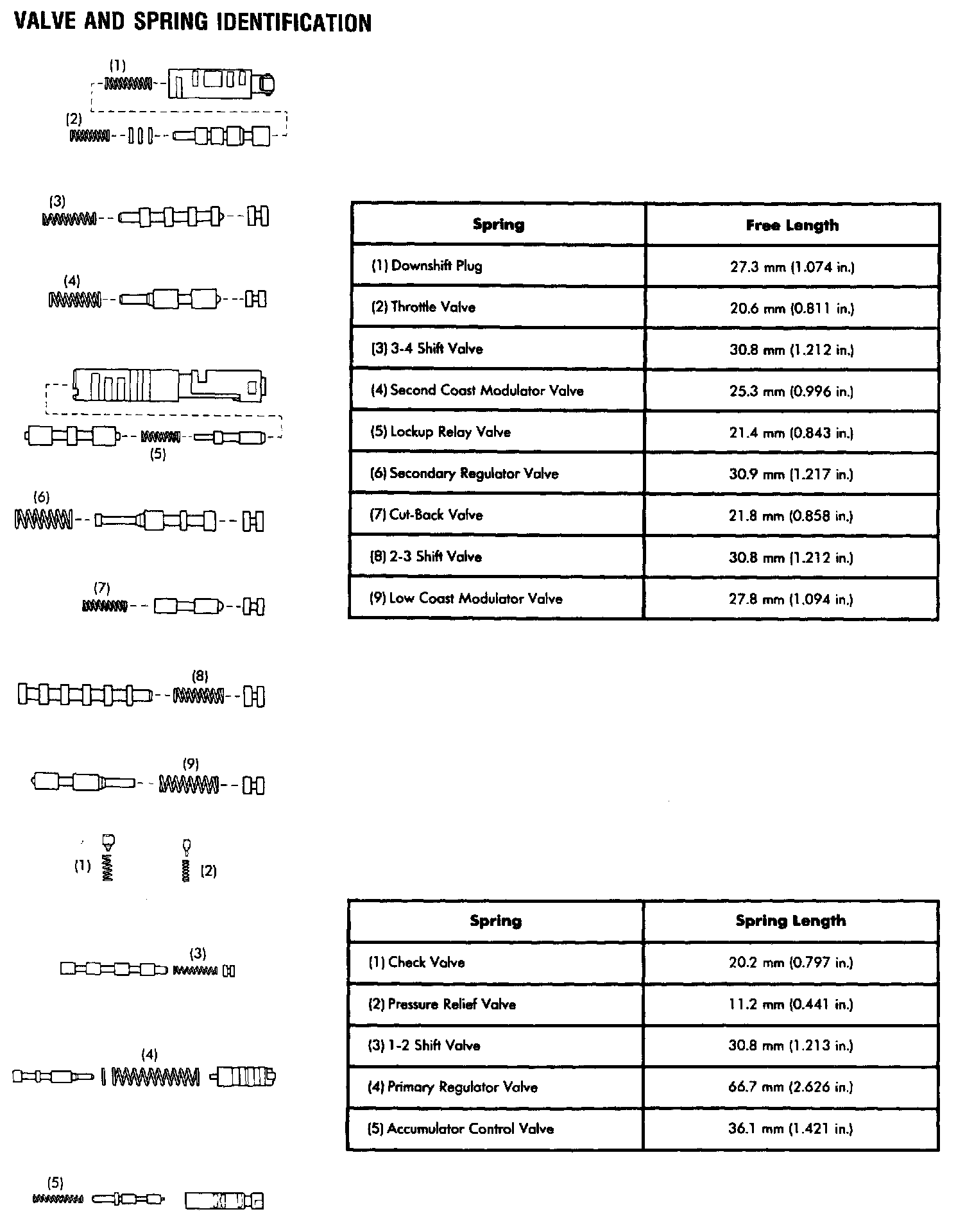

Valve And Spring Identification:
