LEMON Manuals
: Even more car manuals for everyone
Home
>>
Jeep
>>
1990
>>
Wrangler L6-258 4.2L VIN T 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
>>
Coolant Temperature Sensor
Coolant Temperature Sensor
Engine Components.:

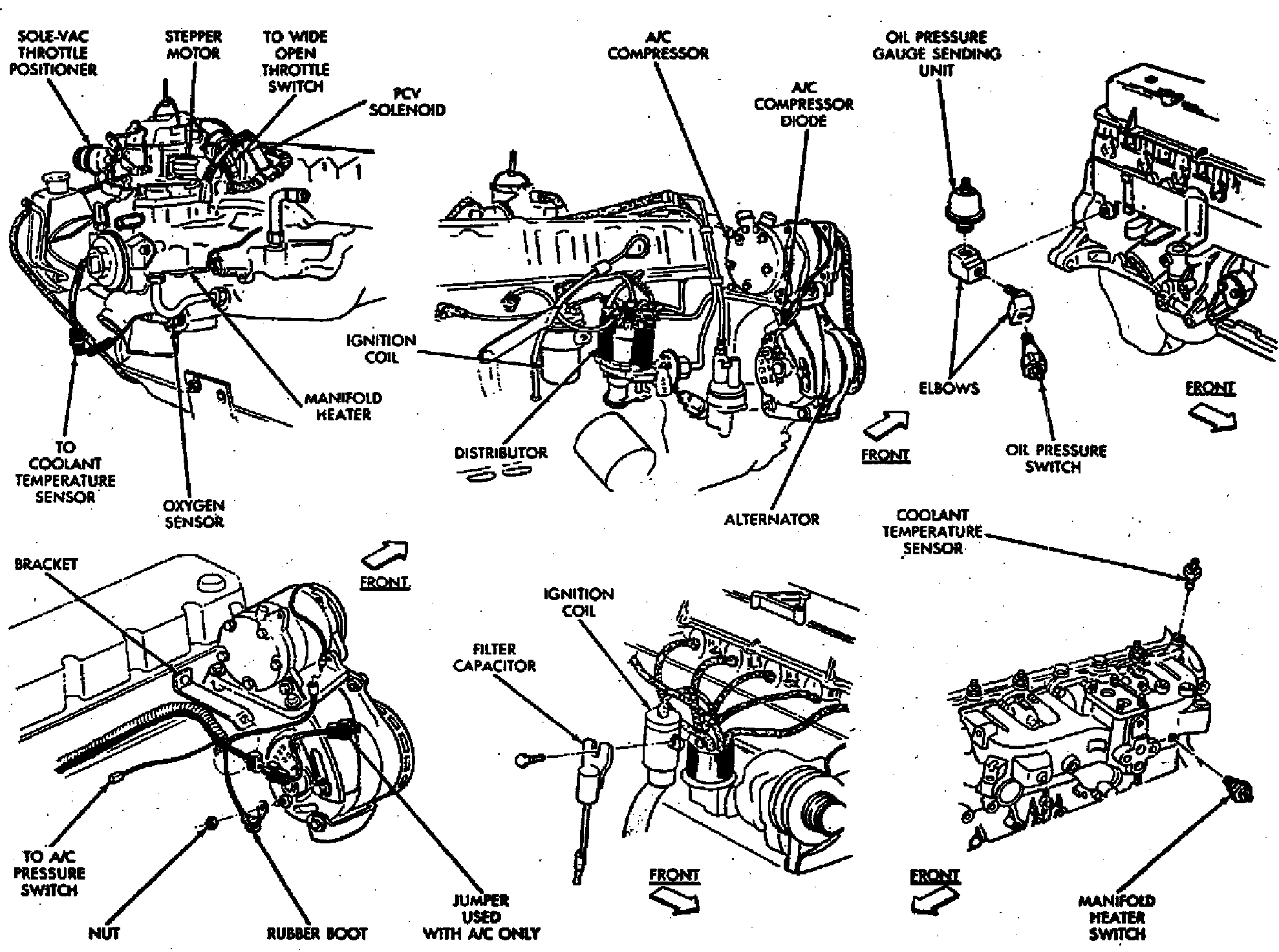

Engine Components.:
Upper Rear LH Side Of Engine
Applicable to: 6-258/4.2L Engine
