Tailgate Latch

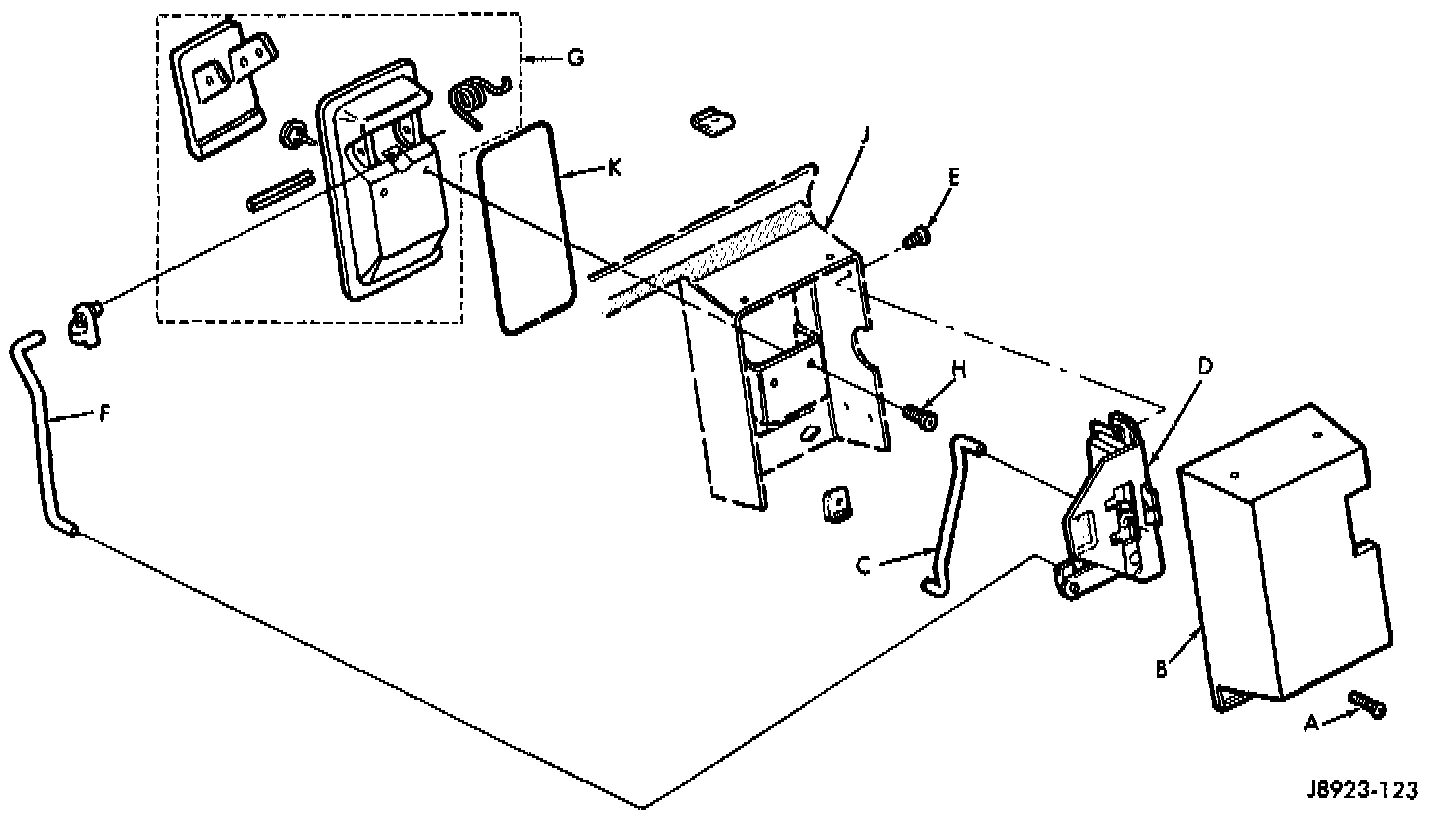

Tailgate Latch Mechanism:

Letter Description
A SCREW (3)
B LATCH OVER
C LOCK SLIDER ROD
D LATCH MECHANISM
E LATCH-TO-TAILGATE SCREW
F TAILGATE LATCH ROD
G HANDLE
H HANDLE SCREW (2)
J LATCH MECHANISM HOUSING
K SEAL
