Power Windows: Testing: Notes

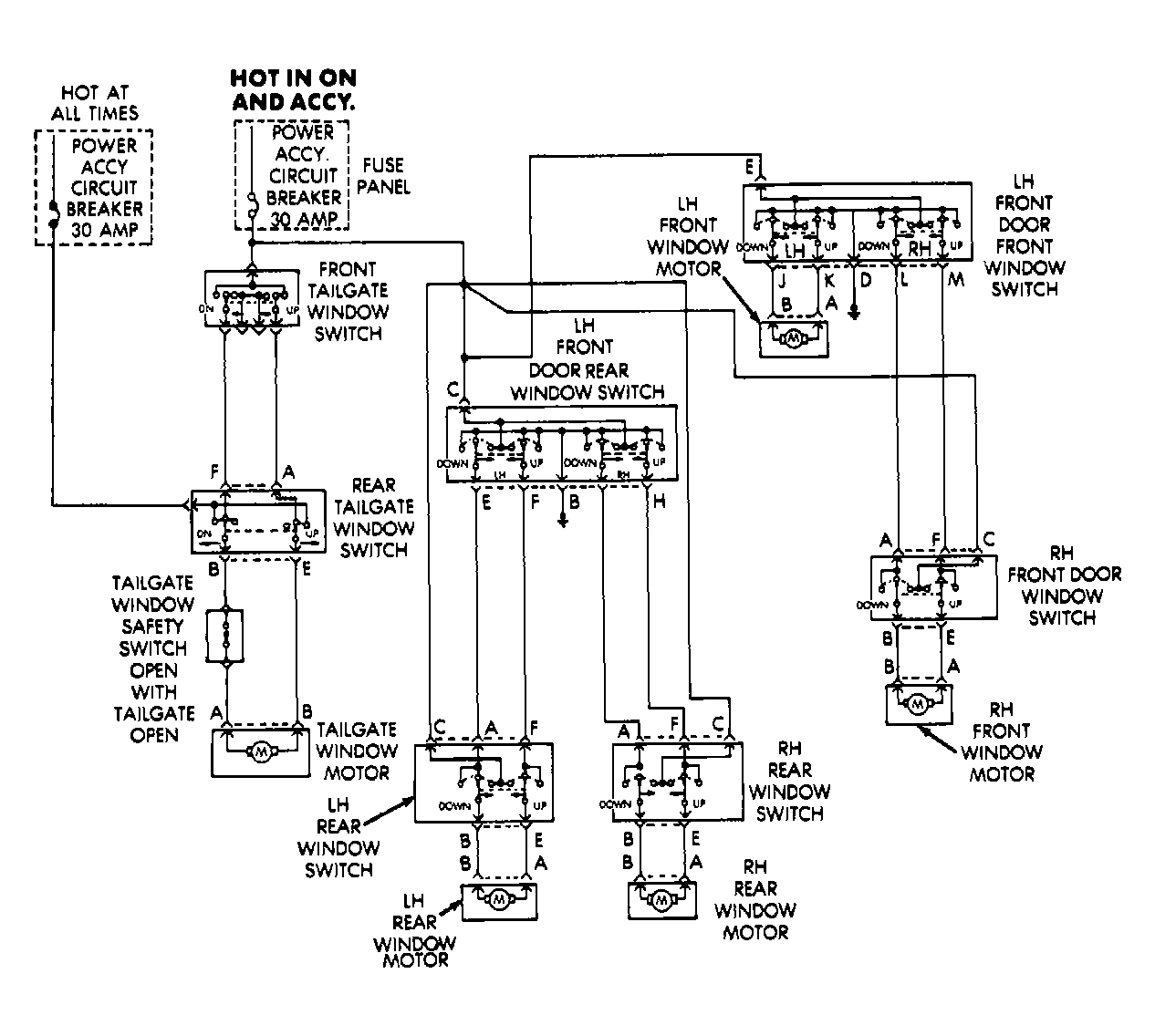

Fig 1: Grand Wagoneer Power Window Wiring Schematic

G90H14917

Courtesy of CHRYSLER MOTORS.
