Jeep
>>
1987
>>
Wrangler L6-258 4.2L VIN C 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>

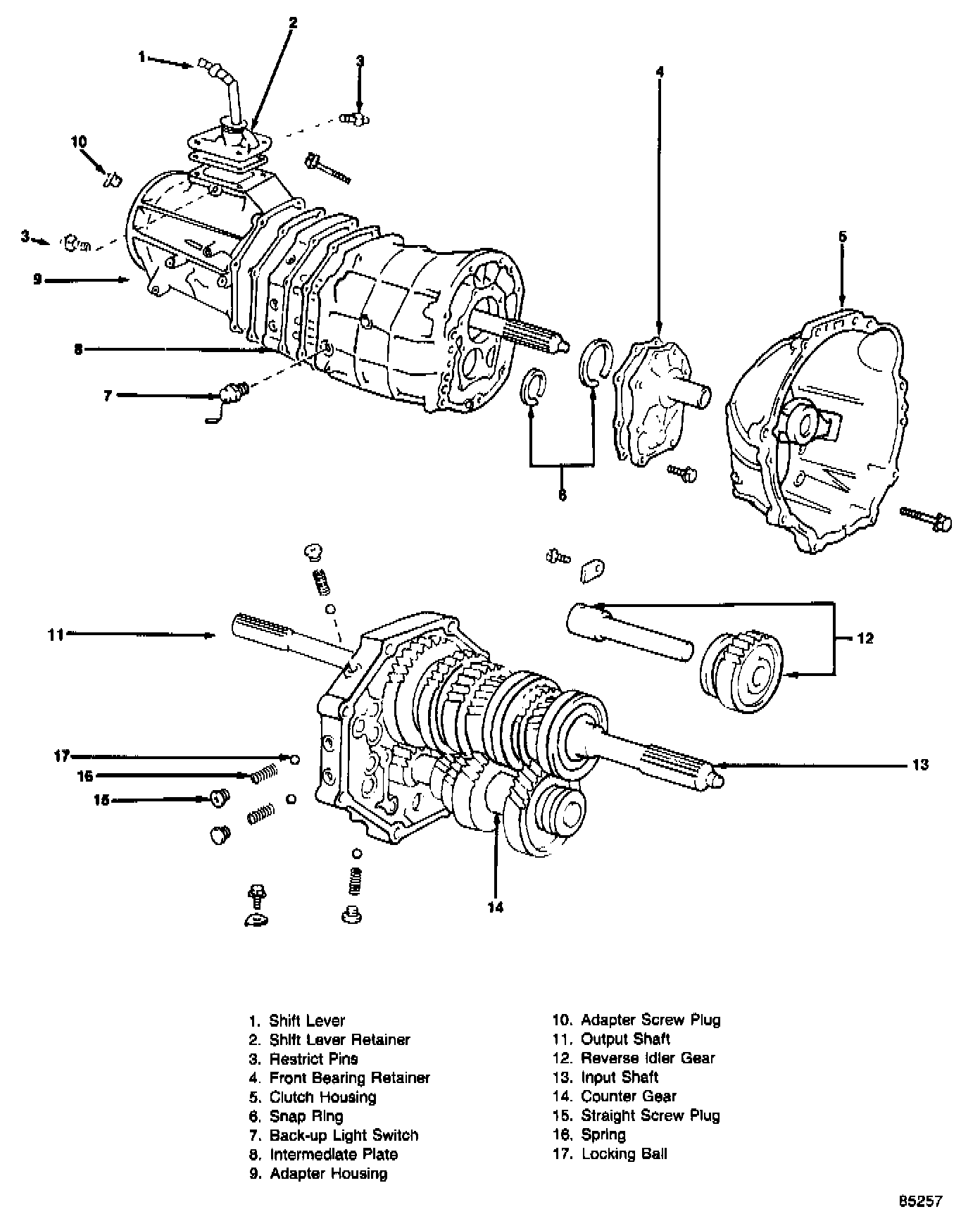

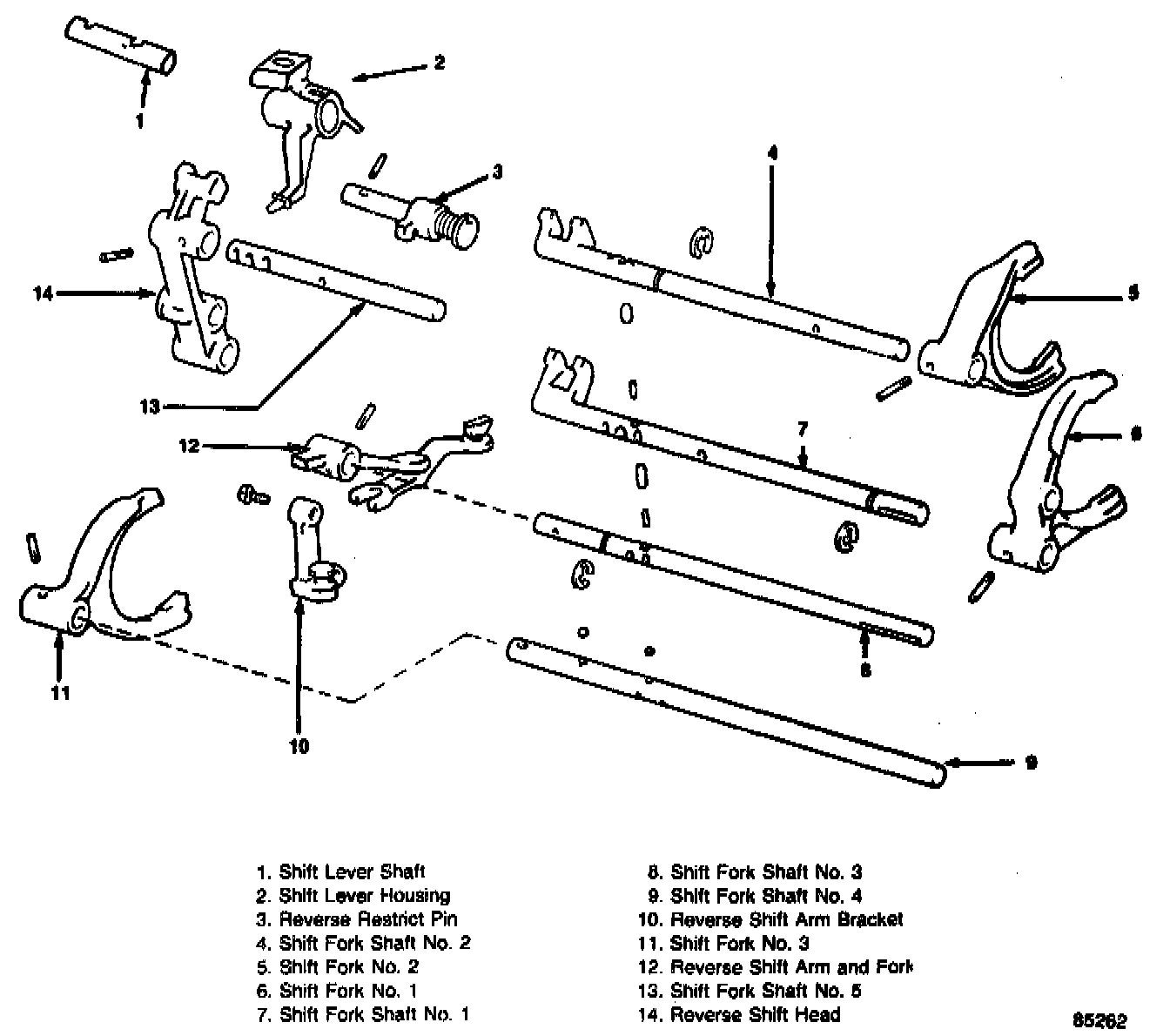

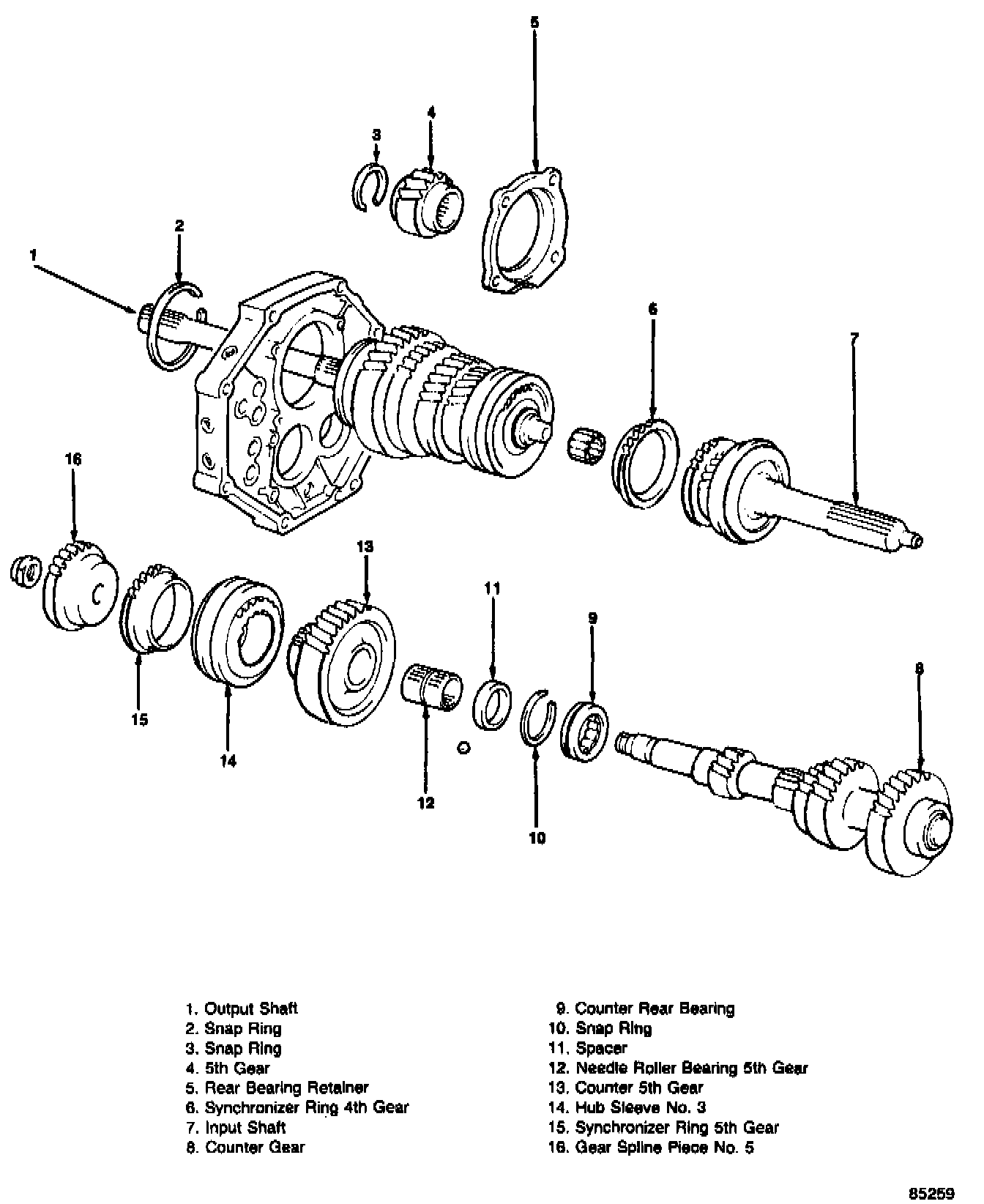

AX4 Transmission - Exploded Views
AX4 Transmission - Exploded Views
