Home >> Jeep >> 1987 >> Cherokee 2WD L4-150 2.5L VIN H TBI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations

Coolant Temperature Sensor/Switch (For Computer): Locations

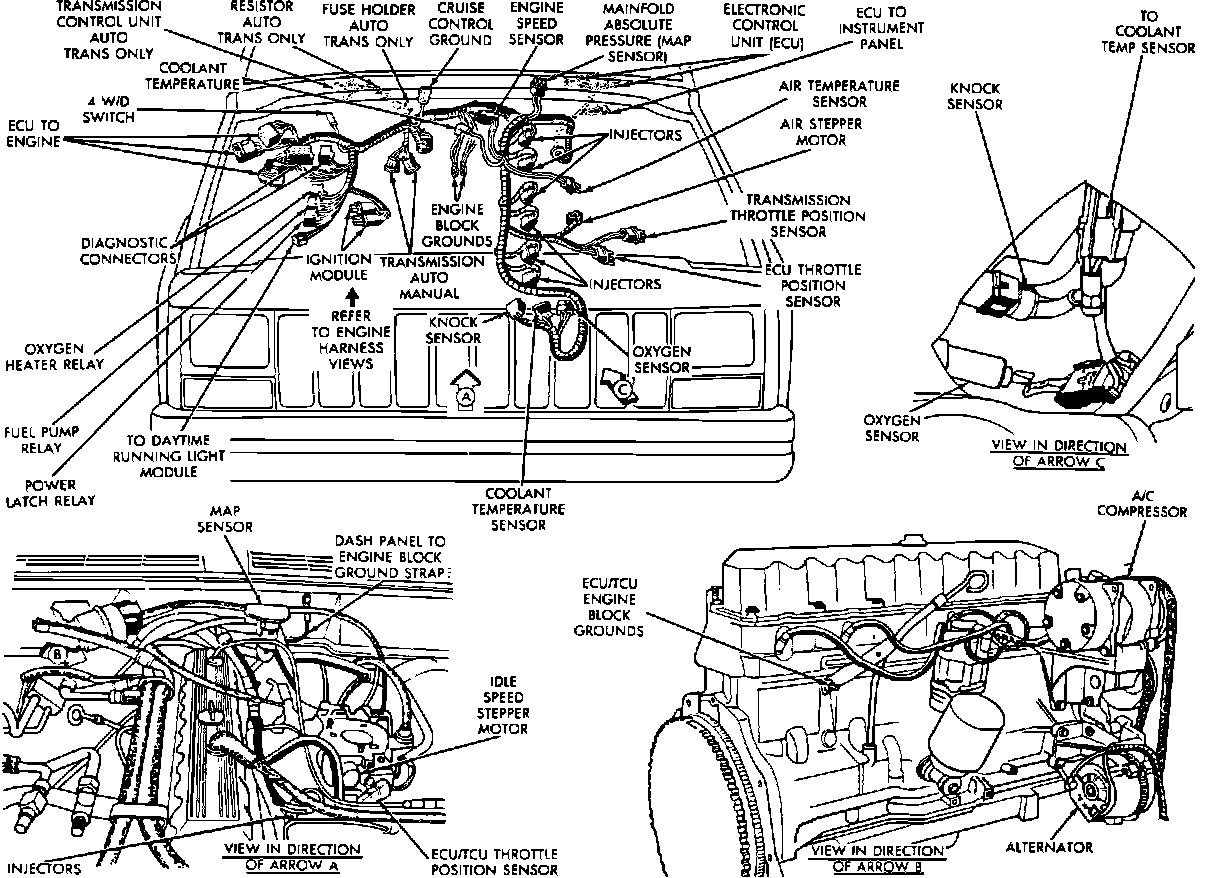

Engine Compartment Components.:




Center Front Of Engine Compartment

Applicable to: 6-243/4.0L Engine
