Ride Height Sensor, Suspension Control
>>

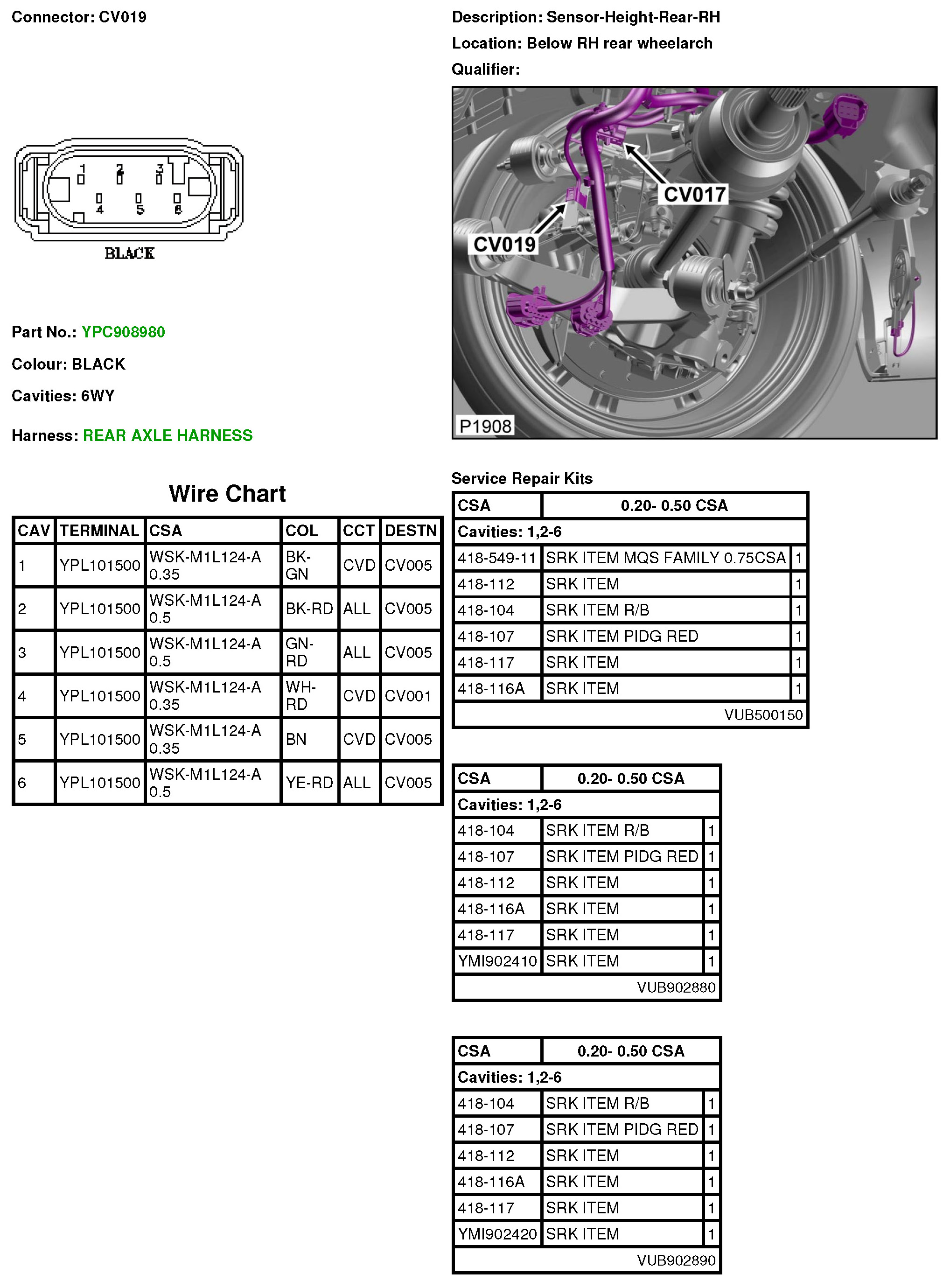

CV019 Sensor-Height-Rear-RH
CV019 Sensor-Height-Rear-RH
CV019
