Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Distance Sensor
>>

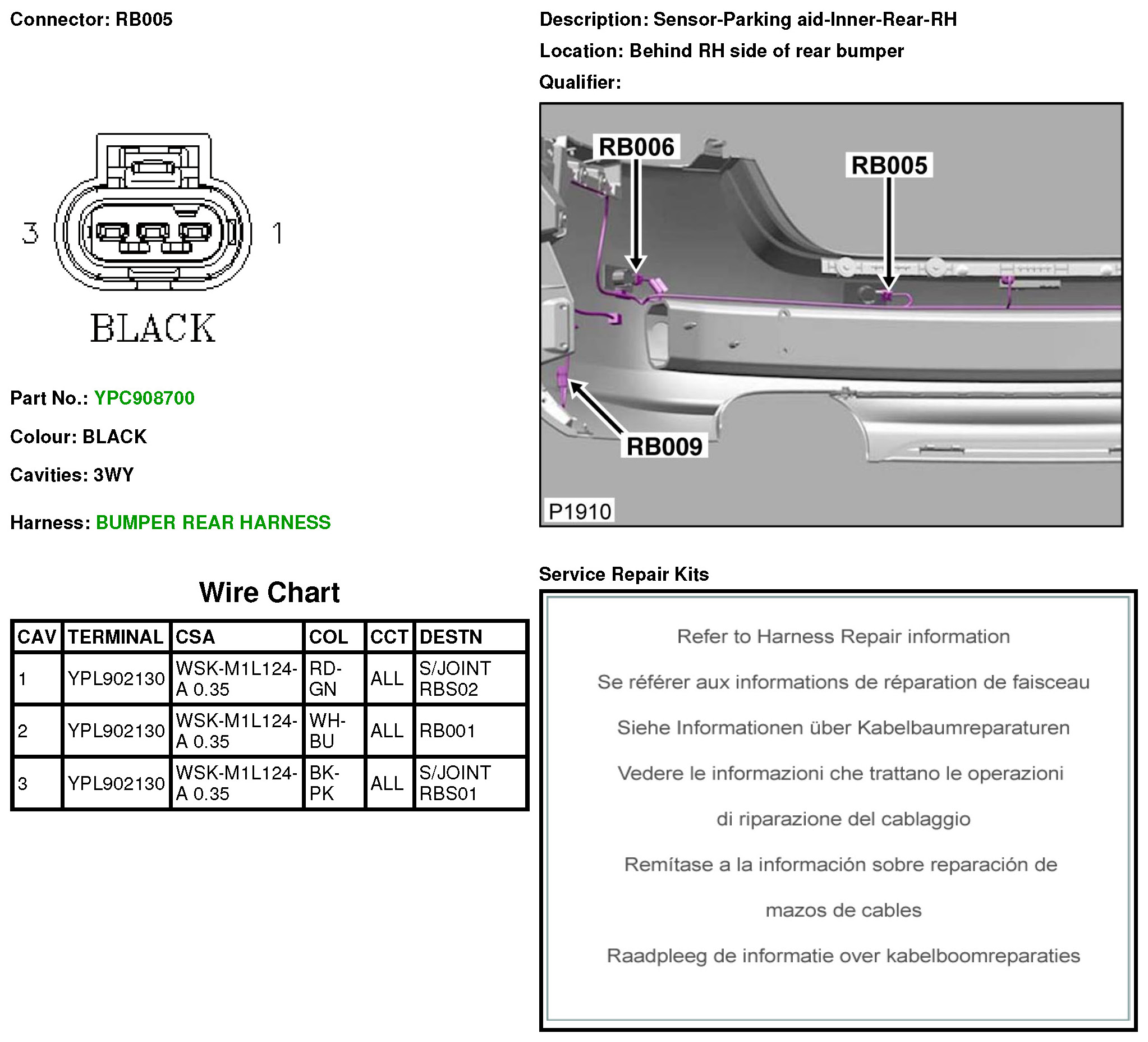

RB005 Sensor-Parking aid-Inner-Rear-RH
RB005 Sensor-Parking aid-Inner-Rear-RH
RB005
