Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Control Module
>>

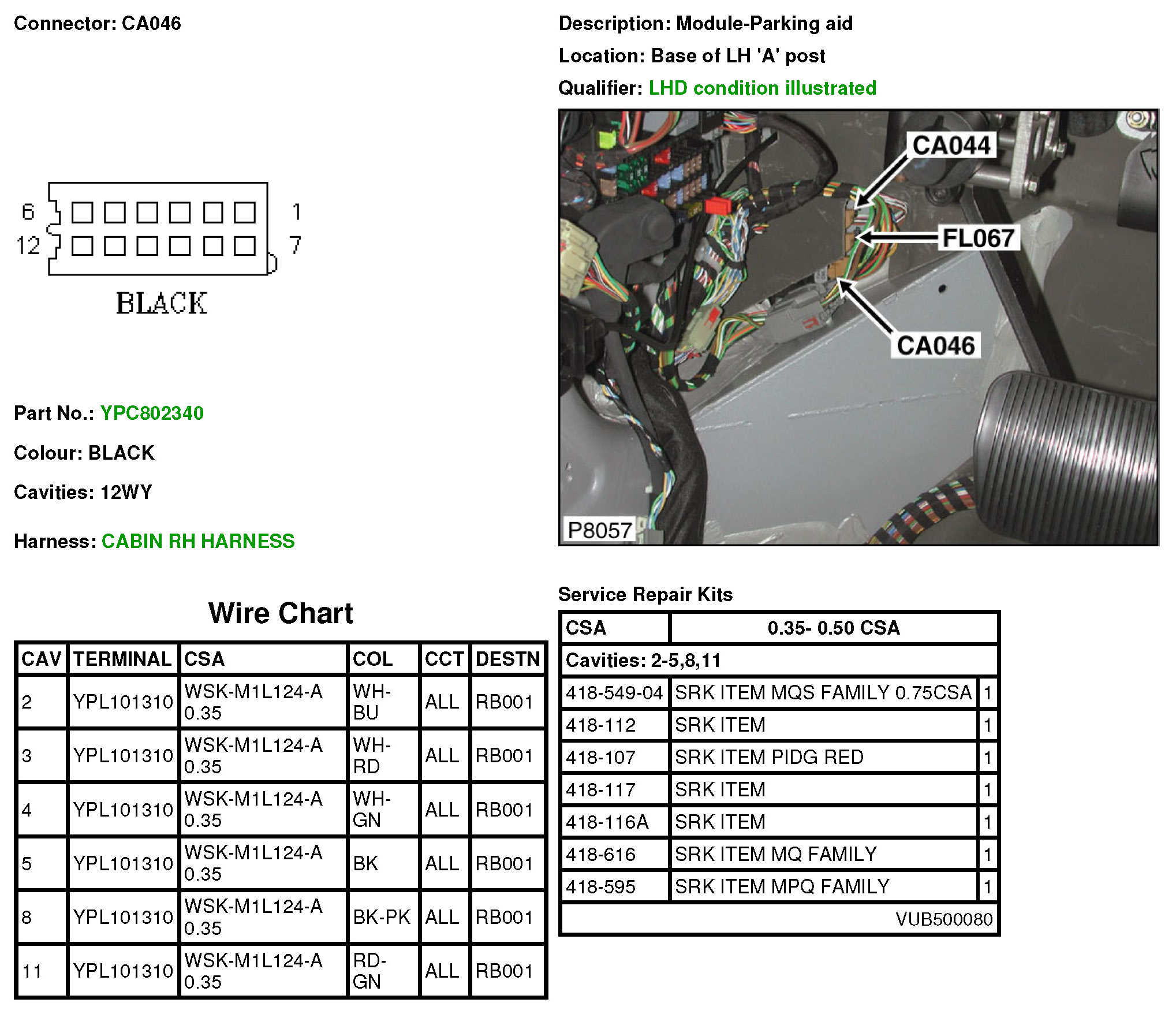

CA046 Module-Parking Aid
CA046 Module-Parking Aid
CA046
