Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> DD014 Module-Driver Door

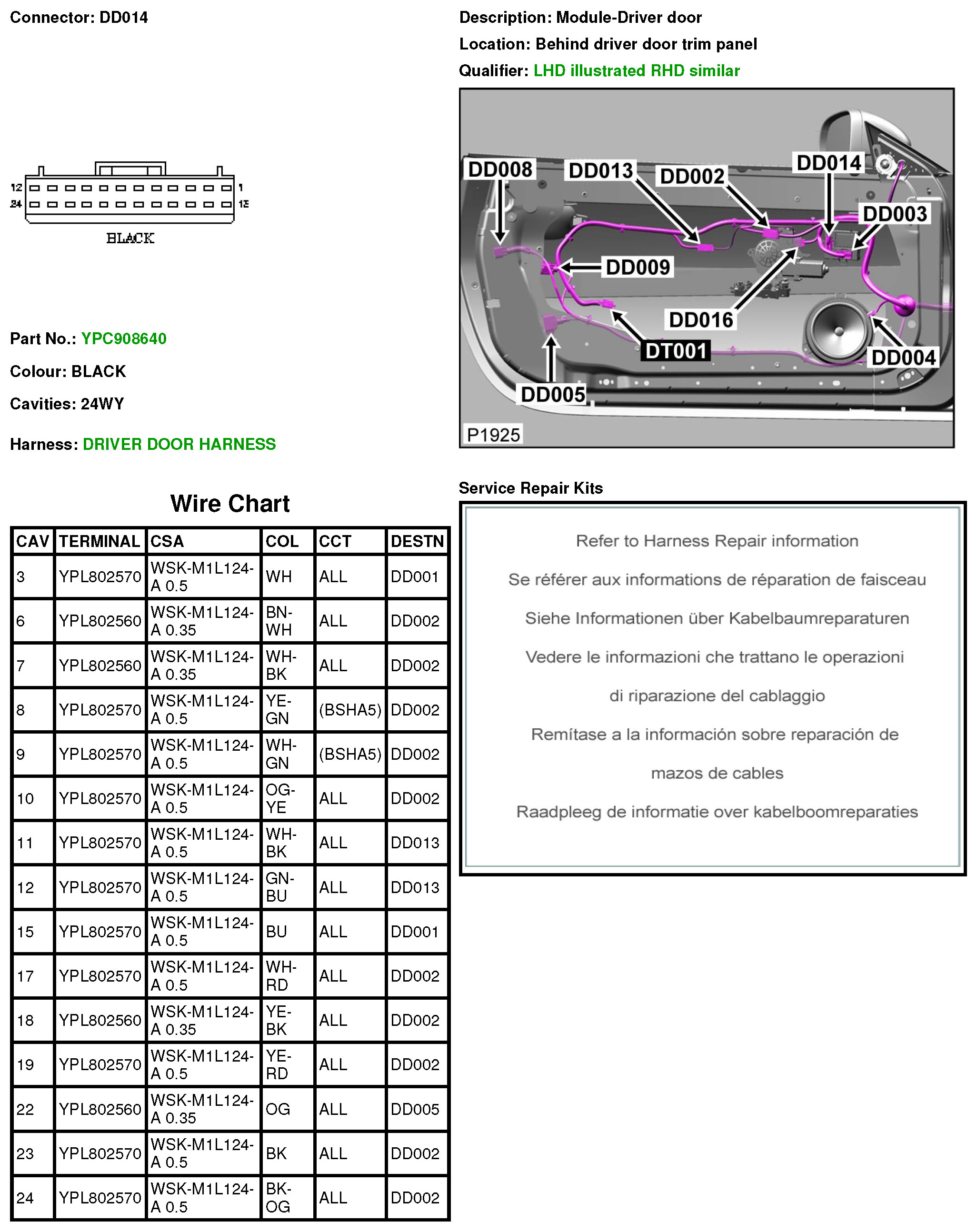

DD014 Module-Driver Door



DD014
