Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Convertible Top Control Module >> CA092 Module-Convertible Top

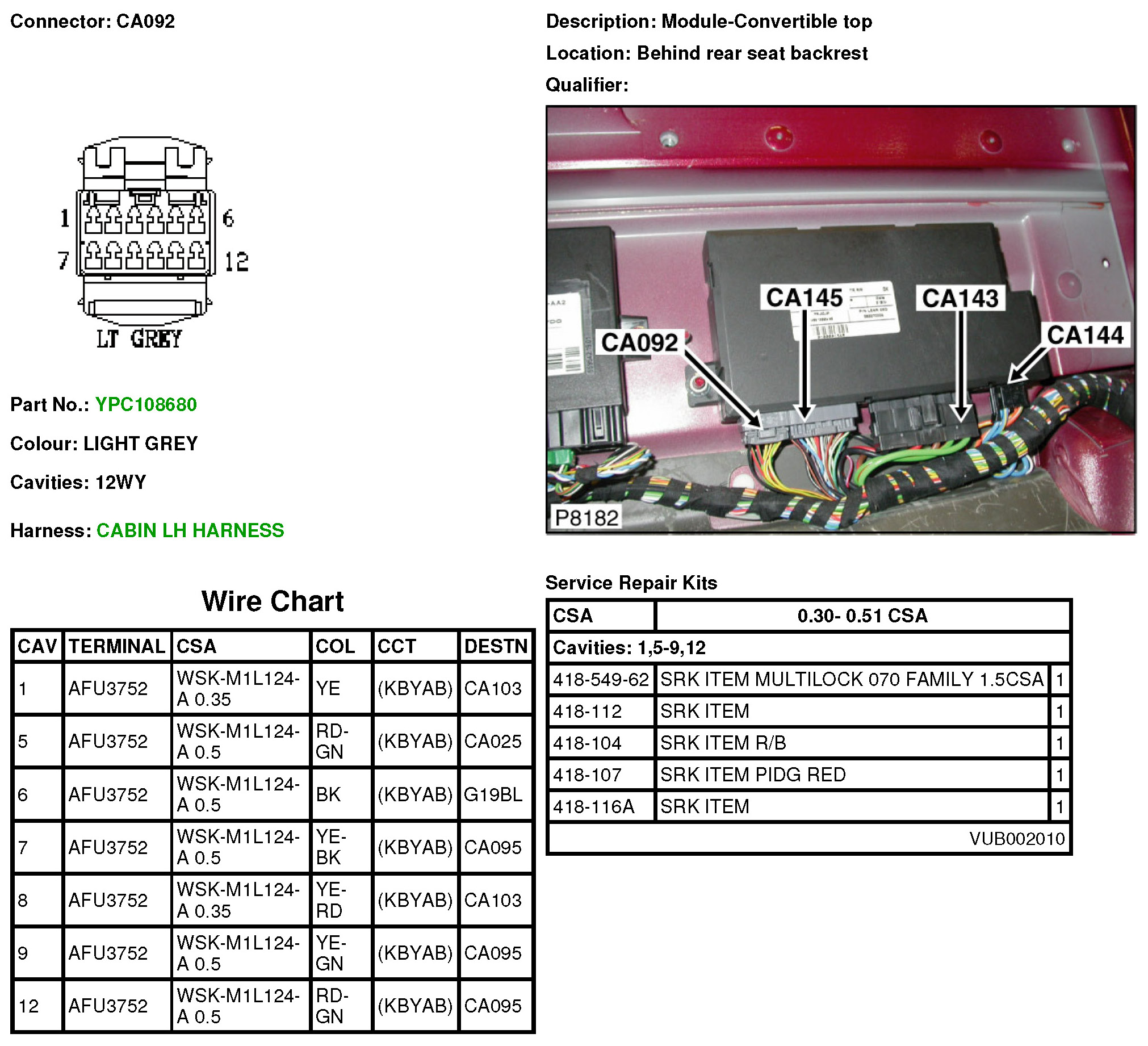

CA092 Module-Convertible Top



CA092
