Combination Switch
>>

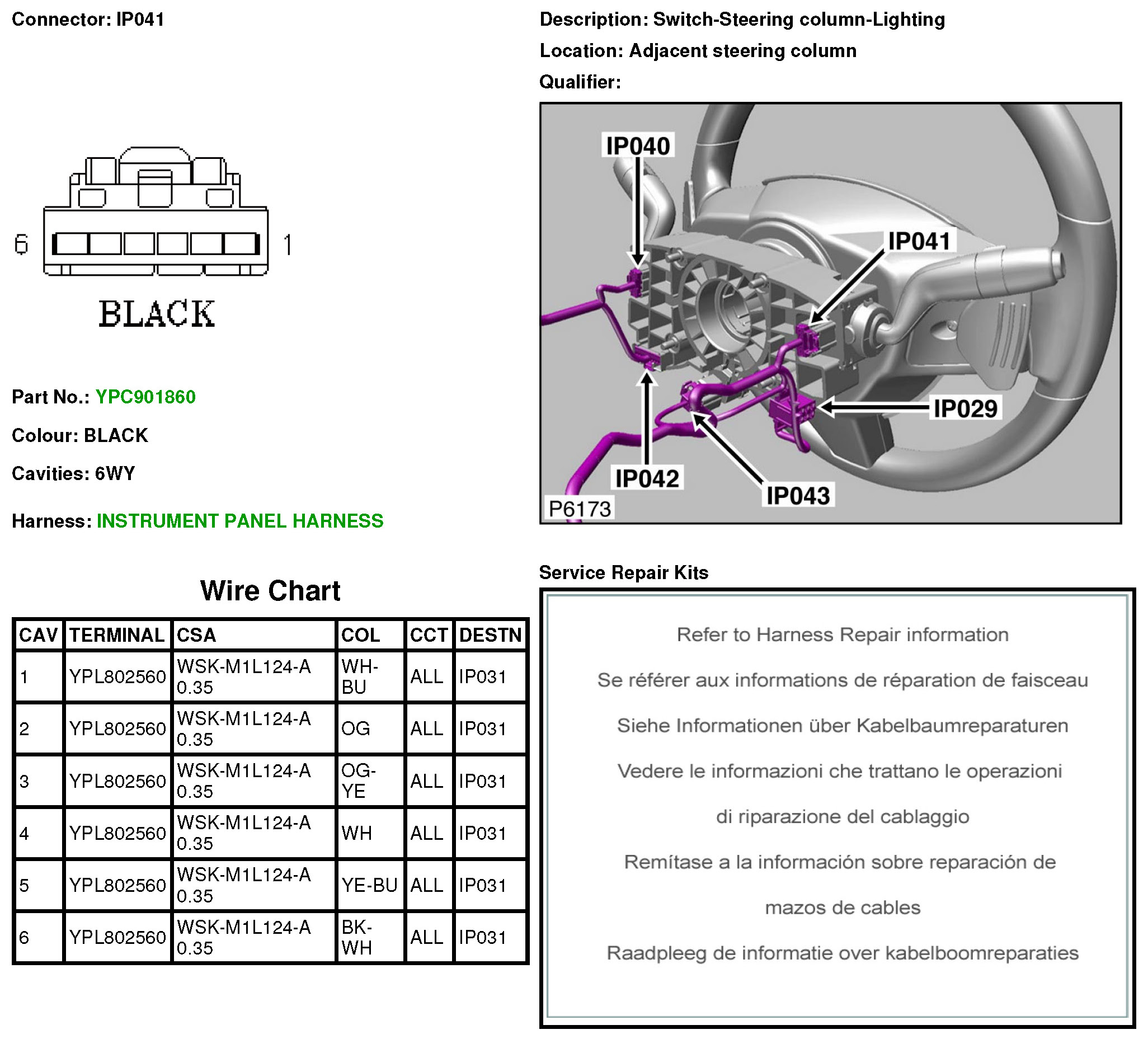

IP041 Switch-Steering Column-Lighting
IP041 Switch-Steering Column-Lighting
IP041
